Product interior

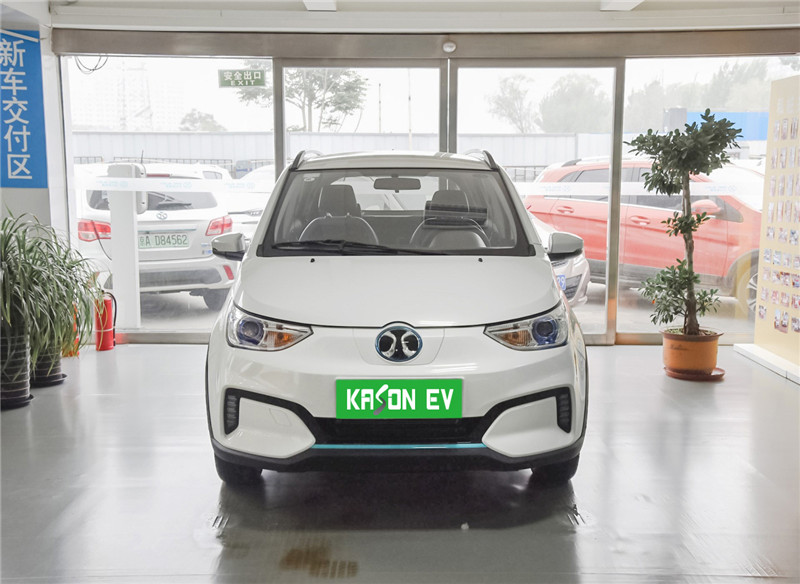

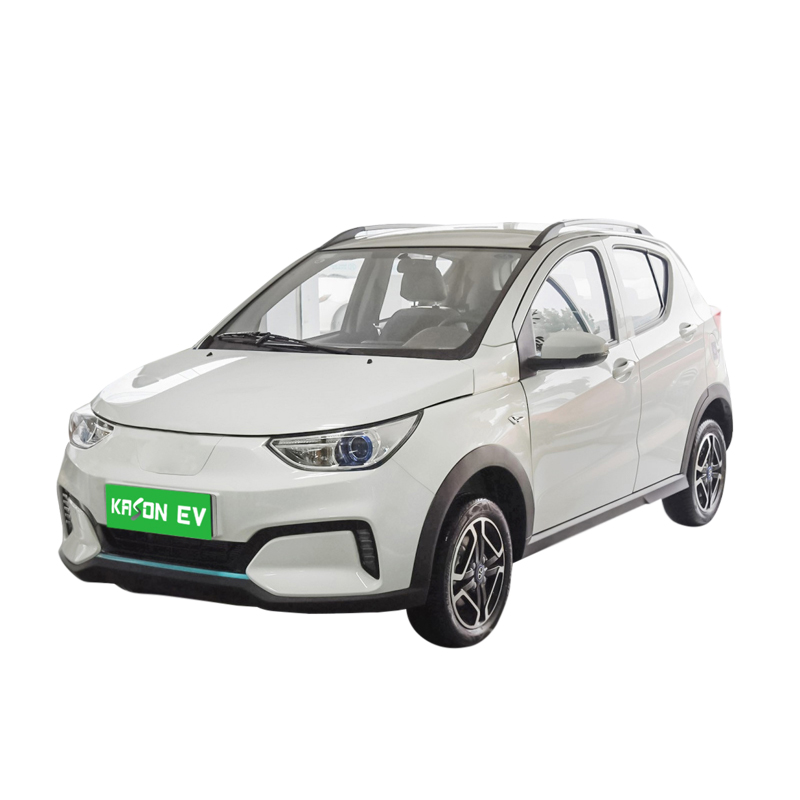

Baic NEW Energy EC3 has a new design for the appearance, urban CROSS style, with blue, white, orange, red 4 appearance colors. The lines near the LOGO in the middle of the front face are redesigned. The lines on both sides stretch out and run through the headlights, which are connected with the LED daily running lights. There are 5 vertical LED lights on both sides.

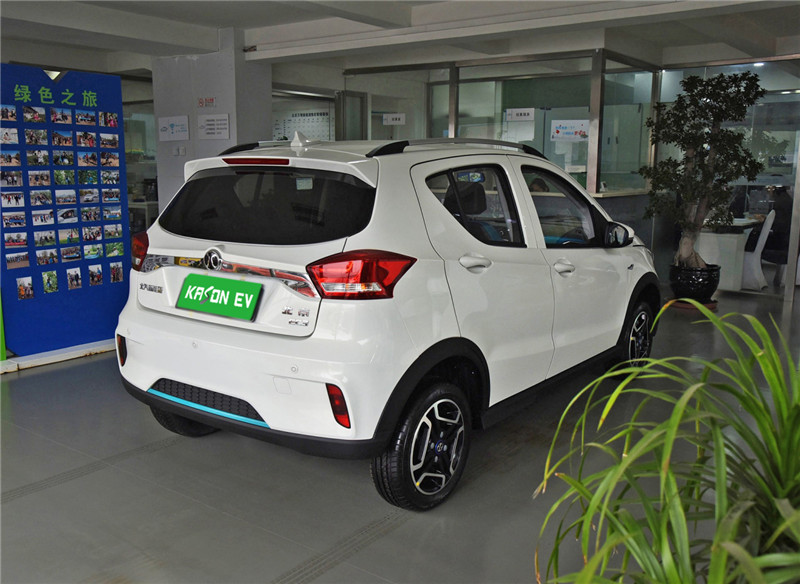

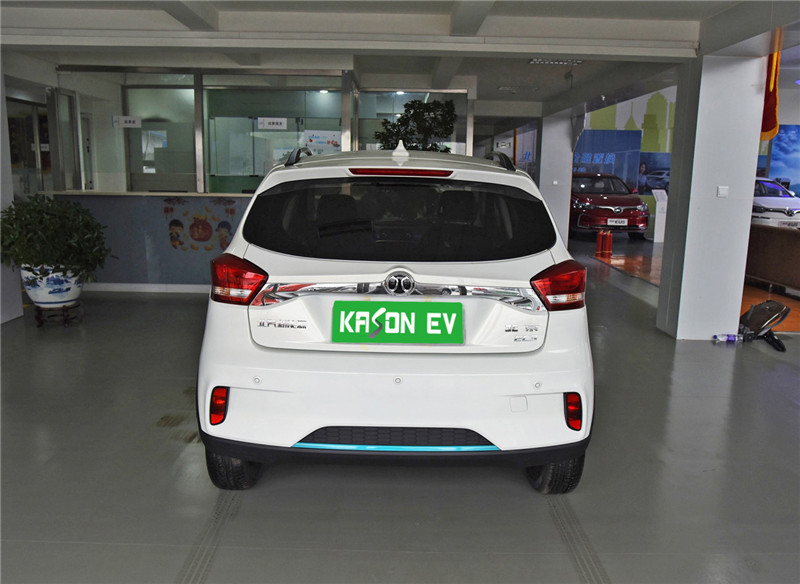

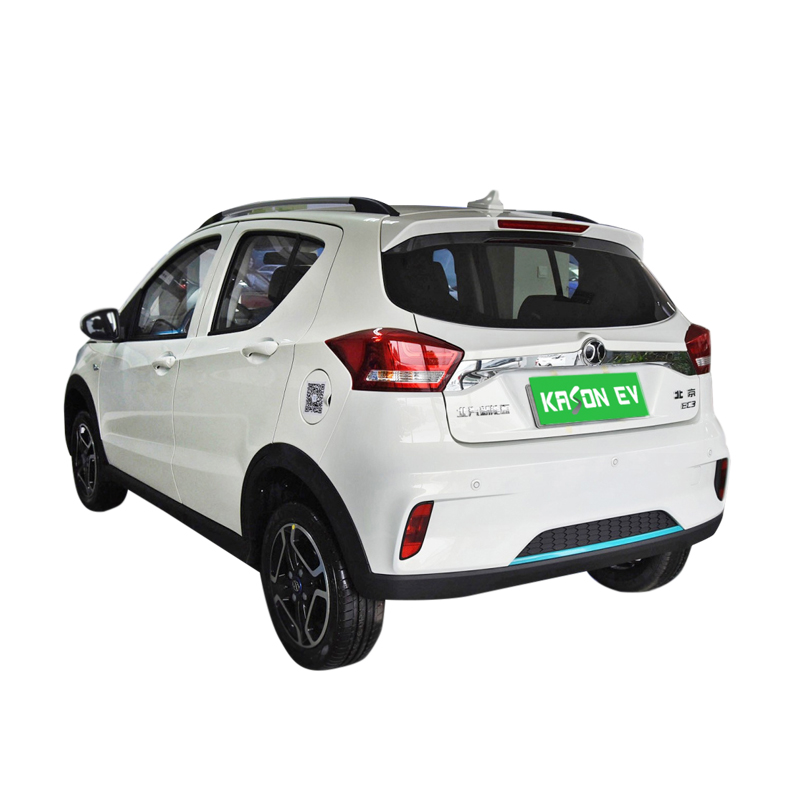

Rear radars have been increased to 3. The roof of the new design of two-color luggage rack, so that owners load luggage convenient. The length, width and height of the new car body are 3675mm*1630mm*1518mm, and the wheelbase is 2360mm, which is positioned at the micro pure electric vehicle.

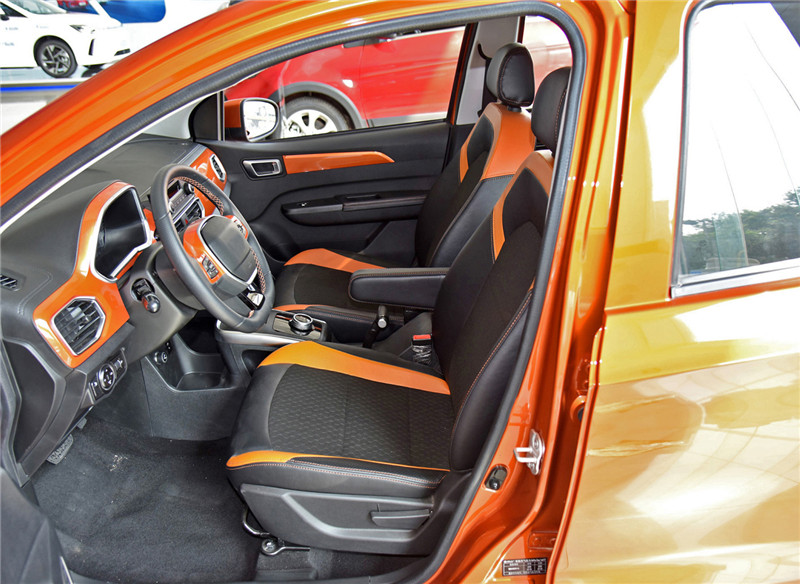

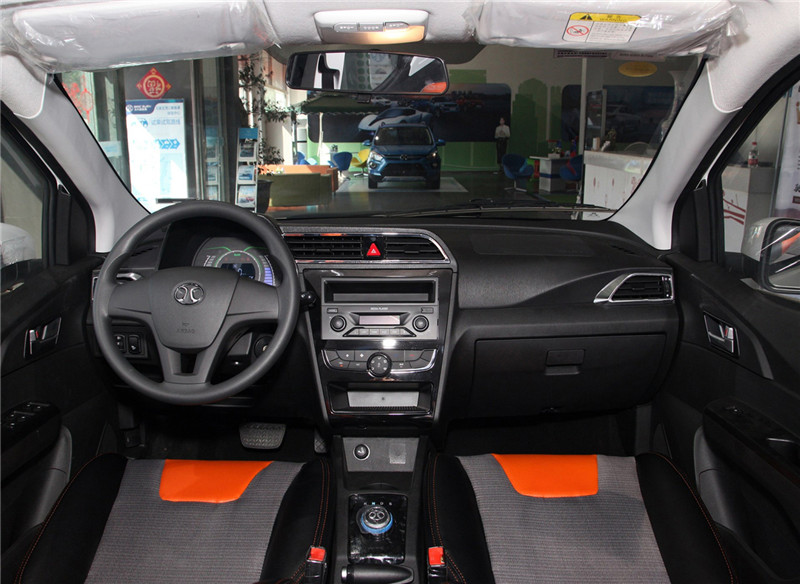

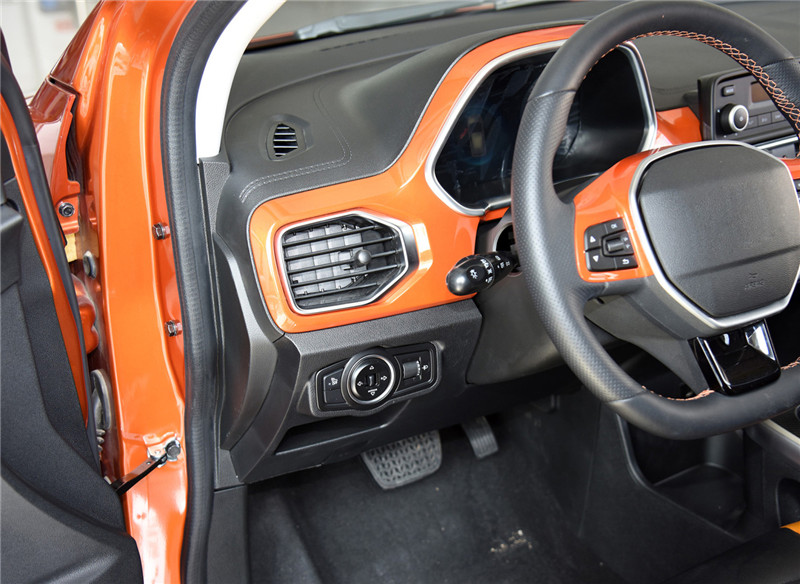

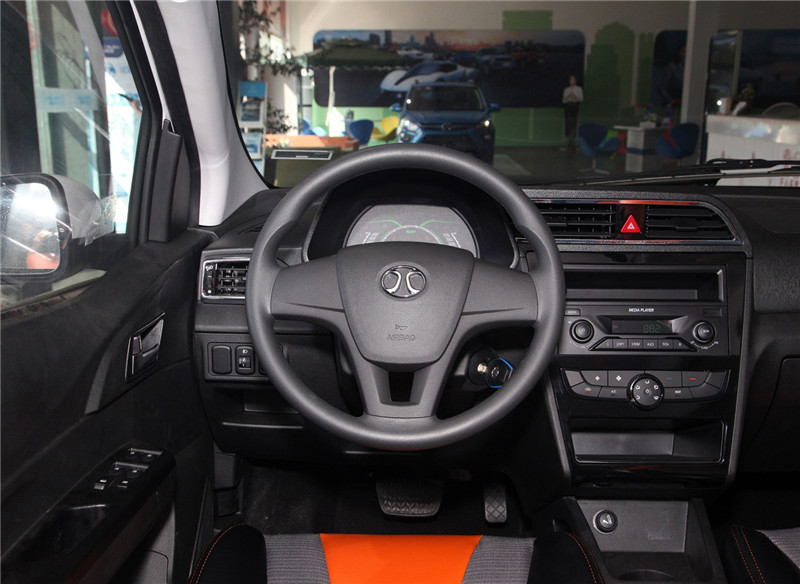

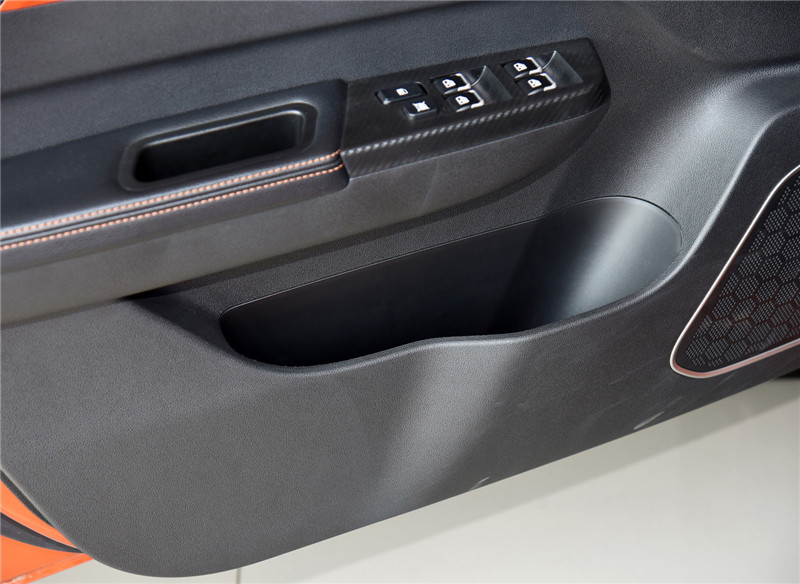

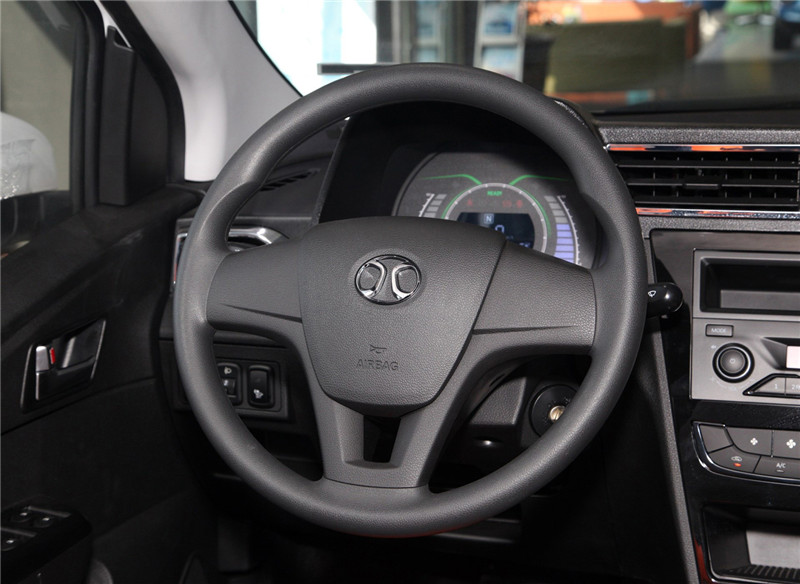

The new car's central control adopts injection molding double suture technology, the sub-instrument panel control panel, door panel switch panel are decorated with carbon fiber texture. Standard soft flat three-spoke steering wheel is wrapped with leather for comfortable grip.
Display screen: the in-car suspension 8-inch LCD central control screen integrates rich interconnection functions, and the interface is clear and smooth to fully meet the needs of users for travel, entertainment and intelligent interaction. EC3 adopts a large suspended central control screen to avoid sight down, safe control and driving.
Instrument panel: equipped with 7-inch color LCD HD digital instrument of the same level, setting menu, driving information is clear, driving without distraction due to unclear; Two sets of UI interface switch.

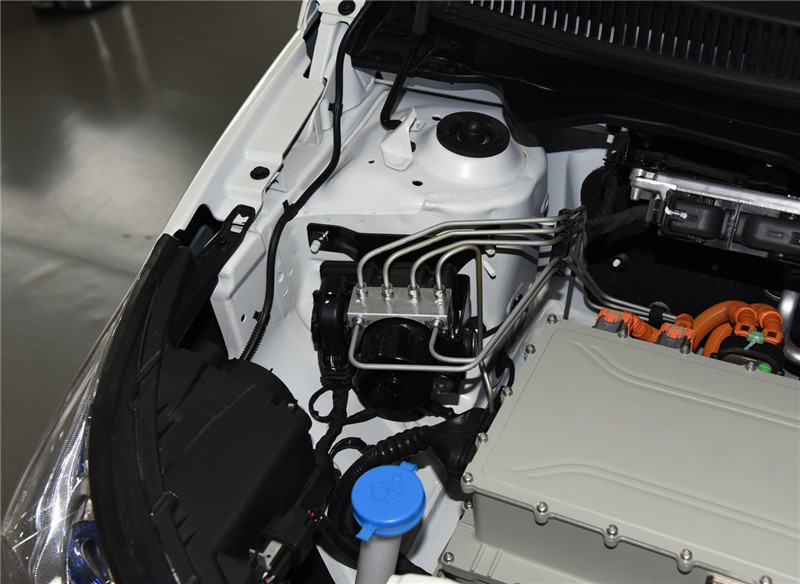

Equipped with N-Booster intelligent electronic braking system, the system can achieve 99.99% braking energy recovery, improve battery life and expand the user's travel radius.
Matching with efficient intelligent power assist, its response time is only 1/4 of the traditional power assist, and can shorten the braking distance of more than 5m in emergency situations, so that the braking is sensitive.
Battery system: EC3 is equipped with ningde Ternary lithium battery, professional battery management system independently developed by BAIC New Energy and ultra-low temperature preheating and charging technology. The comprehensive battery life of THE Ministry of Industry and Information Technology can reach 261 kilometers, and at the same time, it can start and charge normally at minus 30 degrees Celsius.

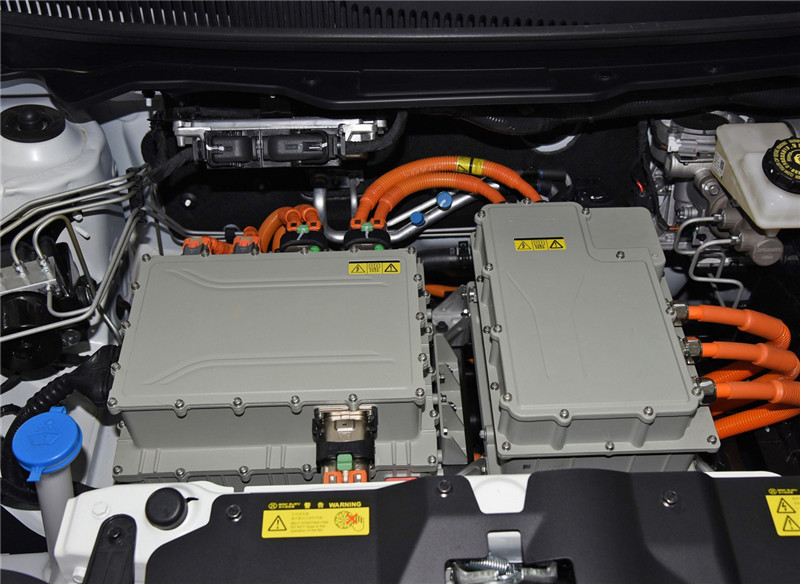

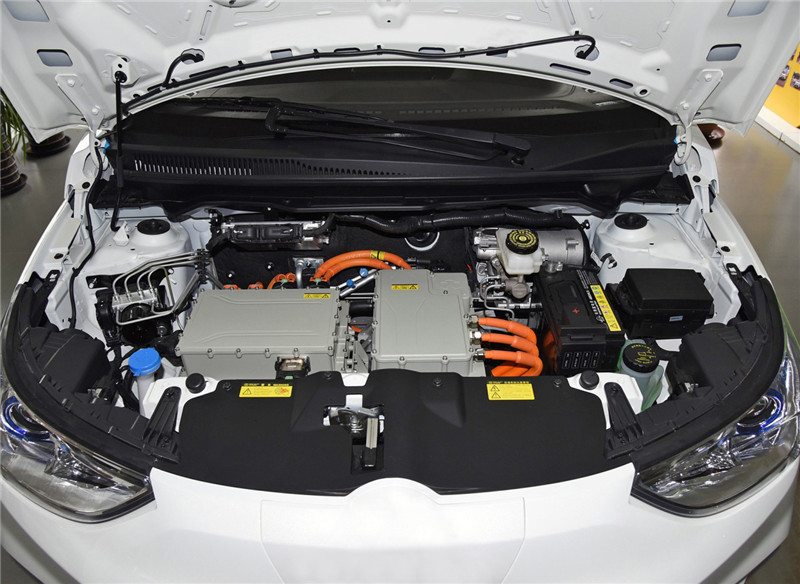

Motor system: EC3 adopts high-efficiency water-cooled motor, with better cooling performance and higher operating efficiency. 0-50km/h acceleration time is less than 5.5s, and the maximum speed can reach 120km/h.
Chassis system: EC3 is equipped with professional grade forward development of pure electric sports chassis, front and rear axle load 1:1, four wheel force is uniform, acceleration, deceleration, turning control smooth, safe, and in order to verify the strength of EC3, BAIC new energy is for its 1.97 million km long test mileage verification.
Product Specifications
| Brand | BAIC |
| Model | EC3 |
| Version | 2019 smart version |
| Basic parameters | |
| Car model | Hatch-Back |
| Type of Energy | Pure electric |
| NEDC pure electric cruising range (KM) | 301 |
| Fast charging time[h] | 0.6 |
| Fast charge capacity [%] | 80 |
| Maximum power (KW) | 45 |
| Maximum torque [Nm] | 150 |
| Motor horsepower [Ps] | 61 |
| Length*width*height (mm) | 3684*1630*1518 |
| Number of seats | 4 |
| Body structure | 5-door 4-seat Hatch-Back |
| Top Speed (KM/H) | 120 |
| Car body | |
| Longth(mm) | 3684 |
| Width(mm) | 1630 |
| Higth(mm) | 1518 |
| Wheel base(mm) | 2360 |
| Electric motor | |
| Motor type | Permanent magnet synchronization |
| Motor maximum horsepower (PS) | 61 |
| Total motor power (kw) | 45 |
| Total motor torque [Nm] | 150 |
| Front motor maximum power (kW) | 45 |
| Front motor maximum torque (Nm) | 150 |
| Drive mode | Pure electric |
| Number of drive motors | Single motor |
| Motor placement | Front |
| Battery Type | Lithium Ion Battery |
| Gearbox | |
| Number of gears | 1 |
| Transmission type | Fixed gear ratio gearbox |
| Short name | Electric vehicle single speed gearbox |
| Chassis Steer | |
| Form of drive | FF |
| Type of front suspension | McPherson independent suspension |
| Type of rear suspension | Trailing arm suspension |
| Boost type | Electric assist |
| Car body structure | Load bearing |
| Wheel braking | |
| Type of front brake | Ventilated Disc |
| Type of rear brake | Drum |
| Type of parking brake | Hand brake |
| Front Tire Specifications | 165/60 R14 |
| Rear tire specifications | 165/60 R14 |
| Cab Safety Information | |
| Primary driver airbag | YES |
| Co-pilot airbag | YES |
| ISOFIX Child seat connector | YES |
| ABS anti-lock | YES |
| Brake force distribution (EBD/CBC, etc.) | YES |
| Assist/Control configuration | |
| Rear parking radar | YES |
| Hill assist | YES |
| Aluminum alloy wheels | YES |
| Roof rack | YES |
| Interior central lock | YES |
| Key type | Remote key |
| Internal configuration | |
| Steering wheel material | Cortex |
| Steering wheel position adjustment | Up and down |
| Multifunction steering wheel | YES |
| Full LCD Dashboard | YES |
| Trip computer display function | Driving information Multimedia information |
| Seat configuration | |

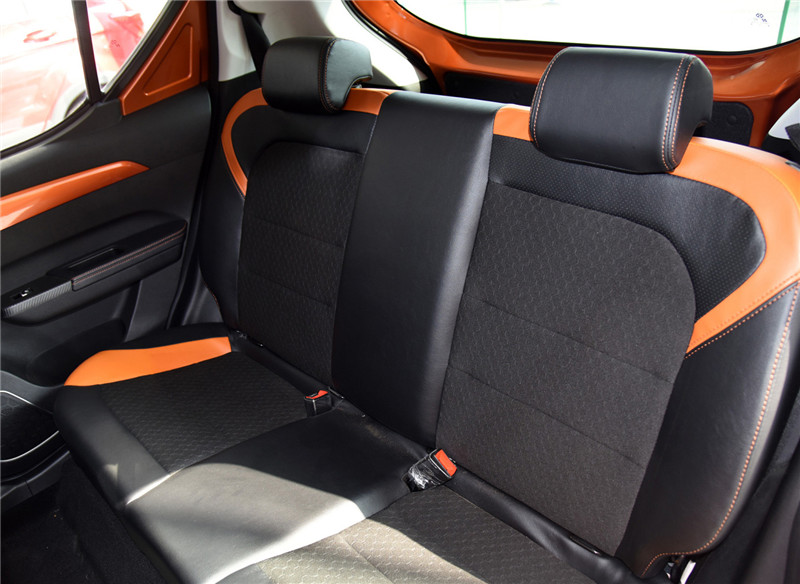

| Seat materials | Leather/fabric mix |
| Lighting configuration | |
| Low beam light source | Halogen |
| High beam light source | Halogen |
| Daytime running lights | YES |
| Headlight height adjustable | YES |
| Headlights turn off | YES |
| Glass/Rearview mirror | |
| Front power windows | YES |
| Rear power windows | YES |
| Post audition feature | Electric adjustment |
| Air conditioner/refrigerator | |
| Air conditioner temperature control method | Manual |
| Number of speakers (pcs) | 4 |
product information
The performance characteristics of Intelligent electronic braking system
Equipped with N-Booster intelligent electronic braking system, the system can achieve 99.99% braking energy recovery, improve battery life and expand the user's travel radius.
Matching with efficient intelligent power assist, its response time is only 1/4 of the traditional power assist, and can shorten the braking distance of more than 5m in emergency situations, so that the braking is sensitive.
Battery system: EC3 is equipped with ningde Ternary lithium battery, professional battery management system independently developed by BAIC New Energy and ultra-low temperature preheating and charging technology. The comprehensive battery life of THE Ministry of Industry and Information Technology can reach 261 kilometers, and at the same time, it can start and charge normally at minus 30 degrees Celsius.
Motor system: EC3 adopts high-efficiency water-cooled motor, with better cooling performance and higher operating efficiency. 0-50km/h acceleration time is less than 5.5s, and the maximum speed can reach 120km/h.
Chassis system: EC3 is equipped with professional grade forward development of pure electric sports chassis, front and rear axle load 1:1, four wheel force is uniform, acceleration, deceleration, turning control smooth, safe, and in order to verify the strength of EC3, BAIC new energy is for its 1.97 million km long test mileage verification.
