LYNK&CO 05 Coupe type new energy electric vehicle SUV

Short Description:

The dimensions of the new car are 4592*1879*1628mm, and the wheelbase is 2734mm, the same as the 01. On the side of the body, the most obvious feature of the new car is the coupe design, and the side shark gill decoration and extended lines are also very similar to 01.

Product Detail

Product Tags

Product Information

The dimensions of the new car are 4592*1879*1628mm, and the wheelbase is 2734mm, the same as the 01. On the side of the body, the most obvious feature of the new car is the coupe design, and the side shark gill decoration and extended lines are also very similar to 01.

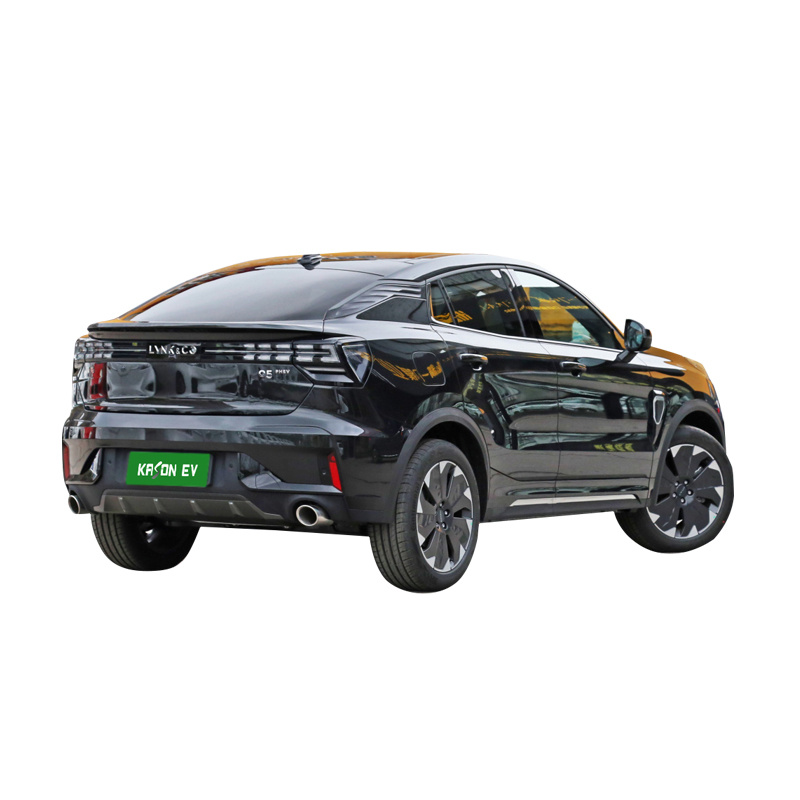

In the rear, unlike previous models, the LYNK&CO 05's new "power tank" taillight is arranged in two rows, with spoiler lines extending to both ends.

Interior, the new car adopts a new design language, different from the existing product's multi-arc rounded interior design, LYNK&CO 05 uses a large area of straight lines and prismatic lines design, layer sense is good, but at a glance there is a strong sense of patchwork, especially the central control screen seems to be a little too "isolated". In terms of materials, the new car uses a lot of suede and red stitching.

LYNK&CO 05 will feature a D-type three-spoke multi-function steering wheel and, for the first time, a high-sensitivity gesture trackpad with a newly designed electronic stick and motion shift paddles.

In terms of power, the new car will offer a 1.5-ton turbocharged engine named JLH-3G15TD and a 2.0-ton turbocharged engine named JLH-4G20TD, with maximum power of 180 HP and 190 HP, respectively. It is also expected to be equipped with a 2.0TD high-power engine from Volvo's Drive-E series, with a maximum power of 254 HP and a peak torque of 350 N · m. In terms of transmission, it is matched with the Aixin 8-speed manual transmission, and will also provide a four-wheel drive version.

Product Specifications

Model ’05
Version 2021 1.5TD PHEV HALO
Basic parameters
Car model Compact SUV
Type of Energy Plug-in hybrid
Time to Market May.2021
NEDC pure electric cruising range (KM) 81
 Fast charging time[h] 3
Maximum power (KW) 193
Maximum torque [Nm] 390
Motor horsepower [Ps] 82
Engine 1.5T 180PS L3
Gearbox 7-speed wet dual clutch
Length*width*height (mm) 4592*1879*1628
Body structure 5-door 5-seat SUV Crossover
Top Speed (KM/H) 200
NEDC Comprehensive fuel consumption (L/100km) 1.4
Car body
Longth(mm) 4592
Width(mm) 1879
Higth(mm) 1628
Wheel base(mm) 2734
Minimum ground clearance (mm) 213
Body structure SUV  Crossover
Number of doors 5
Number of seats 5
Mass (kg) 1898
Engine Model JLH-3G15TD
Displacement(mL) 1477
Displacement(L) 1.5
Intake form Turbo supercharging
Engine layout Engine transverse
Cylinder arrangement L
Number of cylinders (pcs) 3
Number of valves per cylinder (pcs) 4
Air Supply DOHC
Maximum horsepower (PS) 180
Maximum power (KW) 132
Maximum power speed (rpm) 5500
Maximum torque(N-m) 265
Maximum torque speed (rpm) 1500-4000
Maximum Net Power (kW) 132
Fuel form Plug-in hybrid
Fuel label 95#
Oil supply method Direct injection
Cylinder head material Aluminum alloy
Cylinder material Aluminum alloy
Environmental standards VI
Electric motor
Total motor power (kw) 60
System integrated power (kW) 193
Overall system torque [Nm] 390
Total motor torque [Nm] 160
Front motor maximum power (kW) 60
Front motor maximum torque (Nm) 160
Number of drive motors Single motor
Motor placement Prepended
Battery Type Ternary lithium battery
NEDC pure electric cruising range (KM) 81
Electricity consumption per 100 kilometers (kWh/100km) 17.7
Number of gears 7
Transmission type Wet Dual Clutch Transmission (DCT)
Short name 7-speed wet dual clutch
Chassis Steer
Form of drive FF
Type of front suspension McPherson independent suspension
Type of rear suspension Multi-link independent suspension
Boost type Electric assist
Car body structure Load bearing
Wheel braking
Type of front brake Ventilated Disc
Type of rear brake  Disc
Type of parking brake Electric brake
Front Tire Specifications 235/50 R19
Rear tire specifications 235/50 R19
Spare tire size Not full size
Cab Safety Information
Primary driver airbag YES
Co-pilot airbag YES
Front side airbag YES
Front head airbag (curtain) YES
Rear head airbag (curtain) YES
Tire pressure monitoring function Tire pressure display
Seat belt not fastened reminder Front row
ISOFIX Child seat connector YES
ABS anti-lock YES
Brake force distribution (EBD/CBC, etc.) YES
Brake Assist (EBA/BAS/BA, etc.) YES
Traction Control (ASR/TCS/TRC, etc.) YES
Body Stability Control (ESC/ESP/DSC, etc.) YES
Parallel Auxiliary YES
Lane Departure Warning System YES
Lane Keeping Assist YES
Road traffic sign recognition YES
Active Braking/Active Safety System YES
Fatigue driving tips YES
Assist/Control configuration
Front parking radar YES
Rear parking radar YES
Driving assistance video 360 degree panoramic image
Reversing side warning system YES
Cruise system Full speed adaptive cruise
Driving mode switching Sport/Economy/Standard Comfort
Automatic parking YES
Automatic parking YES
Hill assist YES
External / Anti-Theft Configuration
Sunroof type Openable panoramic sunroof
Rim material Aluminum alloy
Electric trunk YES
Induction trunk YES
Electric trunk position memory YES
Engine electronic immobilizer YES
Interior central lock YES
Key type Remote control key
Keyless start system YES
Keyless entry function Front row
Remote start function YES
Internal configuration
Steering wheel material Genuine Leather
Steering wheel position adjustment Manual up and down + front and rear adjustment
Multifunction steering wheel YES
Trip computer display screen  Color
Full LCD Dashboard YES
LCD meter size (inch) 12.3
HUD head up digital display YES
Built-in driving recorder YES
Active Noise Cancellation YES
Mobile phone wireless charging function Front row
Seat configuration
Seat materials  Genuine Leather
Sports style seat YES
Driver's seat adjustment Front and rear adjustment, backrest adjustment, height adjustment (2-way),lumbar support(4-way)
Co-pilot  seat adjustment Front and rear adjustment, backrest adjustment, height adjustment (4-way)
Main/assistant seat electric adjustment YES
Front seat function Heating                                              Ventilation(Driver's seat)
Power seat memory function Driver's Seat
Rear seats folded down Proportion down
Rear cup holder YES
Front/rear center armrest Front/Rear
Multimedia configuration
Central control color screen Touch OLED
Central control screen size (inch) 12.7
Satellite navigation system YES
Navigation traffic information display YES
Roadside assistance call YES
Bluetooth/Car Phone YES
Voice recognition control system Multimedia system, navigation, telephone, air conditioning, sunroof
Internet of Vehicles YES
Multimedia/charging interface USB                                                                          SD                                                                              Type-C
Number of USB/Type-c ports 2 in front/2 in rear
Luggage compartment 12V power interface YES
Speaker brand name Infinity
Number of speakers (pcs) 10
Lighting configuration
Low beam light source LED
High beam light source LED
LED daytime running lights YES
Adaptive far and near light YES
Automatic headlights YES
Turn assist light YES
Turn headlights YES
Front fog lights LED
Headlight height adjustable YES
Headlights turn off YES
Touch reading light YES
In-car ambient lighting  Colour
Glass/Rearview mirror
Front power windows YES
Rear power windows YES
Window one-button lift function Full car
Window anti-pinch function YES
Multilayer soundproof glass Front row
Post audition feature Electric adjustment, electric folding, rearview mirror memory, rearview mirror heating, automatic downturn when reversing, automatic folding after locking the car
Inside rearview mirror function Electric anti-dazzle
Rear side privacy glass YES
Interior vanity mirror Driver's seat+light
Sensor wiper function Rain sensor
Air conditioner/refrigerator
Air conditioner temperature control method Automatic air conditioner
Rear air outlet YES
Temperature zone control YES
In-car PM2.5 filter YES
