LYNK&CO 09 Smart five-seater new energy electric SUV

Short Description:

In terms of exterior design, LYNK&CO 09 adopts a new design language, its front air intake grille is a straight waterfall design, and the size is larger.

Product Detail

Product Tags

Product Information

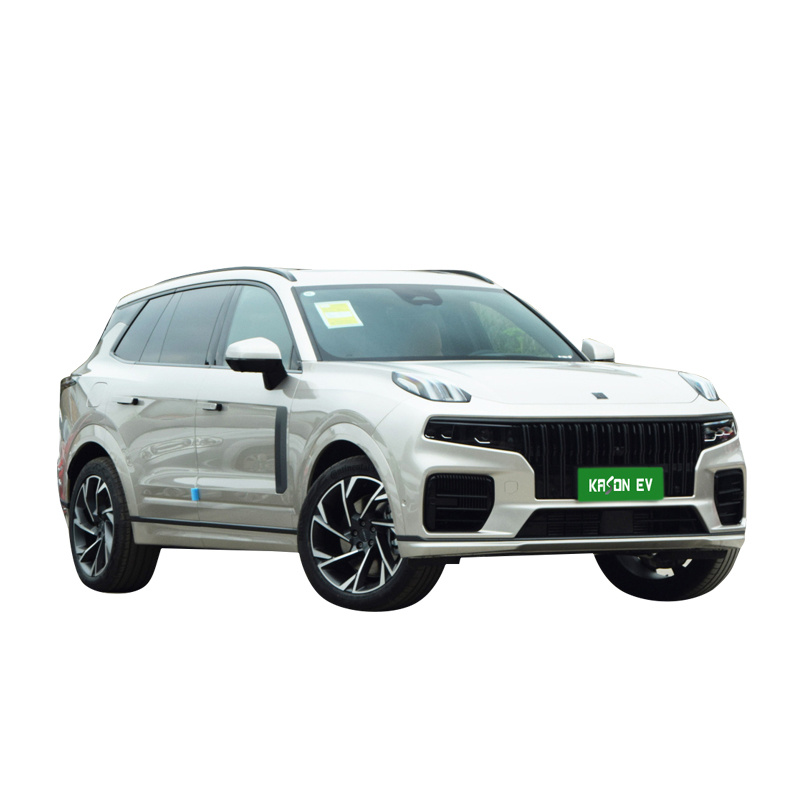

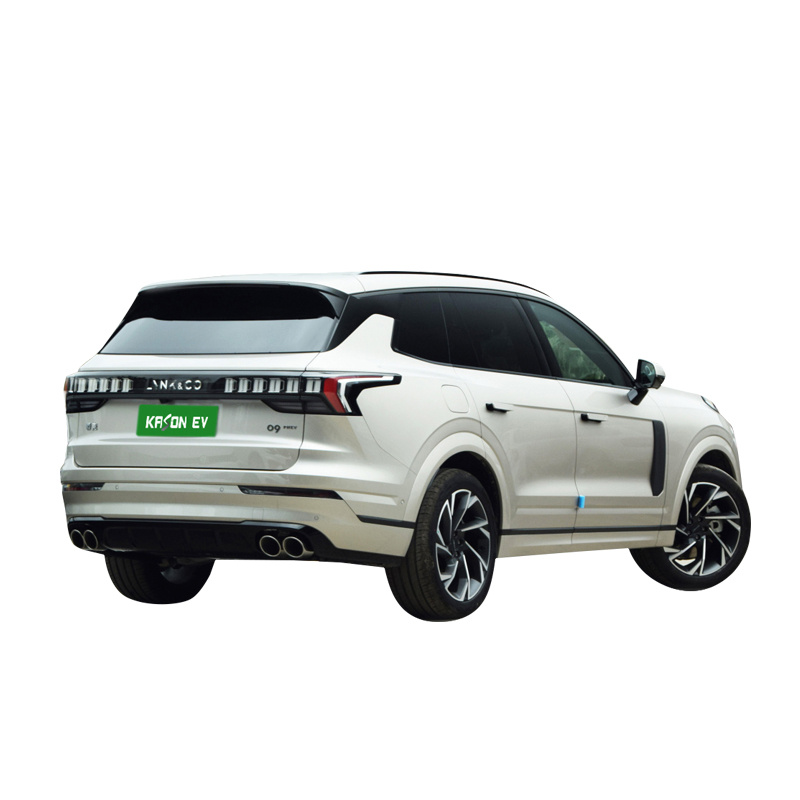

In terms of exterior design, LYNK&CO 09 adopts a new design language, its front air intake grille is a straight waterfall design, and the size is larger, the air field is more full. Compared with other models of LYNK&CO, the big light group of the new car has little change. It adopts split headlight and Northern Light LED daytime driving, which has high recognition. The side of the car retains the LYNK&CO nameplate element, the hidden door handle is integrated with the waist line, and the car is equipped with a floating roof, which also looks more grand. In terms of body size, LYNK&CO 09 is 5042/1977/1780mm in length, width and height, and 2984mm in wheelbase. It is available in six and seven seat layouts. The rear of the car uses the design of the European wing crystal taillight, with the exhaust of the two sides, it looks more fashionable and modern.

Interior, LYNK&CO 09 adopts the concept of luxury yacht cabin, cloud schema intelligent control 6 screens are divided into 12+6 inch intelligent central control screen, 12.8 inch W-HUD display, 12.3 inch LCD instrument and 2 1.4-inch LCD knob screen, which has a sense of technology and luxury.

Amenity includes Monaco NAPPA seats, aviation headrests, BOSE speakers and a fragrance system. It is worth mentioning that the LYNK&CO 09 offers a luxury upgrade package and LCP driver assistance Premium package, air suspension and active grille as options to further enrich the vehicle configuration. In addition, LYNK&CO 09 also offers space silver grille and two different wheel hubs for users to choose from.

Product Specifications

Model ’09
Version 2021 2.0T PHEV Pro 6-seater
Basic parameters
Car model Medium and large SUV
Type of Energy Plug-in hybrid
Time to Market Oct.2021
NEDC pure electric cruising range (KM) 80
Maximum power (KW) 317
Maximum torque [Nm] 659
Electric Motor(Ps) 177
Engine 2.0T 254PS L4
Gearbox 8-speed AMT
Length*width*height (mm) 5042*1977*1780
Body structure 5-door 6-seat SUV
Top Speed (KM/H) 230
Official 0-100km/h acceleration (s) 5.6
WLTC Comprehensive fuel consumption (L/100km) 2.8
Car body
Longth(mm) 5042
Width(mm) 1977
Higth(mm) 1782
Wheel base(mm) 2984
Front track (mm) 1680
Rear track (mm) 1684
Minimum ground clearance (mm) 190
Body structure SUV
Number of doors 5
Number of seats 6
Oil tank capacity(L) 50
Mass (kg) 2320
Displacement(mL) 1969
Displacement(L) 2
Intake form Turbo supercharging
Engine layout Engine transverse
Cylinder arrangement L
Number of cylinders (pcs) 4
Number of valves per cylinder (pcs) 4
Compression ratio 10.8
Air Supply DOHC
Maximum horsepower (PS) 254
Maximum power (KW) 187
Maximum power speed (rpm) 5500
Maximum torque(N-m) 350
Maximum torque speed (rpm) 1800-4800
Fuel form Plug-in hybrid
Fuel label 95#
Oil supply method Direct injection
Cylinder head material Aluminum alloy
Cylinder material Aluminum alloy
Environmental standards VI
Electric motor
Motor type Permanent magnet synchronization
Total motor power (kw) 130
Total motor torque [Nm] 309
System integrated power (kW) 317
Overall system torque [Nm] 659
Number of drive motors Single motor
Motor placement Rear
Battery Type Ternary lithium battery
NEDC pure electric cruising range (KM) 80
CLTC pure electric cruising range (KM) 60
Battery Power(kwh) 18.83
Number of gears 8
Transmission type Automatic manual transmission (AT)
Short name 8-speed AMT
Chassis Steer
Form of drive Front four-wheel drive
Four-wheel drive Electric four-wheel drive
Type of front suspension Double wishbone independent suspension
Type of rear suspension Multi-link independent suspension
Boost type Electric assist
Car body structure Load bearing
Wheel braking
Type of front brake Ventilated Disc
Type of rear brake Ventilated Disc
Type of parking brake Electric brake
Front Tire Specifications 275/45 R20
Rear tire specifications 275/45 R20
Cab Safety Information
Primary driver airbag YES
Co-pilot airbag YES
Front side airbag YES
Front head airbag (curtain) YES
Rear head airbag (curtain) YES
Tire pressure monitoring function Tire pressure display
Seat belt not fastened reminder Front row                                                                  Second row
ISOFIX Child seat connector YES
ABS anti-lock YES
Brake force distribution (EBD/CBC, etc.) YES
Brake Assist (EBA/BAS/BA, etc.) YES
Traction Control (ASR/TCS/TRC, etc.) YES
Body Stability Control (ESC/ESP/DSC, etc.) YES
Lane Departure Warning System YES
Lane Keeping Assist YES
Road traffic sign recognition YES
Active Braking/Active Safety System YES
Assist/Control configuration
Front parking radar YES
Rear parking radar YES
Driving assistance video Car side blind spot image                                             360 degree panoramic image
Cruise system Full speed adaptive cruise
Driving mode switching Sport/Economy/Standard Comfort/Off-Road
Automatic parking YES
Hill assist YES
Steep descent YES
External / Anti-Theft Configuration
Sunroof type Openable panoramic sunroof
Rim material Aluminum alloy
Electric trunk YES
Induction trunk YES
Electric trunk position memory YES
Roof rack YES
Engine electronic immobilizer YES
Interior central lock YES
Key type Remote control key                             Bluetooth key                                        NFC/RFID key
Keyless start system YES
Keyless entry function Front row
Hide electric door handle YES
Remote start function YES
Internal configuration
Steering wheel material Genuine Leather
Steering wheel position adjustment Manual up and down + front and rear adjustment
Trip computer display screen  Color
Full LCD Dashboard YES
LCD meter size (inch) 12.3
Mobile phone wireless charging function Front row
Seat configuration
Seat materials  Genuine Leather
Sports style seat YES
Driver's seat adjustment Front and rear adjustment, backrest adjustment, height adjustment (2-way)
Co-pilot  seat adjustment Front and rear adjustment, backrest adjustment, height adjustment (2-way)
Main/assistant seat electric adjustment YES
Second row seat adjustment Front and rear adjustment, backrest adjustment
Electric rear seat adjustment YES
Second row individual seats YES
Seat layout 2.-2-2
Rear seats folded down Proportion down
Rear cup holder YES
Front/rear center armrest Front/Rear
Multimedia configuration
Central control color screen Touch LCD
Central control screen size (inch) 6                                                                                   12
Satellite navigation system YES
Navigation traffic information display YES
Roadside assistance call YES
Bluetooth/Car Phone YES
Voice recognition control system Multimedia system, navigation, telephone, air conditioning, sunroof
Internet of Vehicles YES
OTA upgrade YES
Multimedia/charging interface USB                                                                                                                                                     Type-C
Number of USB/Type-c ports 3 in front/3 in rear
Luggage compartment 12V power interface YES
Number of speakers (pcs) 10
Lighting configuration
Low beam light source LED
High beam light source LED
Lighting Features Matrix
LED daytime running lights YES
Adaptive far and near light YES
Automatic headlights YES
Turn headlights YES
Headlight rain and fog mode YES
Headlight height adjustable YES
Headlights turn off YES
Touch reading light YES
Glass/Rearview mirror
Front power windows YES
Rear power windows YES
Window one-button lift function  Full car
Window anti-pinch function YES
Multilayer soundproof glass Front row
Post audition feature Electric adjustment, electric folding, rearview mirror heating,automatic folding after locking the car
Inside rearview mirror function Electric anti-dazzle
Interior vanity mirror Driver's seat+light
Rear wiper YES
Sensor wiper function Rain sensor
Air conditioner/refrigerator
Air conditioner temperature control method Automatic air conditioner
Rear air outlet YES
Temperature zone control YES
Featured configuration
180° transparent chassis system YES
