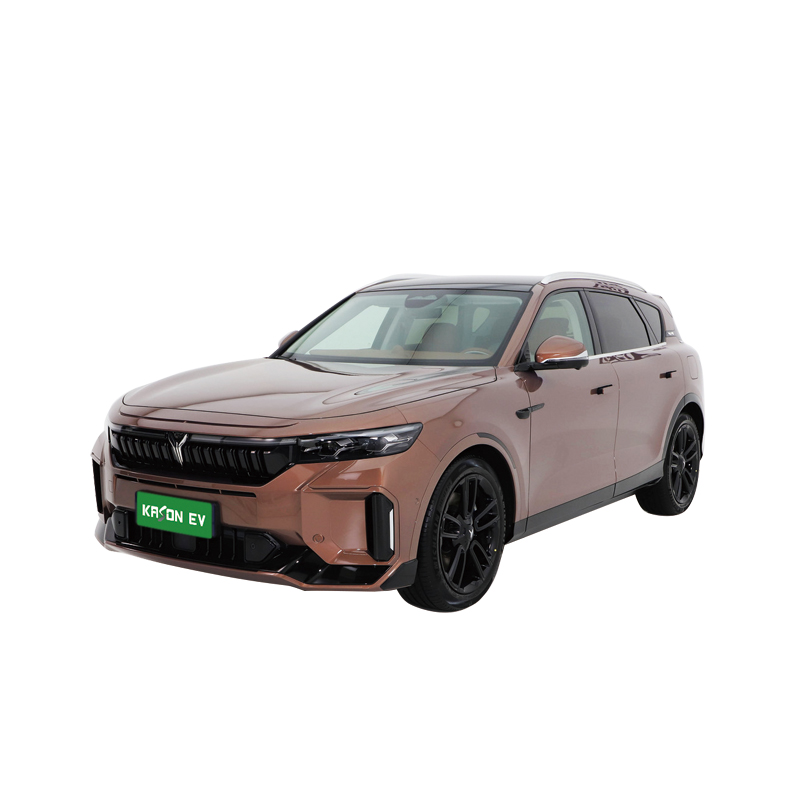

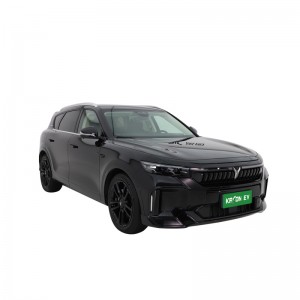

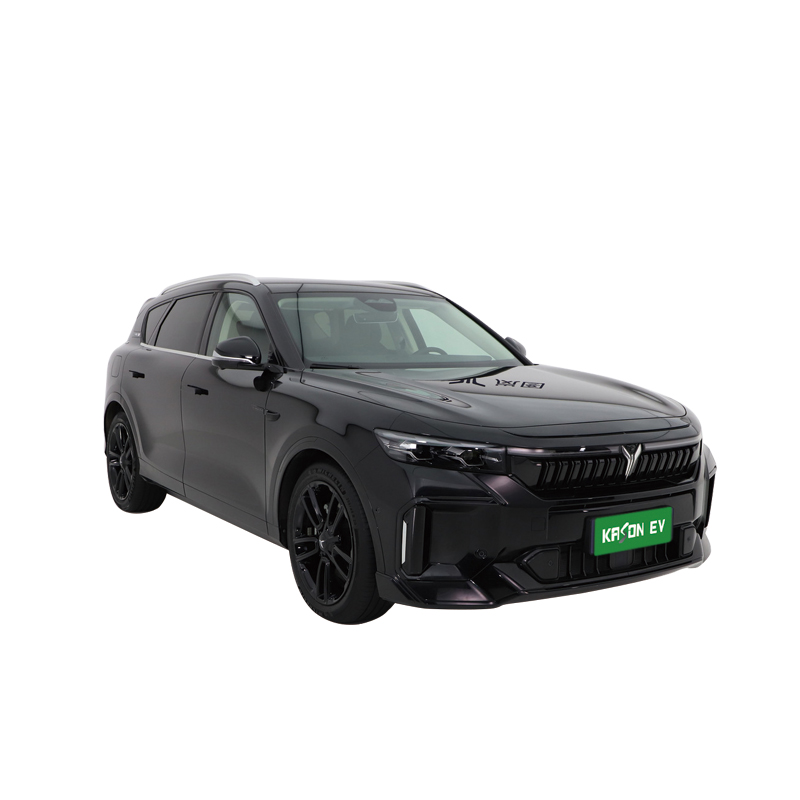

Perfect balance: aesthetics meets performance in the front
The electric SUV impresses with its broad, flat grille and delicate chrome elements, bestowing upon it a stylish presence. The distinctive VOYAH brand logo is accentuated by a diagonal bar, while the elegant LED headlights at the front add impressive accents.
Impressively proportioned: appealing design with great presence
Despite its overall length of 4.90 meters, the VOYAH FREE impresses with a sleek sideline and distinctive design highlights. The profile stands out with its flat body and elegant, shapely proportions.
An exclusive statement at the rear: a dynamic and distinctive design
The rear design of the VOYAH FREE captivates with its distinctive taillights, an elegant LED strip beneath black glass, and an aerodynamic rear spoiler. This combination gives the vehicle a dynamic and exclusive character that grabs all attention, promising an unparalleled driving experience.
| Brand | Voyah |
| Model | Free |
| Version | 2024 Ultra Long Range Intelligent Driving Edition |
| Basic parameters | |
| Car model | Medium and large SUV |
| Type of Energy | Extended range |
| Time to Market | Aug.2023 |
| WLTC pure electric cruising range (KM) | 160 |
| CLTC pure electric cruising range (KM) | 210 |
| Maximum power (KW) | 360 |
| Engine | 1.5T 150PS L4 |
| Motor horsepower [Ps] | 490 |
| Length*width*height (mm) | 4905*1950*1645 |
| Body structure | 5-door 5-seat SUV |
| Top Speed (KM/H) | 200 |
| Official 0-100km/h acceleration (s) | 4.8 |
| Mass (kg) | 2270 |
| Maximum full load mass（kg） | 2655 |
| Engine | |
| Engine model | DAM15NTDE |
| Displacement (ml) | 1499 |
| Displacement(L) | 1.5 |
| Intake form | turbocharging |
| Engine layout | L |
| Maximum horsepower (Ps) | 150 |
| Maximum power(kW) | 110 |
| Electric motor | |
| Motor type | Permanent magnet/synchronous |
| Total motor power (kw) | 360 |
| Total motor power (PS) | 490 |
| Total motor torque [Nm] | 720 |
| Front motor maximum power (kW) | 160 |
| Front motor maximum torque (Nm) | 310 |
| Rear motor maximum power (kW) | 200 |
| Rear motor maximum torque (Nm) | 410 |
| Number of drive motors | Double motor |
| Motor placement | Prepended+Rear |
| Battery Type | Ternary lithium battery |
| Battery brand | Ningde era |
| Battery cooling method | Liquid cooling |
| WLTC pure electric cruising range (KM) | 160 |
| CLTC pure electric cruising range (KM) | 210 |
| Battery Power(kwh) | 39.2 |
| Gearbox | |
| Number of gears | 1 |
| Transmission type | Fixed Ratio Transmission |
| Short name | Electric vehicle single speed gearbox |
| Chassis Steer | |
| Form of drive | Dual-motor four-wheel drive |
| Four-wheel drive | Electric four-wheel drive |
| Type of front suspension | Double wishbone independent suspension |
| Type of rear suspension | Multi-link independent suspension |
| Boost type | Electric assist |
| Car body structure | Load bearing |
| Wheel braking | |
| Type of front brake | Ventilated Disc |
| Type of rear brake | Ventilated Disc |
| Type of parking brake | Electric brake |
| Front Tire Specifications | 255/45 R20 |
| Rear tire specifications | 255/45 R20 |
| Passive Safety | |
| Main/passenger seat airbag | Main●/Sub● |
| Front/rear side airbags | Front●/Rear— |
| Front/rear head airbags (curtain airbags) | Front●/Rear● |
| Tire pressure monitoring function | ●Tire pressure display |
| Seat belt not fastened reminder | ●Front row |
| ISOFIX child seat connector | ● |
| ABS anti-lock | ● |
| Brake force distribution (EBD/CBC, etc.) | ● |
| Brake Assist (EBA/BAS/BA, etc.) | ● |
| Traction Control (ASR/TCS/TRC, etc.) | ● |
| Body Stability Control (ESC/ESP/DSC, etc.) | ● |
