Product Information

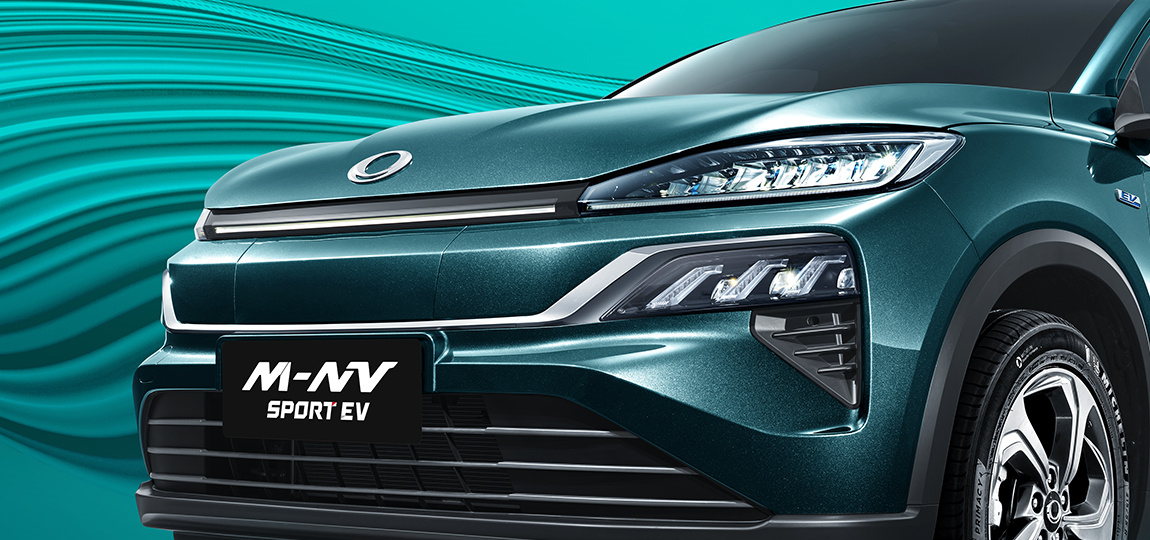

M-nv adopts the integrated streamline dynamic design, integrating the "double wings" shape after evolution, showing the dynamic and powerful readiness posture. The large closed front face design, the front cover more wedge, so that the vehicle has a better flow linear, but also highlights its electric car identity. Fully enclosed intake grille shows its unique identity, both inheritance and innovation; 18 inch hub with LED flow turn lights with position lights, day lights formed a horizontal integration of the horizontal light belt, is indeed the future full of gas field.

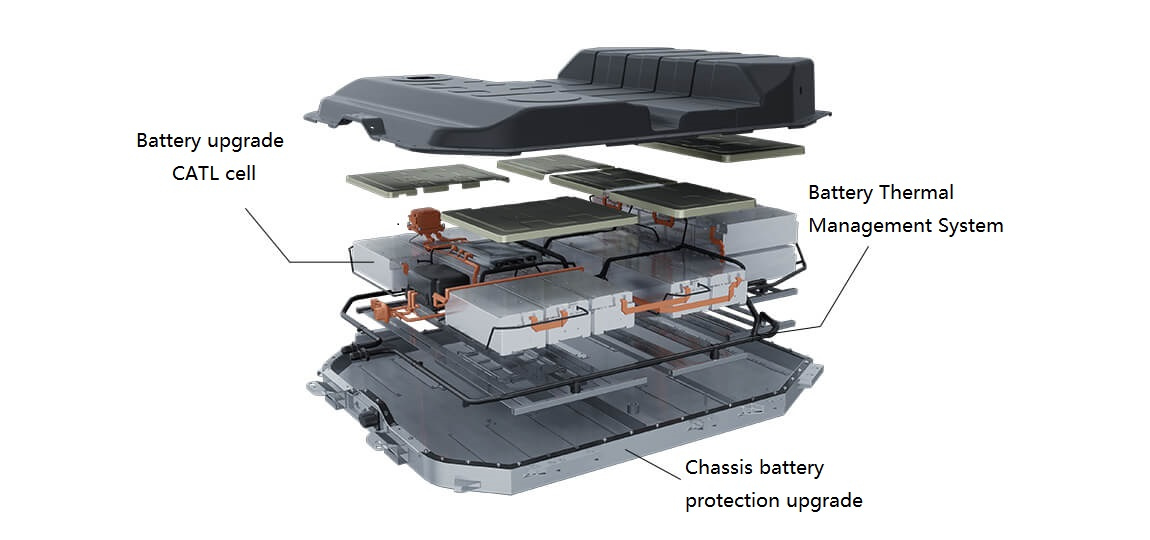

Behind the power data, hidden "warm male Honda" good intentions, is its "three electric system" security. Dongfeng Honda as a traditional car enterprise, with other new forces incomparable advantage: safety. In the battery, motor, electric control system, Honda let the feelings no longer high, add "safety" as seasoning, to bring more peace of mind to people's driving experience. The battery PACK is 1P96S. The cell is CATL177Ah. The battery energy density is 170Wh/Kg. The synchronization also optimized the battery module design, to meet the structural reliability, to achieve the role of safety protection when out of control. This means that, in addition to being faster and more economical, dongfeng Honda M-NV has another important advantage: greater safety.
Product Specifications
| Basic parameters | |
| Car model | Small SUV |
| Type of Energy | Pure electric |
| NEDC pure electric cruising range (KM) | 480 |
| Fast charging time[h] | 0.5 |
| Fast charge capacity [%] | 80 |
| Slow charging time[h] | 9.0 |
| Maximum power (KW) | 120 |
| Maximum torque [Nm] | 280 |
| Motor horsepower [Ps] | 163 |
| Length*width*height (mm) | 4324*1785*1637 |
| Body structure | 5-door 5-seat Suv |
| Top Speed (KM/H) | 140 |
| Car body | |
| Longth(mm) | 4324 |
| Width(mm) | 1785 |
| Higth(mm) | 1637 |
| Wheel base(mm) | 2610 |
| Front track (mm) | 1535 |
| Rear track (mm) | 1540 |
| Body structure | SUV |
| Number of doors | 5 |
| Number of seats | 5 |
| Mass (kg) | 1575/1610 |
| Electric motor | |
| Motor type | Permanent magnet synchronization |
| Total motor power (kw) | 120 |
| Total motor torque [Nm] | 280 |
| Front motor maximum power (kW) | 120 |
| Front motor maximum torque (Nm) | 280 |
| Number of drive motors | Single motor |
| Motor placement | Prepended |
| Battery Type | Ternary lithium battery |
| NEDC pure electric cruising range (KM) | 480 |
| Battery Power(kwh) | 61.3 |
| Electricity consumption per 100 kilometers (kWh/100km) | 13.7 |
| Gearbox | |
| Number of gears | 1 |
| Transmission type | Fixed gear ratio gearbox |
| Short name | Electric vehicle single speed gearbox |
| Chassis Steer | |
| Form of drive | FF |
| Type of front suspension | McPherson independent suspension |
| Type of rear suspension | Torsion beam dependent suspension |
| Boost type | Electric assist |
| Car body structure | Load bearing |
| Wheel braking | |
| Type of front brake | Ventilated Disc |
| Type of rear brake | Disc |
| Type of parking brake | Electronic brake |
| Front Tire Specifications | 215/55 R18 |
| Rear tire specifications | 215/55 R18 |
| Spare tire size | Not full size |
| Cab Safety Information | |
| Primary driver airbag | YES |
| Co-pilot airbag | YES |
| Front side airbag | YES |
| Front head airbag (curtain) | YES |
| Rear head airbag (curtain) | YES |
| Tire pressure monitoring function | Tire pressure alarm |
| Seat belt not fastened reminder | Front row |
| ISOFIX Child seat connector | YES |
| ABS anti-lock | YES |
| Brake force distribution (EBD/CBC, etc.) | YES |
| Brake Assist (EBA/BAS/BA, etc.) | YES |
| Traction Control (ASR/TCS/TRC, etc.) | YES |
| Body Stability Control (ESC/ESP/DSC, etc.) | YES |
| Assist/Control configuration | |
| Rear parking radar | YES |
| Driving assistance video | Reverse image |
| Cruise system | Cruise control |
| Driving mode switching | Economy Standard Comfort |
| Automatic parking | YES |
| Hill assist | YES |
| External / Anti-Theft Configuration | |

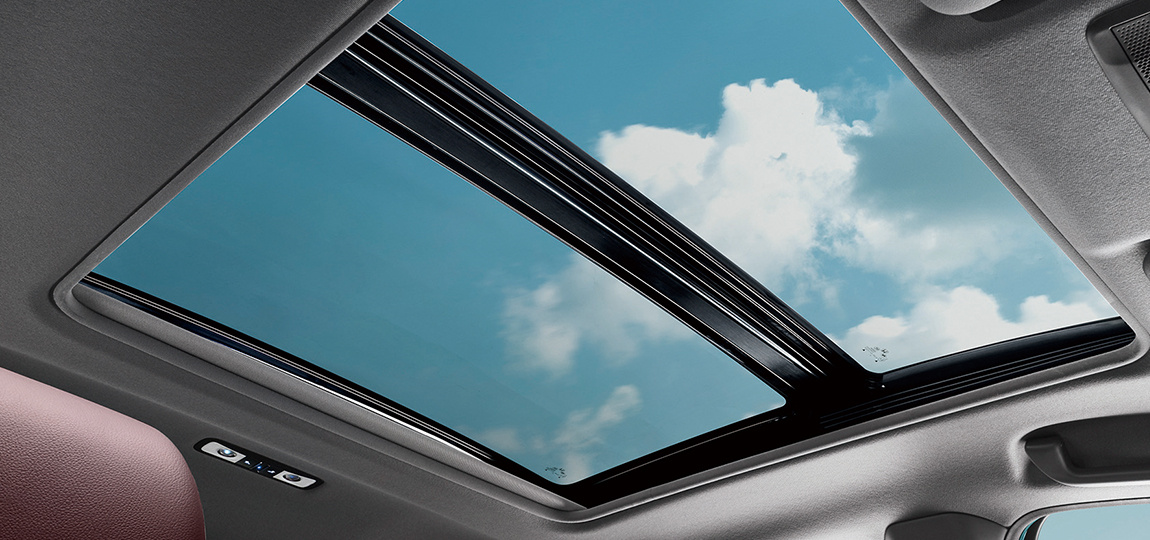

| Sunroof type | ~/Openable panoramic sunroof |
| Rim material | Aluminum alloy |
| Roof rack | ~/YES |
| Interior central lock | YES |
| Key type | Remote key |
| Keyless start system | YES |
| Keyless entry function | Front |
| Internal configuration | |
| Steering wheel material | Corium |
| Steering wheel position adjustment | Manual up and down + front and rear adjustment |
| Multifunction steering wheel | YES |
| Trip computer display screen | Color |

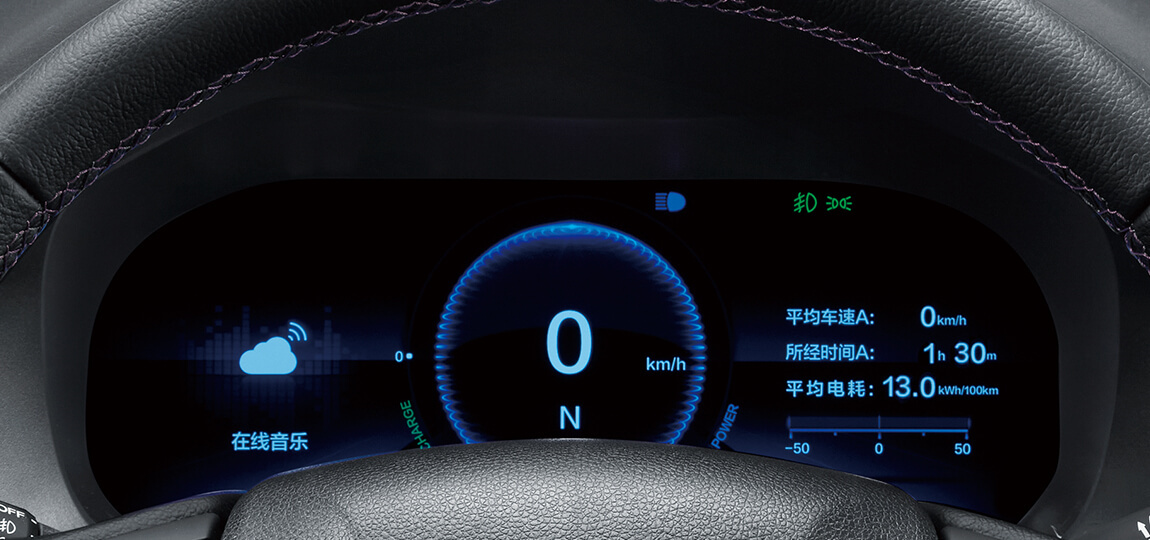

| Full LCD Dashboard | YES |
| LCD meter size (inch) | 12.3 |

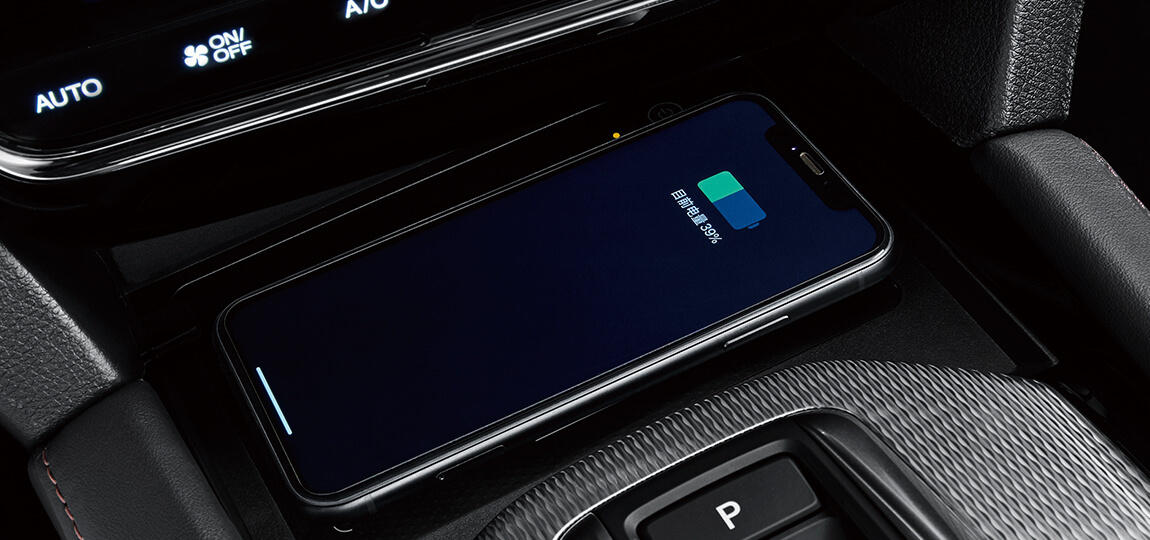

| Mobile phone wireless charging function | ~/Front row |
| Seat configuration | |
| Seat materials | Iimitation leather |
| Driver's seat adjustment | Front and rear adjustment, backrest adjustment, height adjustment (2-way) |
| Co-pilot seat adjustment | Front and rear adjustment, backrest adjustment |
| Rear seats folded down | Proportion down |
| Front/rear center armrest | Front/rear |
| Multimedia configuration | |
| Central control color screen | Touch LCD |
| Central control screen size (inch) | 8 |
| Satellite navigation system | YES |
| Navigation traffic information display | YES |
| Bluetooth/Car Phone | YES |
| Mobile phone interconnection/mapping | Support CarLife |
| Voice recognition control system | ~/Multimedia system, navigation, telephone |
| Internet of Vehicles | YES |
| Multimedia/charging interface | USB |
| Number of USB/Type-c ports | 2 in front |
| Luggage compartment 12V power interface | YES |
| Number of speakers (pcs) | 6 |
| Lighting configuration | |
| Low beam light source | LED |
| High beam light source | LED |
| LED daytime running lights | YES |
| Automatic lamp head | YES |
| Front fog lights | LED |
| Headlight height adjustable | YES |
| Headlights turn off | YES |
| Glass/Rearview mirror | |
| Front power windows | YES |
| Rear power windows | YES |
| Window one-button lift function | Driver seat |
| Window anti-pinch function | YES |
| Post audition feature | Electric adjustment, heated mirrors/Electric adjustment, electric folding, heated mirrors |
| Inside rearview mirror function | Manual anti-dazzle |
| Interior vanity mirror | Driver's seat+flashlight/Co-pilot+flashlight |
| Rear wiper | YES |
| Air conditioner/refrigerator | |
| Air conditioner temperature control method | Automatic air conditioner |
