The Letin Mango is a pure electric mini car

Short Description:

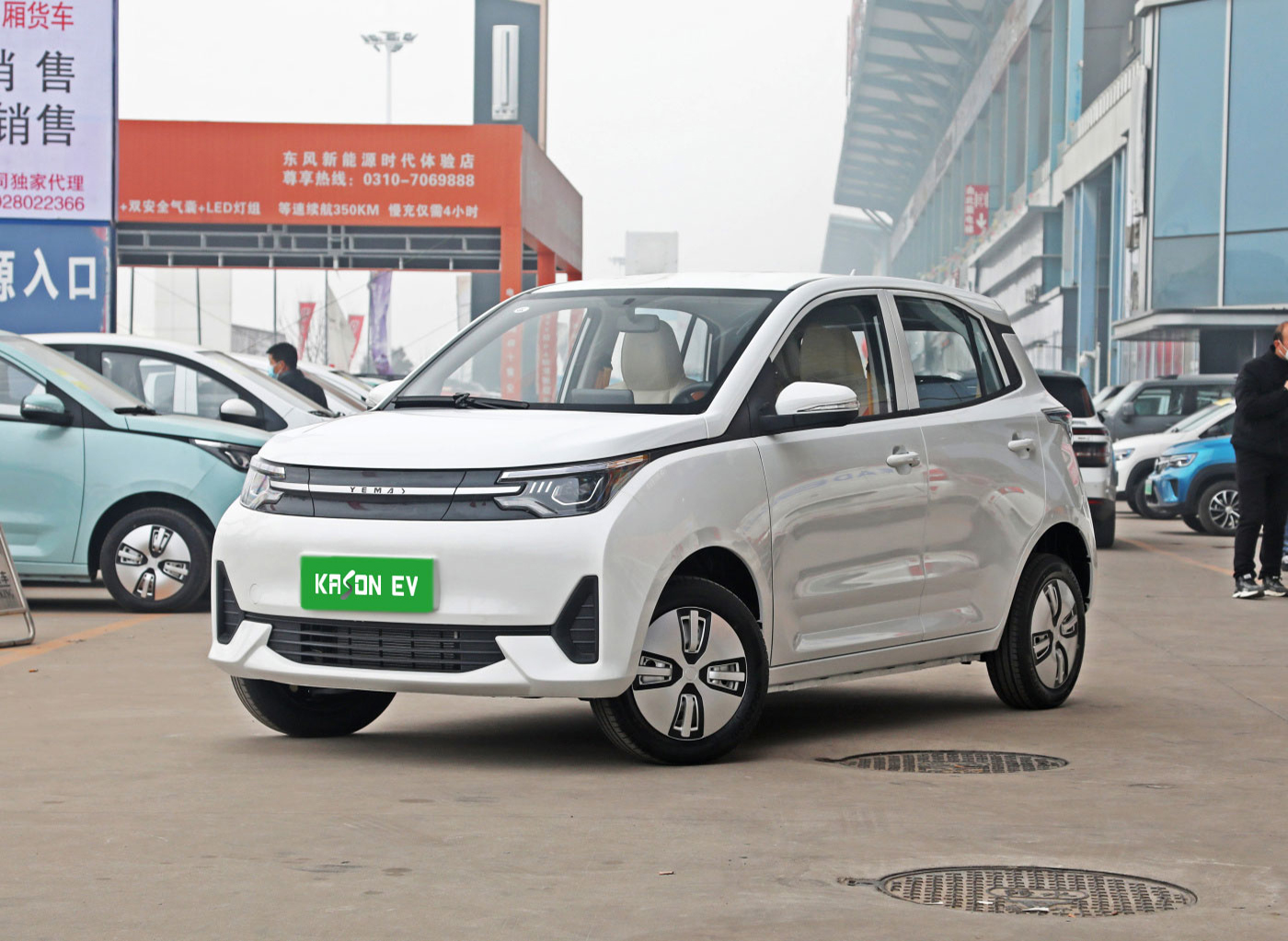

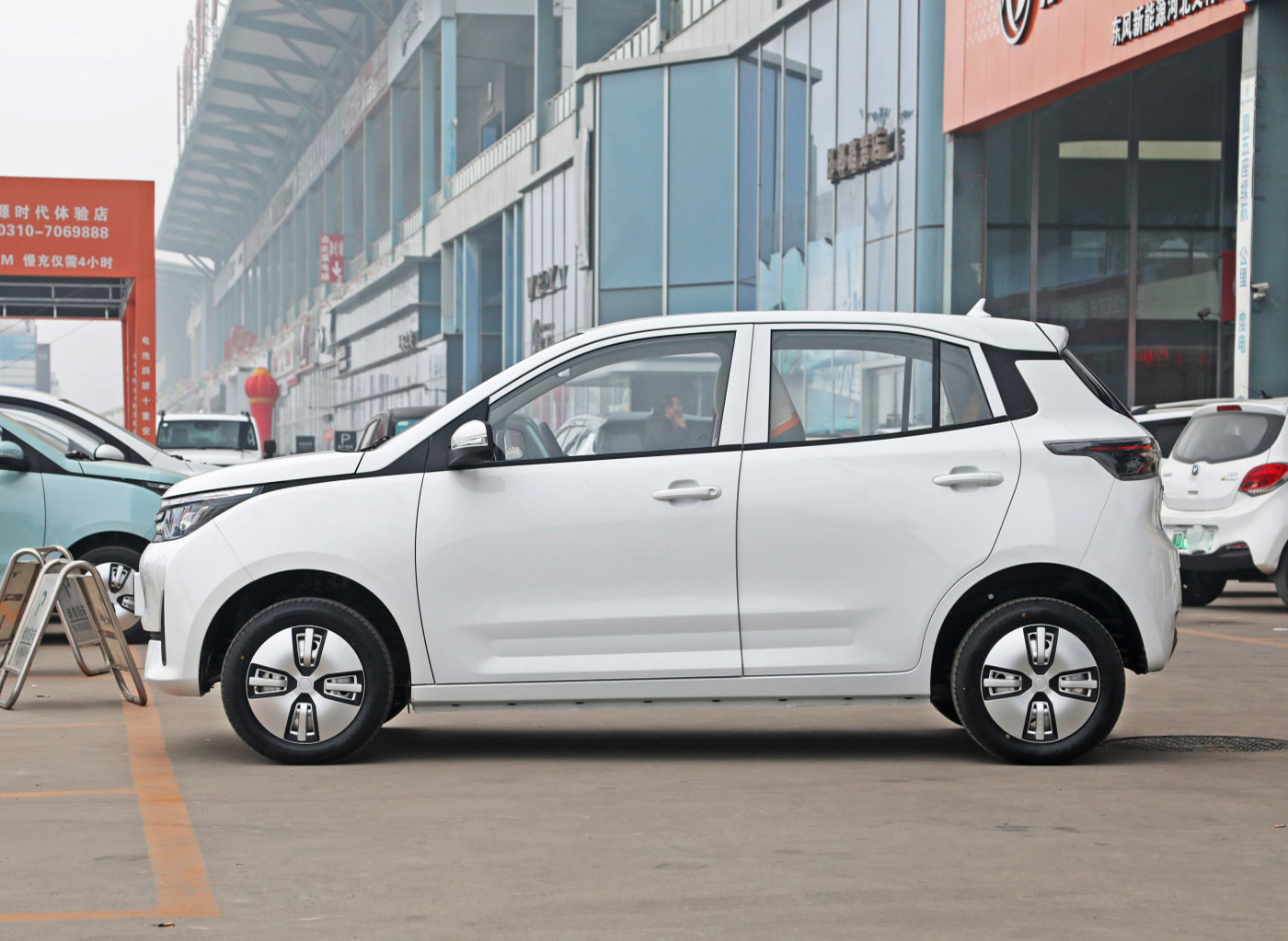

On the side of the body, the new car adopts a similar small box shape, which makes daily parking more convenient. At the same time, thanks to the flat roof design, it can provide sufficient head space to a certain extent, so that passengers in the car are more comfortable.


Product Detail

Product Tags

Product Information

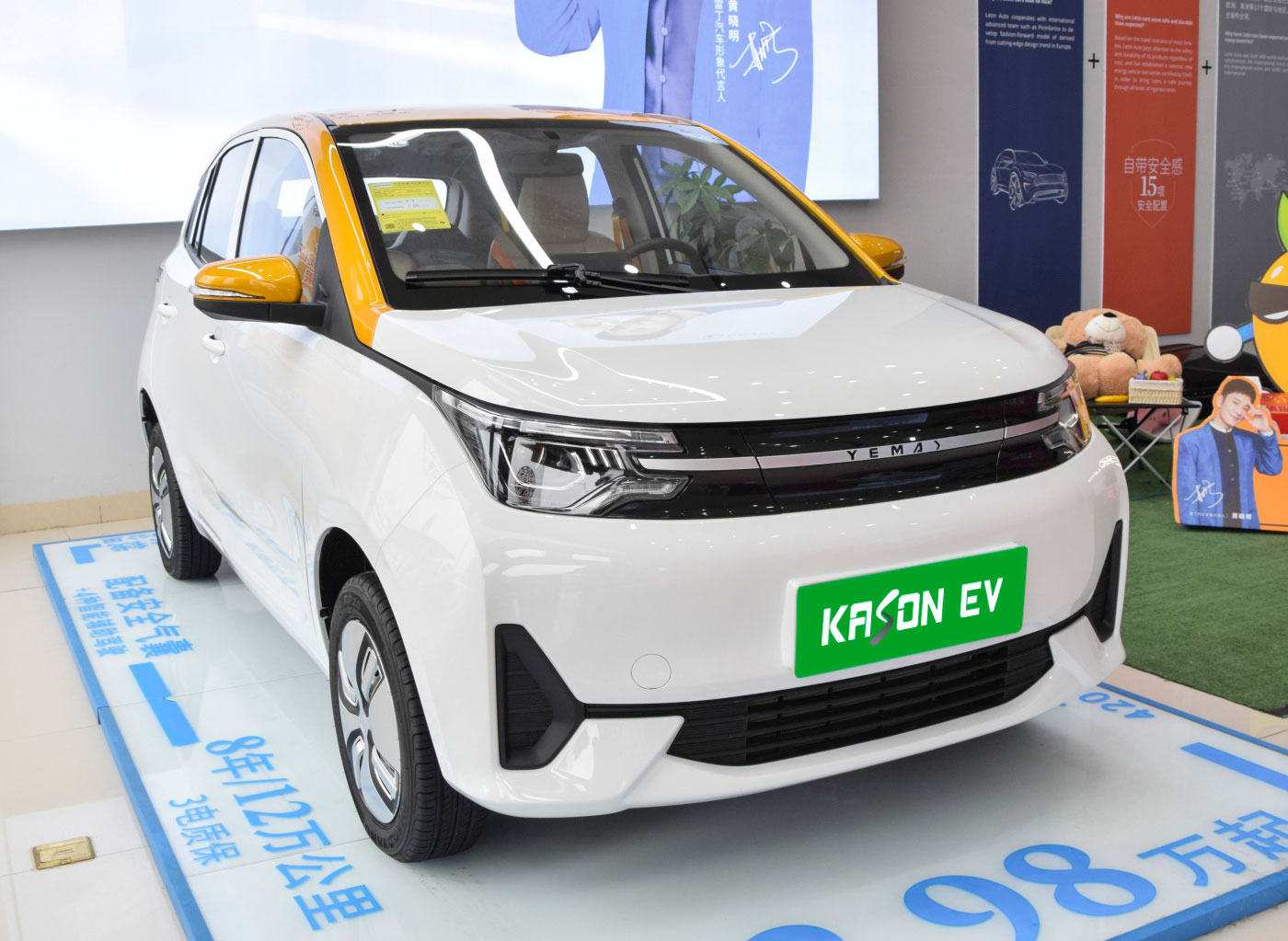

In terms of appearance, there are three colors available: yellow, green and pink. The highly saturated body painting and the same color riffle make the new car look very fashionable. On the side of the body, the new car adopts a similar small box shape, which makes daily parking more convenient. At the same time, thanks to the flat roof design, it can provide sufficient head space to a certain extent, so that passengers in the car are more comfortable. Reading Mango is a pure electric minicar positioned at five doors and four seats. The length, width and height of the new car are 3622/1607/1525mm, and the wheelbase is 2442mm.

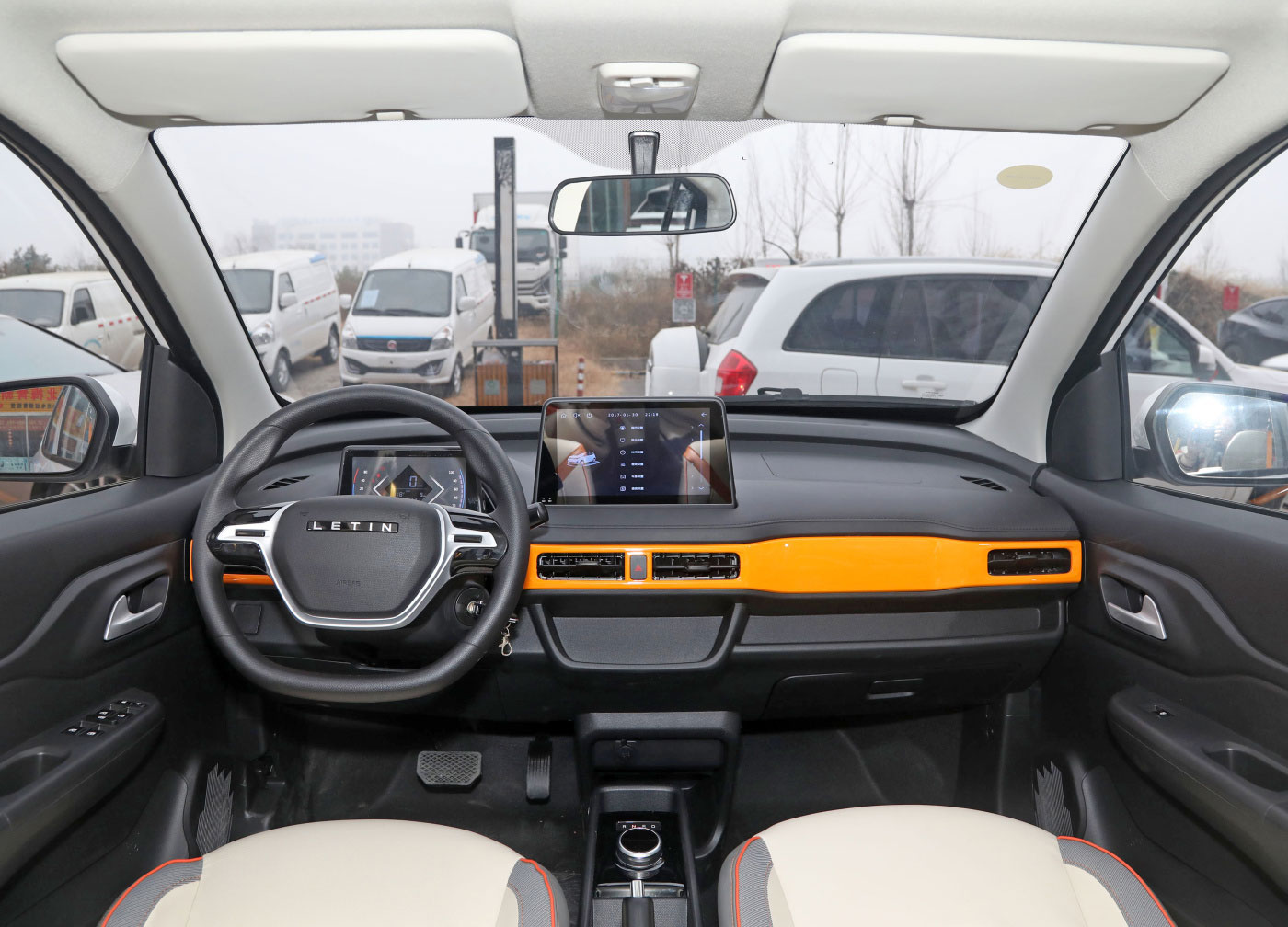

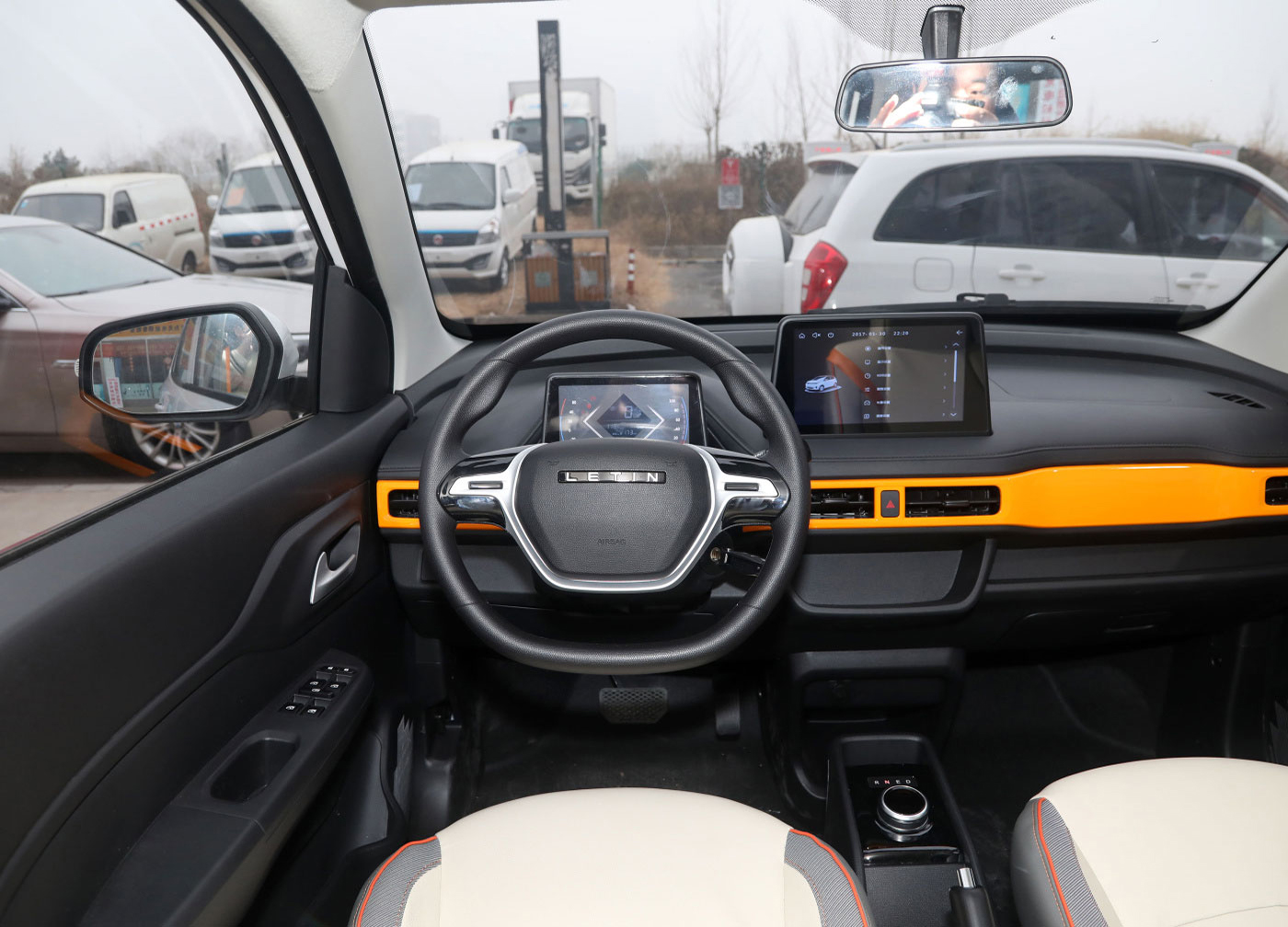

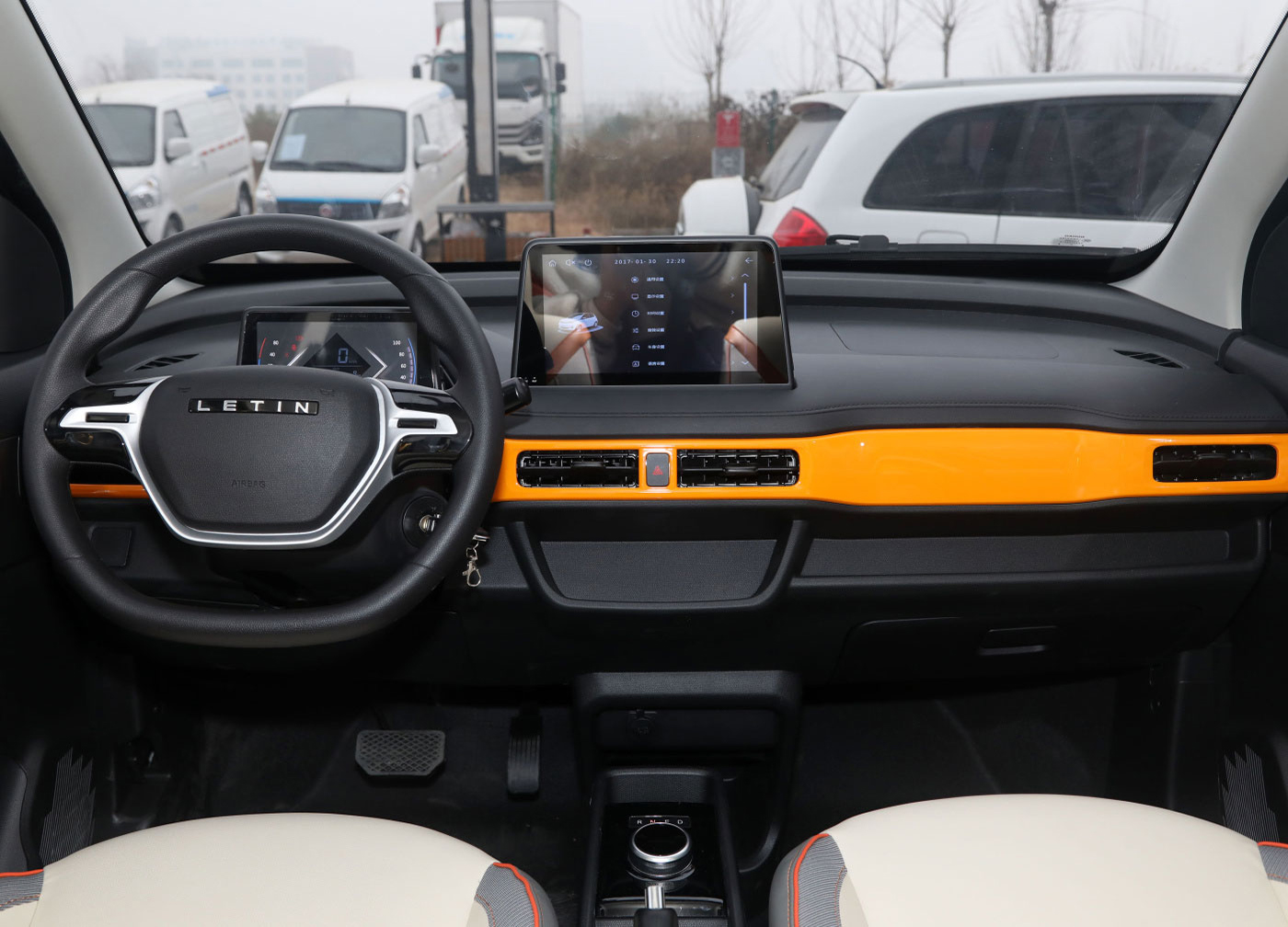

In terms of interior decoration, the three models adopt the interior color matching style of the same color as the exterior, and add white decoration in the details, which has a very outstanding visual effect. In terms of details, the new car adopts a dual-spoke steering wheel, with a floating central control LCD screen, which is young and fashionable. It is worth mentioning that, through actual shooting, we found that the green model also joined the starry roof configuration, which is expected to create a good visual feeling.

In terms of power, all three models are equipped with a permanent magnet synchronous drive motor with a maximum power of 25 kW. In terms of batteries, the new car will offer 11.52kW/h, 17.28kW/h and 29.44kW/h lithium iron phosphate battery packs with corresponding NEDC ranges of 130km, 200km and 300km, respectively. In terms of charging, the corresponding charging time (30-80%) of the three battery packs is 6-8 hours respectively; 9-10 hours; 11-13 hours. The 29.44kW/h battery pack also supports fast charging, 30-80% in 0.5 hours. Suspension, the car uses the former McPherson independent suspension; Rear drag arm non - independent suspension.

Product Specifications

Brand LETIN
Model MANGO
Version 2022款 135 经典版

Car model Mini Car
Type of Energy Pure electric
NEDC pure electric cruising range (KM) 130
Slow charging time[h] 8.0
Maximum power (KW) 25
Maximum torque [Nm] 105
Motor horsepower [Ps] 34
Length*width*height (mm) 3620*1610*1525
Body structure 5-door 4-seat Hatchback
Top Speed (KM/H) 100
Car body
Longth(mm) 3620
Width(mm) 1610
Higth(mm) 1525
Wheel base(mm) 2440
Front track (mm) 1410
Rear track (mm) 1395
Minimum ground clearance (mm) 123
Body structure Hatchback
Number of doors 5
Number of seats 4
Mass (kg) 820
Electric motor
Motor type Permanent magnet synchronization
Total motor power (kw) 25
Total motor torque [Nm] 105
Rear motor maximum power (kW) 25
Rear motor maximum torque (Nm) 105
Number of drive motors Single motor
Motor placement Prepended
Battery Type Lithium iron phosphate battery
NEDC pure electric cruising range (KM) 130
Battery Power(kwh) 11.52
Electricity consumption per 100 kilometers (kWh/100km) 9.5
Gearbox
Number of gears 1
Transmission type Fixed gear ratio gearbox
Short name Electric vehicle single speed gearbox
Chassis Steer
Form of drive FF
Type of front suspension McPherson independent suspension
Type of rear suspension Trailing arm non-independent suspension
Boost type Electric assist
Car body structure Load bearing
Wheel braking
Type of front brake Disc
Type of rear brake  Drum
Type of parking brake Hand brake
Front Tire Specifications 165/65 R14
Rear tire specifications 165/65 R14
Cab Safety Information
Tire pressure monitoring function YES
Seat belt not fastened reminder Driver's seat
ISOFIX Child seat connector YES
ABS anti-lock YES
Brake force distribution (EBD/CBC, etc.) YES
Assist/Control configuration
Driving assistance video Reverse image
Hill assist YES
External / Anti-Theft Configuration
Rim material Steel
Interior central lock YES
Key type Remote control key
Battery preheating YES
Internal configuration
Steering wheel material Plastic
Trip computer display screen  Single Color
LCD meter size (inch) 2.5

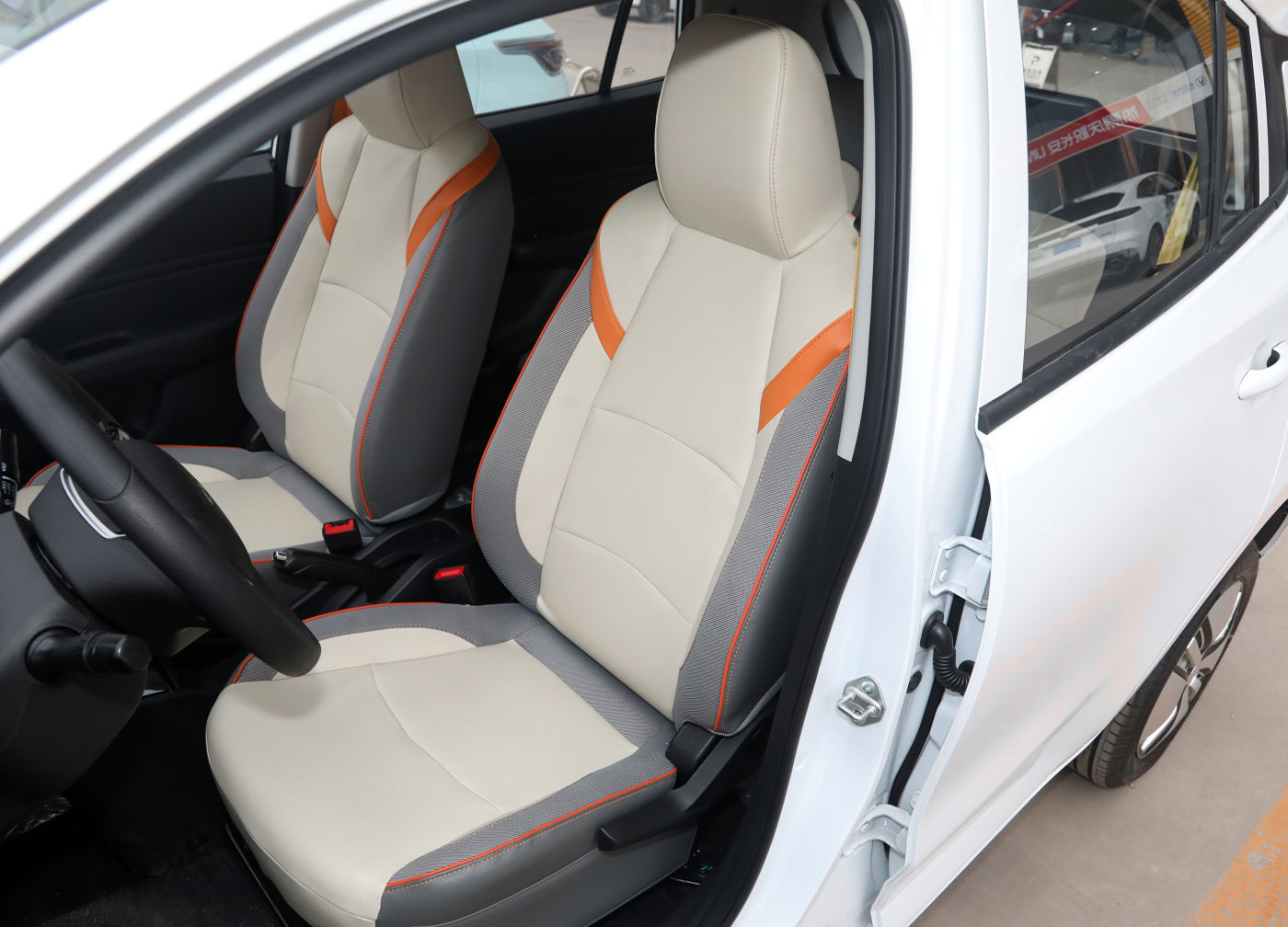

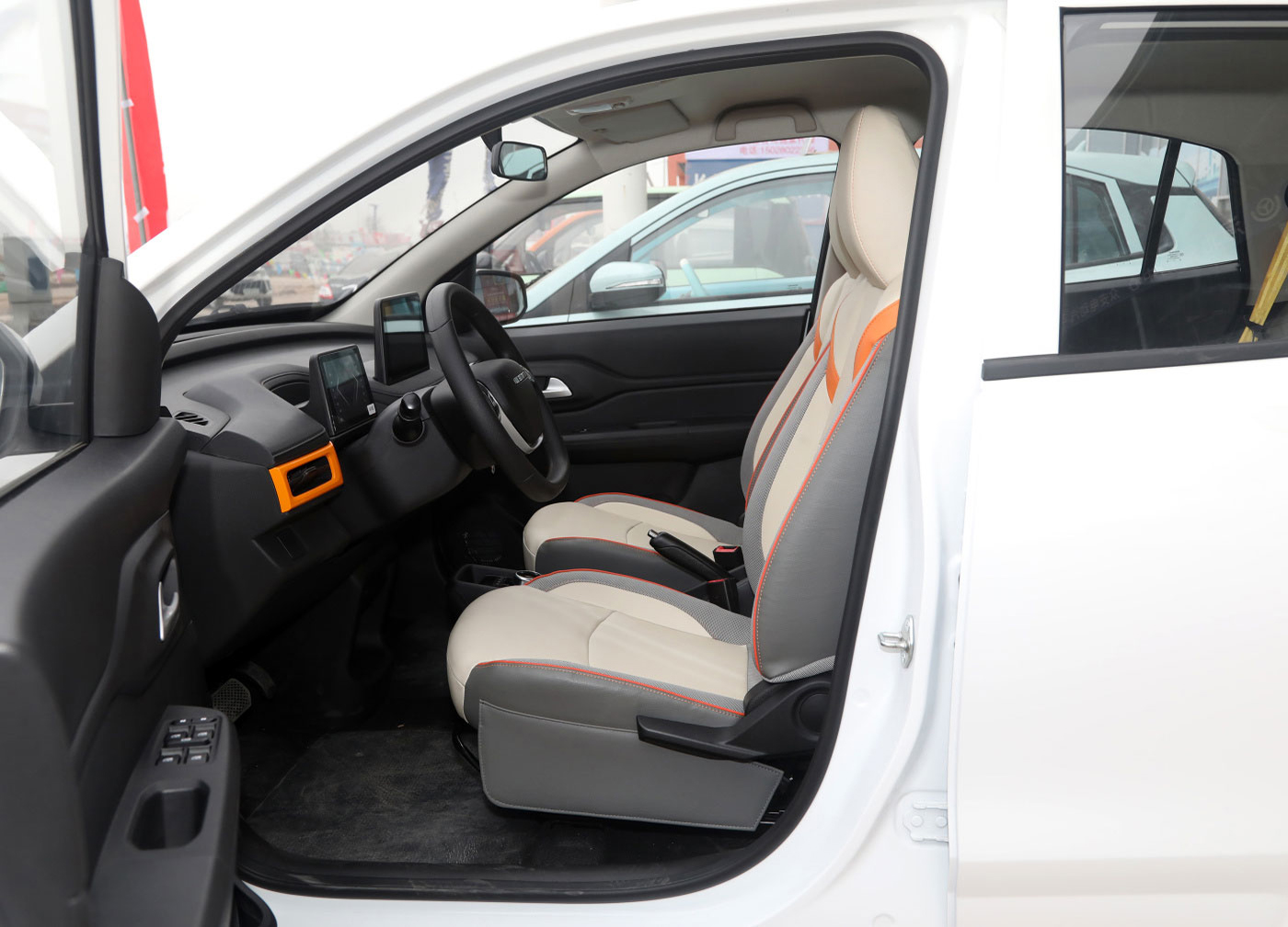

Seat configuration
Seat materials Fabric
Driver's seat adjustment Front and rear adjustment, backrest adjustment
Co-pilot  seat adjustment Front and rear adjustment, backrest adjustment
Rear seats folded down whole down
Multimedia configuration
Central control color screen Touch LCD
Central control screen size (inch) 9
Bluetooth/Car Phone YES
Mobile phone interconnection/mapping Factory interconnect/mapping
Multimedia/charging interface USB
Number of USB/Type-c ports 1 in front
Lighting configuration
Low beam light source Halogen
High beam light source Halogen
Headlight height adjustable YES
Headlights turn off YES
Glass/Rearview mirror

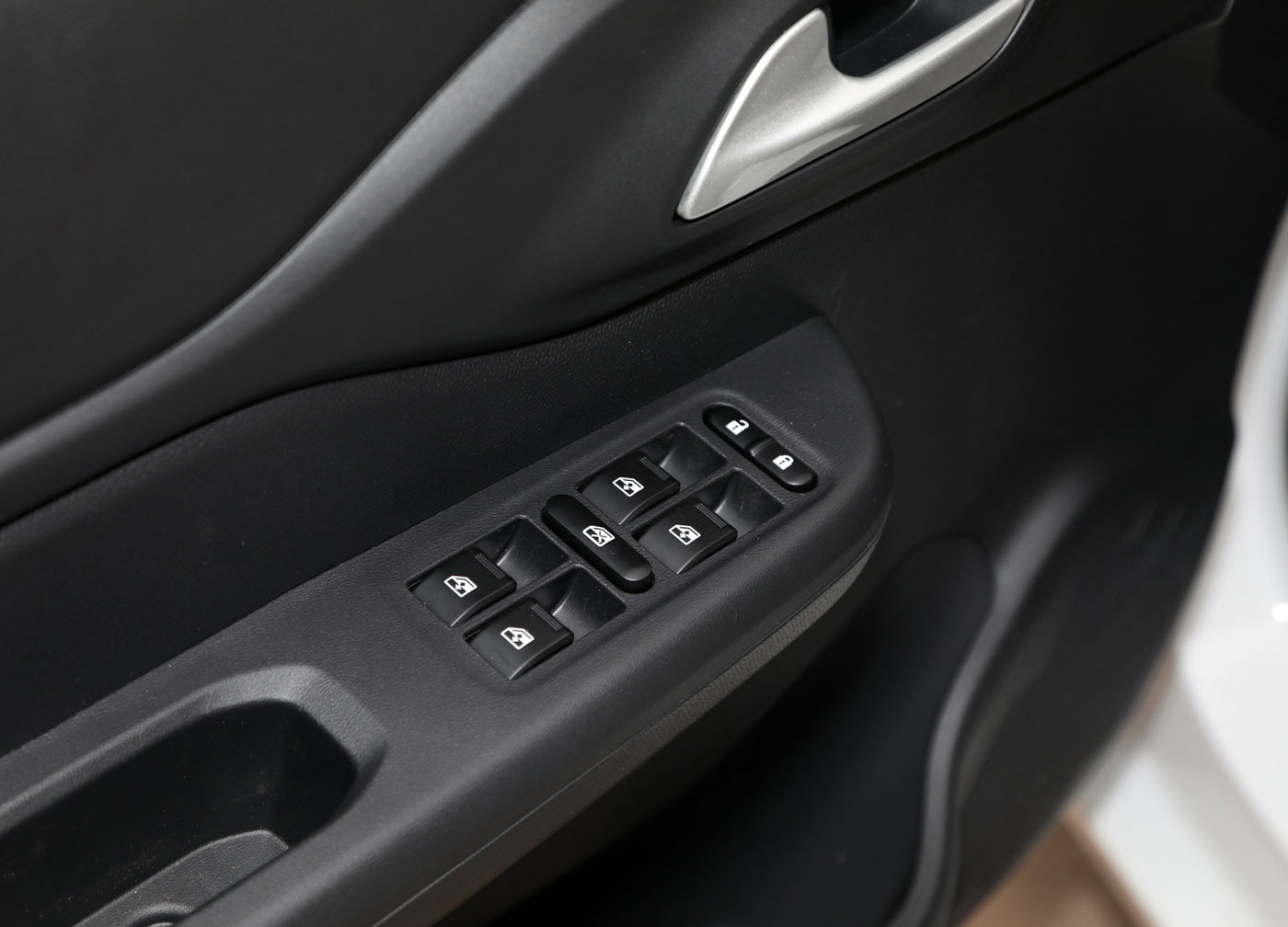

Front power windows YES
Rear power windows YES
Air conditioner/refrigerator
Air conditioner temperature control method Manual air conditioner
