Product Information

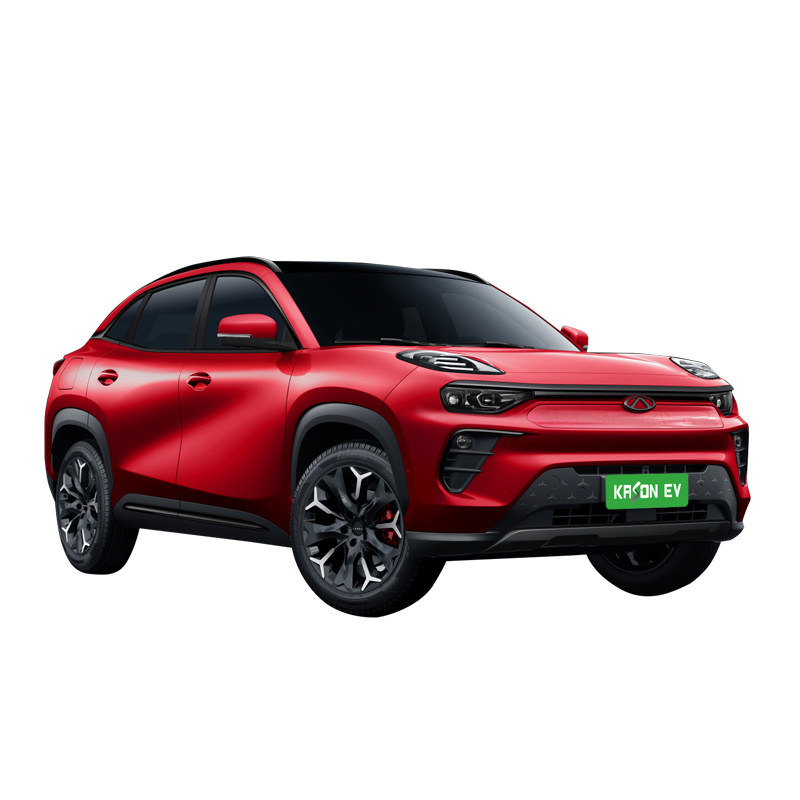

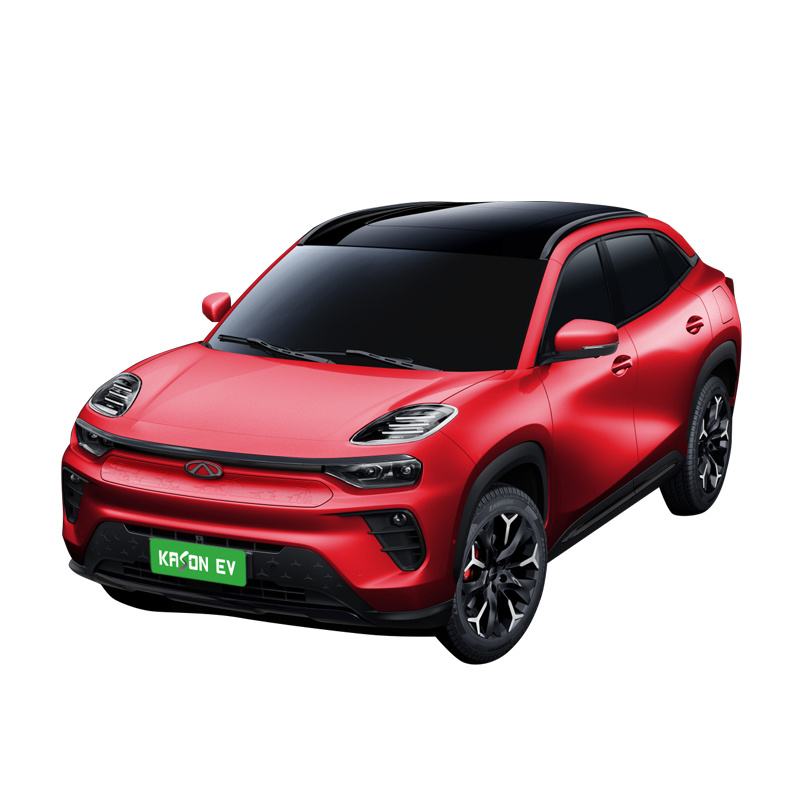

The first pure electric SUV, Ant adopts the design concept of "natural aesthetics", highlighting the aesthetic design of details. Yunfeng front face elegant atmosphere, wave-going body curve, lot-lighting waist line design smooth light; LED crystal drill headlights and LED wind plume through the tail lights echo. The length, width and height of the new car are 4630mm, 1910mm and 1655mm respectively, with a wheelbase of 2830mm. At the same time, it is equipped with 20-inch aluminum alloy star wheels and red calipers to highlight dynamic personality. In addition, ant can also be laid down in proportion, with up to 1250L trunk volume, plus 60L front cabin volume, the whole car 28 storage space, to provide users with more intimate and comfortable storage space.
Ant's interior is simple and luxurious, with pengzhanwide and comfortable cabin design, double 12.3-inch integrated screen, intelligent configuration of IFLYTEK intelligent voice recognition control, mobile phone remote control, charging pile intelligent push to meet travel needs. At the same time, the star atmosphere lighting group, obsidian panoramic skylight and the first layer of cowhide luxury seats, with scientific and technological light sense to bring comfortable luxury experience.
In terms of safety configuration, Ant integrates the latest and cutting-edge technology of Chery New Energy to achieve the lead in intelligent driving technology. L2+ level automatic driving assistance, including 20 smart sensors (12 ultrasonic radars, 1 forward looking camera, 4 circumnavigation cameras, 3 millimeter wave radars), Nearly 20 driving assistance functions, including fatigue monitoring, AEB active braking system, LDW lane departure warning, LKA lane keeping, ACC adaptive cruise and APA automatic parking, are realized to realize green and intelligent life.
Product Specifications
| Brand | CHERY |
| Model | BIG ANT |
| Version | 2022 Tide Enjoy Cabin |
| Basic parameters | |
| Car model | Midsize SUV |
| Type of Energy | Pure electric |
| Time to Market | Oct.2021 |
| NEDC pure electric cruising range (KM) | 510 |
| Fast charging time[h] | 0.5 |
| Fast charge capacity [%] | 80 |
| Slow charging time[h] | 13 |
| Maximum power (KW) | 130 |
| Maximum torque [Nm] | 280 |
| Motor horsepower [Ps] | 177 |
| Length*width*height (mm) | 4630*1910*1655 |
| Body structure | 5-door 5-seat Suv |
| Top Speed (KM/H) | 170 |
| Official 0-50km/h acceleration (s) | 4.8 |
| Car body | |
| Longth(mm) | 4630 |
| Width(mm) | 1910 |
| Higth(mm) | 1655 |
| Wheel base(mm) | 2830 |
| Front track (mm) | 1620 |
| Rear track (mm) | 1620 |
| Minimum ground clearance (mm) | 166 |
| Body structure | SUV |
| Number of doors | 5 |
| Number of seats | 5 |
| Trunk volume (L) | 386-1250 |
| Mass (kg) | 1790 |
| Electric motor | |
| Motor type | Permanent magnet synchronization |
| Total motor power (kw) | 130 |
| Total motor torque [Nm] | 280 |
| Rear motor maximum power (kW) | 130 |
| Rear motor maximum torque (Nm) | 280 |
| Number of drive motors | Single motor |
| Motor placement | Rear |
| Battery Type | Ternary lithium battery |
| NEDC pure electric cruising range (KM) | 510 |
| Battery Power(kwh) | 70.1 |
| Gearbox | |
| Number of gears | 1 |
| Transmission type | Fixed gear ratio gearbox |
| Short name | Electric vehicle single speed gearbox |
| Chassis Steer | |
| Form of drive | Rear-engine Rear-drive |
| Type of front suspension | McPherson independent suspension |
| Type of rear suspension | Multi-link independent suspension |
| Boost type | Electric assist |
| Car body structure | Load bearing |
| Wheel braking | |
| Type of front brake | Ventilated Disc |
| Type of rear brake | Disc |
| Type of parking brake | Electric brake |
| Front Tire Specifications | 225/60 R18 |
| Rear tire specifications | 225/60 R18 |
| Spare tire size | Not full size |
| Cab Safety Information | |
| Primary driver airbag | YES |
| Co-pilot airbag | YES |
| Front side airbag | YES |
| Tire pressure monitoring function | Tire pressure display |
| Seat belt not fastened reminder | Driver's seat |
| ISOFIX Child seat connector | YES |
| ABS anti-lock | YES |
| Brake force distribution (EBD/CBC, etc.) | YES |
| Brake Assist (EBA/BAS/BA, etc.) | YES |
| Traction Control (ASR/TCS/TRC, etc.) | YES |
| Body Stability Control (ESC/ESP/DSC, etc.) | YES |
| Fatigue driving tips | Option |
| Assist/Control configuration | |
| Rear parking radar | YES |
| Driving assistance video | Reverse image |
| Driving mode switching | Sport/Economy |
| Automatic parking | YES |
| Hill assist | YES |
| Steep descent | YES |
| External / Anti-Theft Configuration | |
| Rim material | Aluminum alloy |
| Roof rack | YES |
| Interior central lock | YES |
| Key type | Remote control key |
| Keyless start system | YES |
| Keyless entry function | Front row |
| Remote start function | YES |
| Battery preheating | YES |
| Internal configuration | |
| Steering wheel material | Plastic |
| Steering wheel position adjustment | Manual up and down + front and rear adjustment |
| Multifunction steering wheel | YES |
| Trip computer display screen | Color |
| Full LCD Dashboard | YES |
| Seat configuration | |
| Seat materials | Imitation leather |
| Driver's seat adjustment | Front and rear adjustment, backrest adjustment, height adjustment (2-way) |
| Co-pilot seat adjustment | Front and rear adjustment, backrest adjustment |
| Rear seats folded down | Proportion down |
| Front/rear center armrest | Front |
| Multimedia configuration | |
| Central control color screen | Touch OLED |
| Central control screen size (inch) | 12.3 |
| Roadside assistance call | YES |
| Bluetooth/Car Phone | YES |
| Mobile phone interconnection/mapping | Factory interconnect/mapping |
| Multimedia/charging interface | USB Type-C |
| Number of USB/Type-c ports | 2 in front/2 in rear |
| Number of speakers (pcs) | 4 |
| Lighting configuration | |
| Low beam light source | Halogen |
| High beam light source | Halogen |
| LED daytime running lights | YES |
| Front fog lights | LED |
| Headlight height adjustable | YES |
| Headlights turn off | YES |
| Glass/Rearview mirror | |
| Front power windows | YES |
| Rear power windows | YES |
| Post audition feature | Electric adjustment |
| Inside rearview mirror function | Manual anti-dazzle |
| Interior vanity mirror | Driver's seat Co-pilot |
| Rear wiper | YES |
| Air conditioner/refrigerator | |
| Air conditioner temperature control method | Automatic air conditioner |
| Rear air outlet | YES |
