Product Information
The new car is positioned as a compact pure electric SUV, and the enclosed intake grille can highlight the car's recognition. In addition, the new car carries three yuan lithium battery pack with yaskawa motor, the maximum range can reach 401km.

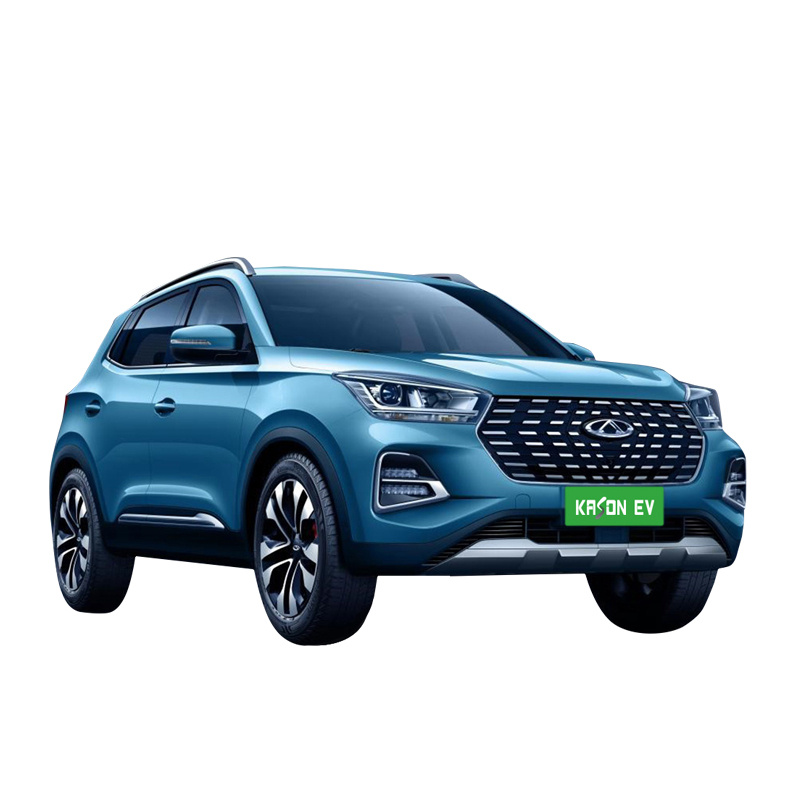

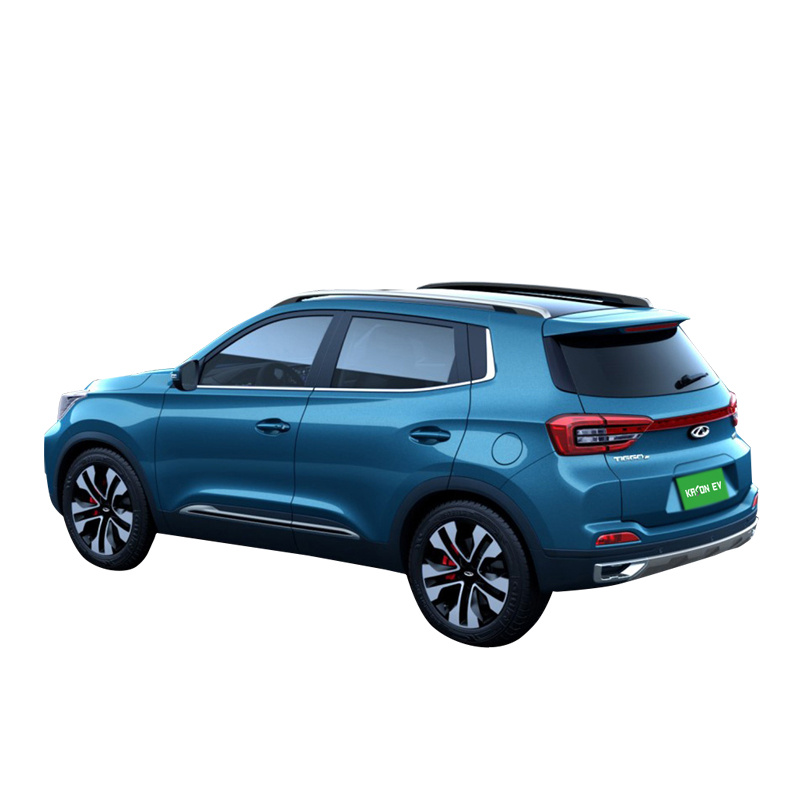

In terms of appearance design, the new car adopts the family young design language. The closed intake grille on the front is equipped with a chrome strip running through it, which is highly recognizable under the decoration of LED headlights on both sides. On the side of the body, the continuous car waist line extends directly to the rear window of the door, which is more unique with the aluminum alloy wheel rim. In the rear part of the car, the new taillight is equipped with LED light source, and has been blackened. In the center of the taillight, there is a chrome strip running through.
In the interior, the overall shape is still a family design language, plus two large LCD instruments not only convenient for daily use, the sense of science and technology is again enhanced. On the multi-function steering wheel, there are a lot of chrome material, strong touch. Finally, on the power side, the new car is equipped with three-yuan lithium battery and electric motor, with a maximum range of 401km.
Product Specifications
| Brand | CHERY |
| Model | TIGGO 3XE |
| Version | 2018 480 Changyou Edition |
| Basic parameters | |
| Car model | Small SUV |
| Type of Energy | Pure electric |
| Time to Market | March.2018 |
| NEDC pure electric cruising range (KM) | 401 |
| Fast charging time[h] | 0.5 |
| Fast charge capacity [%] | 80 |
| Slow charging time[h] | 8 |
| Maximum power (KW) | 95 |
| Maximum torque [Nm] | 250 |
| Motor horsepower [Ps] | 129 |
| Length*width*height (mm) | 4200*1760*1570 |
| Body structure | 5-door 5-seat SUV |
| Top Speed (KM/H) | 151 |
| Official 0-50km/h acceleration (s) | 3.6 |
| Car body | |
| Longth(mm) | 4200 |
| Width(mm) | 1760 |
| Higth(mm) | 1570 |
| Wheel base(mm) | 2555 |
| Front track (mm) | 1495 |
| Rear track (mm) | 1484 |
| Minimum ground clearance (mm) | 150 |
| Body structure | SUV |
| Number of doors | 5 |
| Number of seats | 5 |
| Electric motor | |
| Motor type | Permanent magnet synchronization |
| Total motor power (kw) | 95 |
| Total motor torque [Nm] | 250 |
| Front motor maximum power (kW) | 95 |
| Front motor maximum torque (Nm) | 250 |
| Number of drive motors | Single motor |
| Motor placement | Prepended |
| Battery Type | Ternary lithium battery |
| NEDC pure electric cruising range (KM) | 401 |
| Battery Power(kwh) | 53.6 |
| Gearbox | |
| Number of gears | 1 |
| Transmission type | Fixed gear ratio gearbox |
| Short name | Electric vehicle single speed gearbox |
| Chassis Steer | |
| Form of drive | FF |
| Type of front suspension | McPherson independent suspension |
| Type of rear suspension | Torsion Beam Dependent Suspension |
| Boost type | Electric assist |
| Car body structure | Load bearing |
| Wheel braking | |
| Type of front brake | Ventilated Disc |
| Type of rear brake | Disc |
| Type of parking brake | Hand brake |
| Front Tire Specifications | 205/55 R16 |
| Rear tire specifications | 205/55 R16 |
| Cab Safety Information | |
| Primary driver airbag | YES |
| Co-pilot airbag | YES |
| Seat belt not fastened reminder | Driver's seat |
| ISOFIX Child seat connector | YES |
| ABS anti-lock | YES |
| Brake force distribution (EBD/CBC, etc.) | YES |
| Brake Assist (EBA/BAS/BA, etc.) | YES |
| Traction Control (ASR/TCS/TRC, etc.) | YES |
| Body Stability Control (ESC/ESP/DSC, etc.) | YES |
| Assist/Control configuration | |
| Rear parking radar | YES |
| Driving mode switching | Sport/Economy |
| External / Anti-Theft Configuration | |
| Rim material | Aluminum alloy |
| Roof rack | YES |
| Interior central lock | YES |
| Key type | Remote control key |
| Battery preheating | YES |
| Internal configuration | |
| Steering wheel material | Plastic |
| Steering wheel position adjustment | Manual up and down |
| Trip computer display screen | Single Color |
| Seat configuration | |
| Seat materials | Leather/fabric mix |
| Sports style seat | YES |
| Driver's seat adjustment | Front and rear adjustment, backrest adjustment, height adjustment (2-way) |
| Co-pilot seat adjustment | Front and rear adjustment, backrest adjustment |
| Rear seats folded down | Proportion down |
| Front/rear center armrest | Front/Rear |
| Multimedia configuration | |
| Multimedia/charging interface | USB Type-C |
| Number of USB/Type-c ports | 1 in front |
| Number of speakers (pcs) | 4 |
| Lighting configuration | |
| Low beam light source | Halogen |
| High beam light source | Halogen |
| LED daytime running lights | YES |
| Headlight height adjustable | YES |
| Headlights turn off | YES |
| Glass/Rearview mirror | |
| Front power windows | YES |
| Rear power windows | YES |
| Post audition feature | Electric adjustment |
| Inside rearview mirror function | Manual anti-dazzle |
| Interior vanity mirror | Driver's seat Co-pilot |
| Air conditioner/refrigerator | |
| Air conditioner temperature control method | Manual air conditioner |
