The Aion V is a pure electric 5G SUV model

Short Description:

As a pure electric vehicle, GAC New Energy Aion V defines a new standard for the next generation of smart cars with its own standards. Aion V is equipped with China’s first integrated 5G+C-V2X vehicle-mounted intelligent communication system independently developed by GAC New Energy, and is equipped with HUAWEI’s new generation 5G vehicle-mounted module MH5000, which is a 5G model.


Product Detail

Product Tags

Product Information

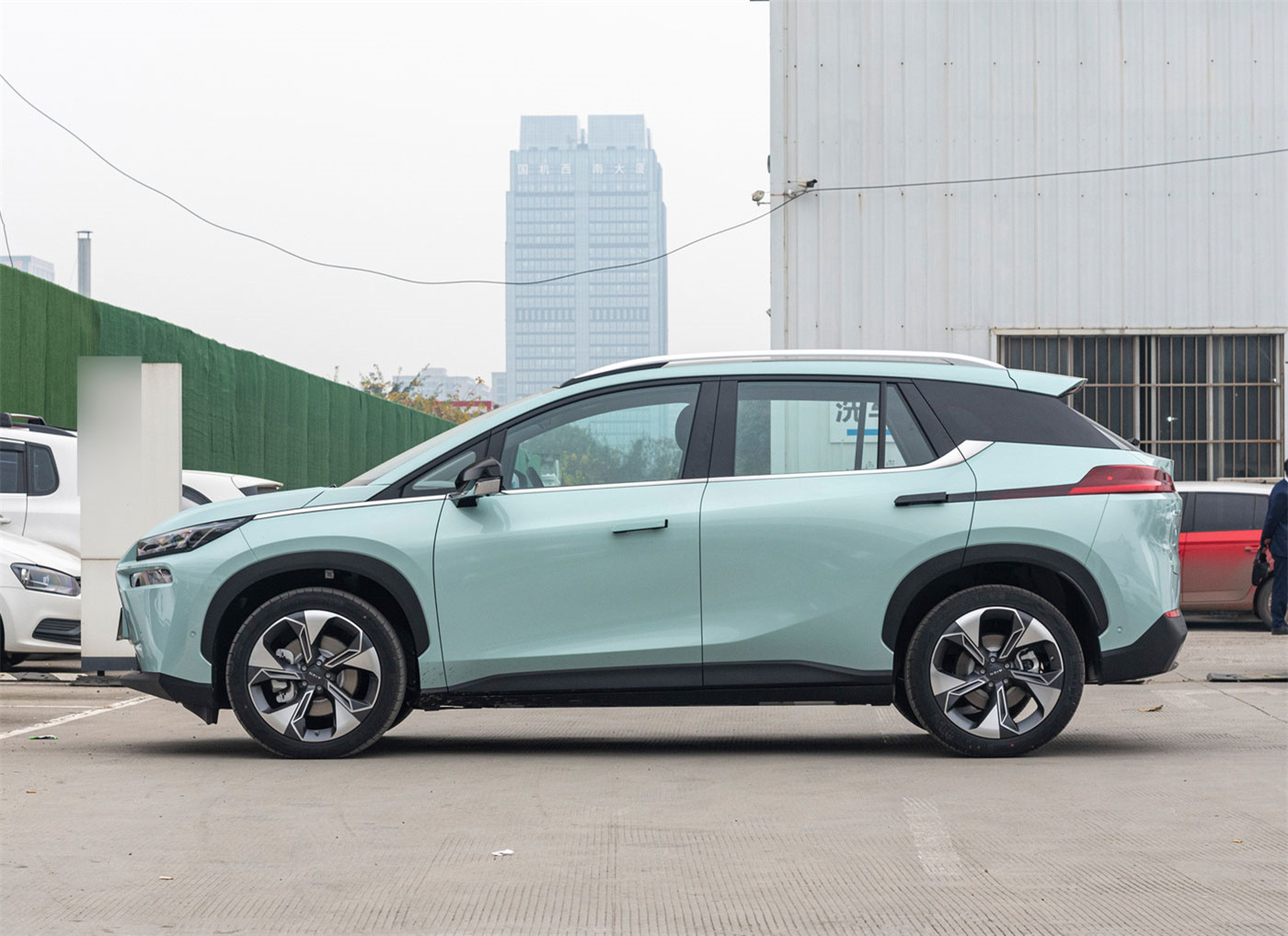

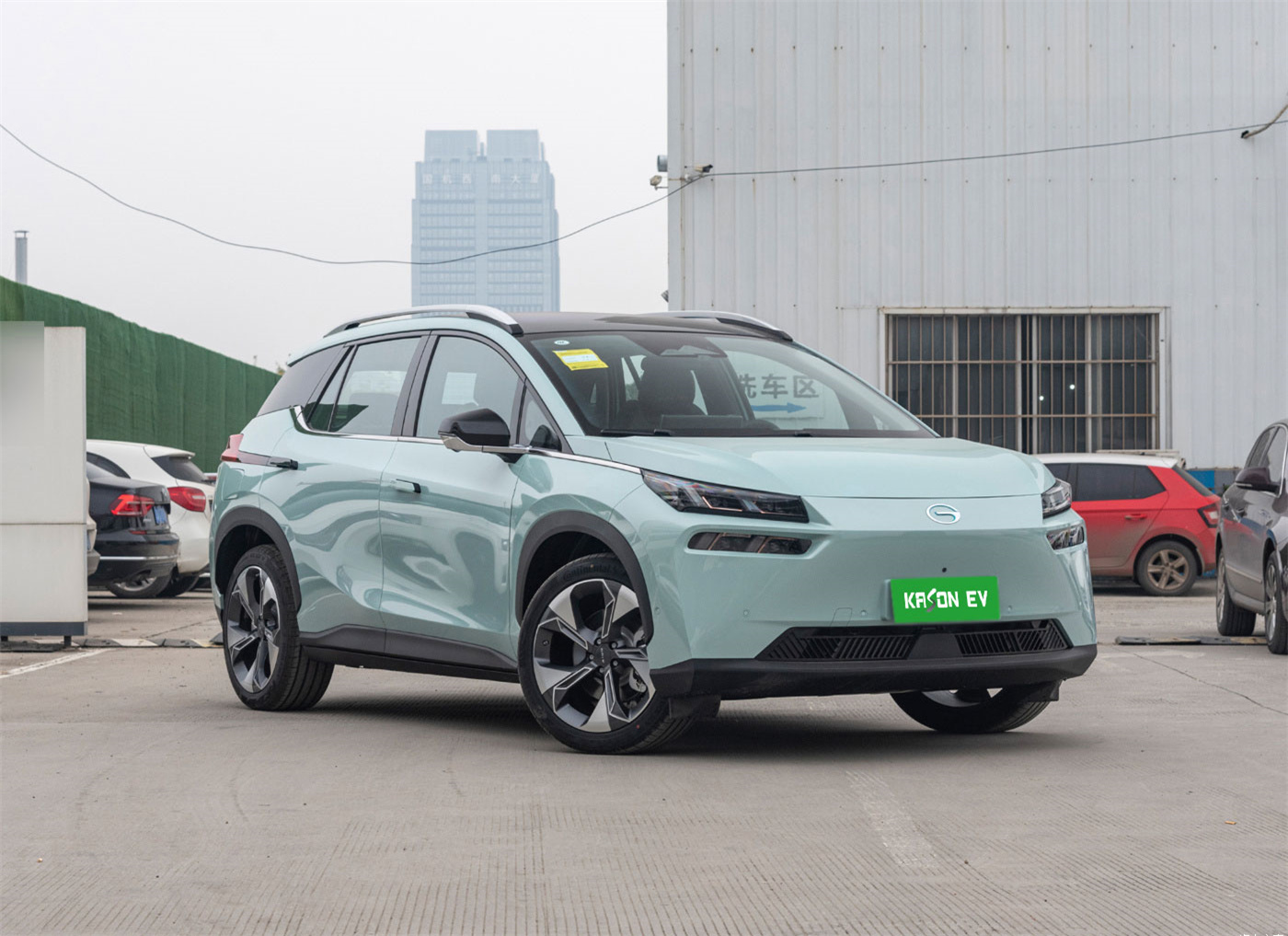

In terms of appearance, the designer takes the mecha elements in science fiction movies as inspiration, and creates a four-dimensional science fiction mecha design theme belonging to Aion V , with a strong sense of science fiction.

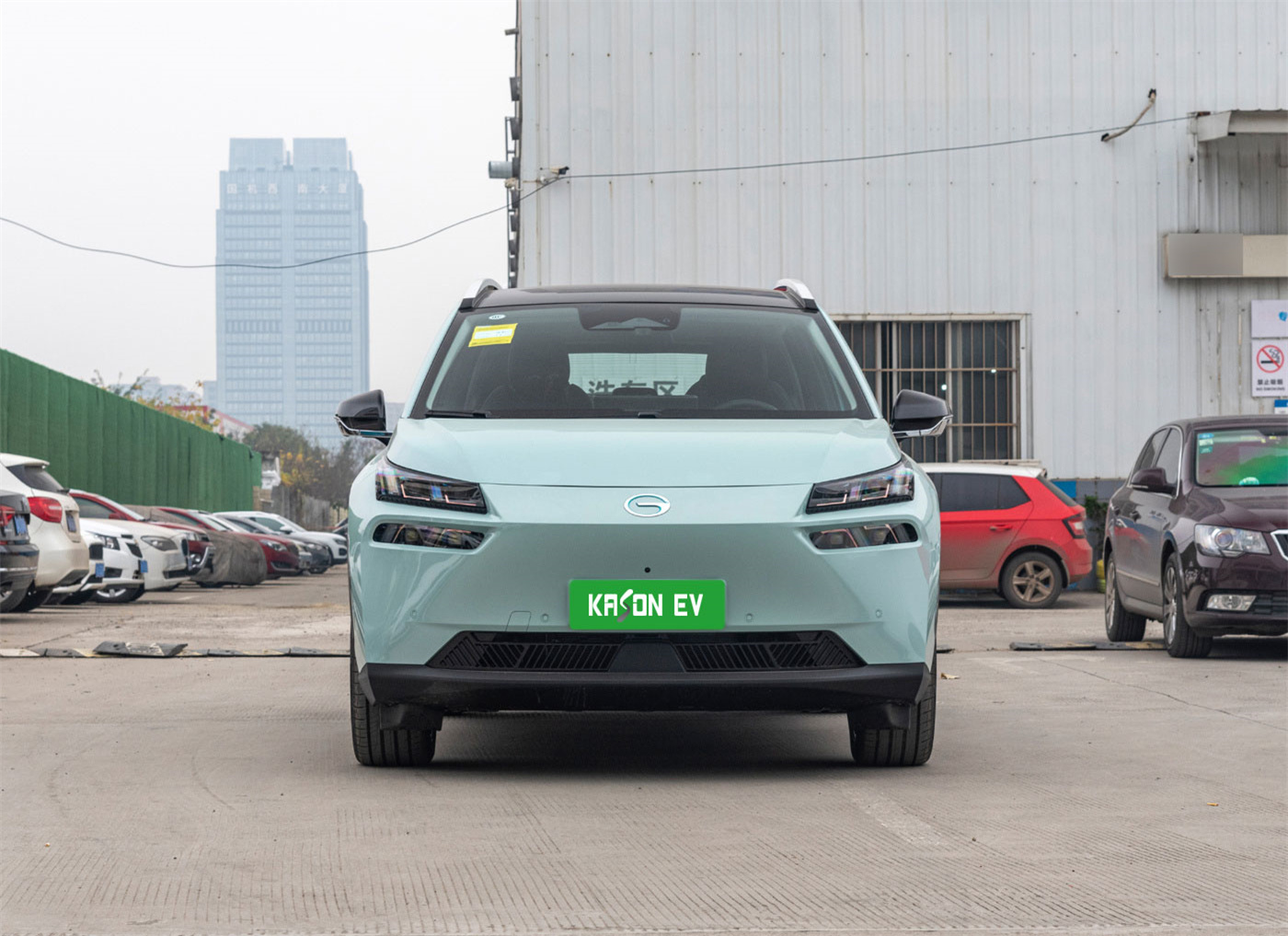

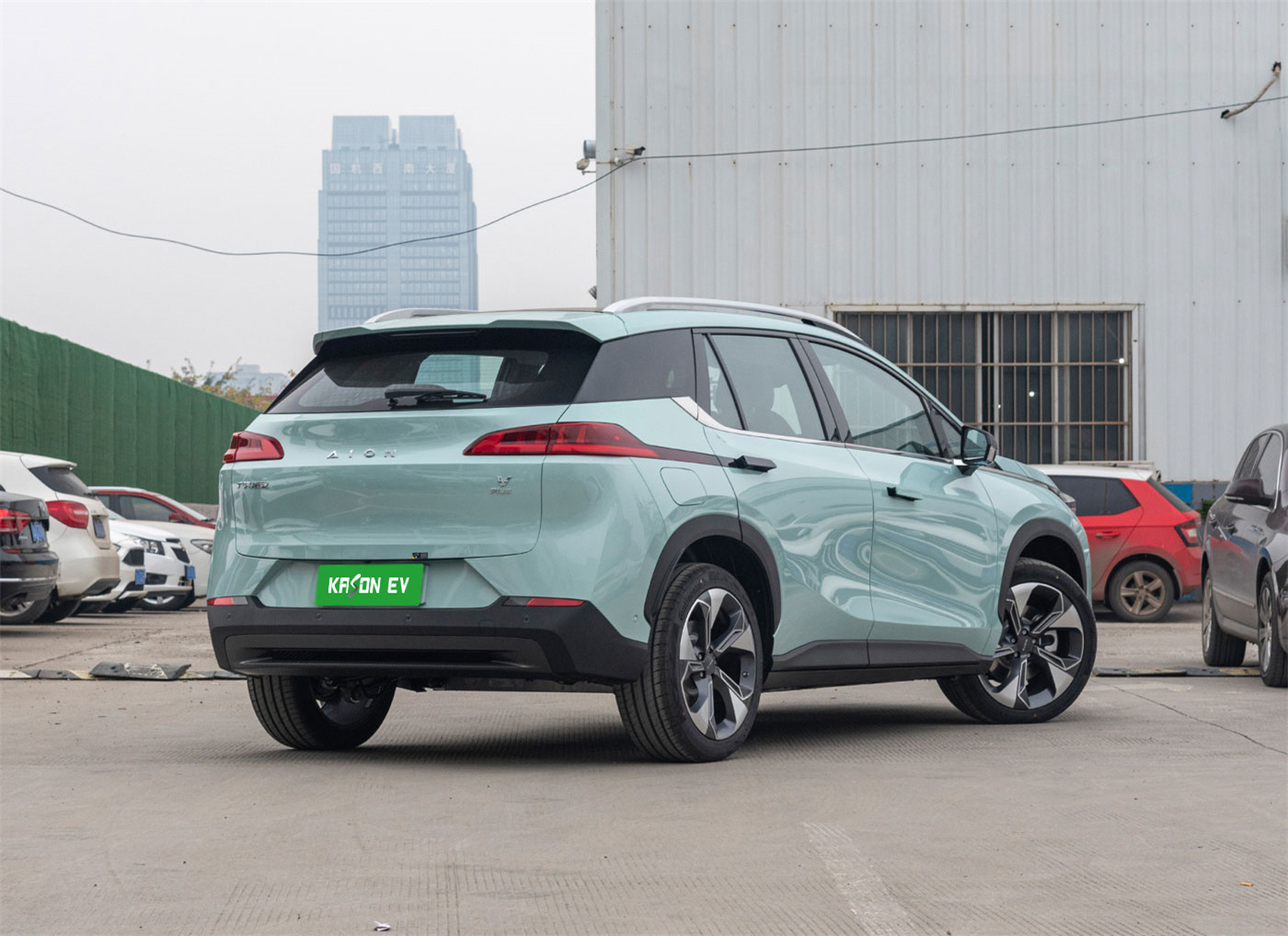

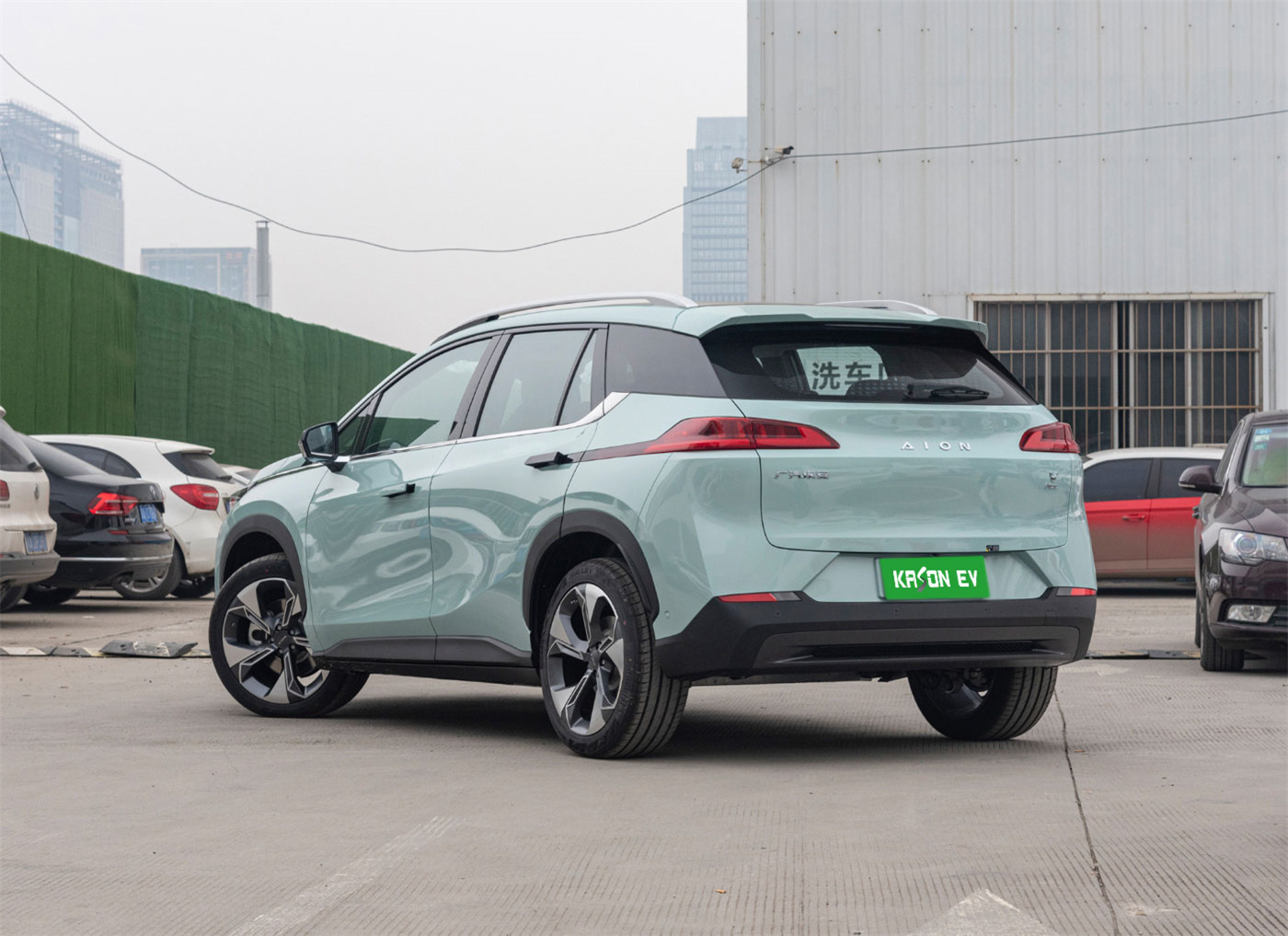

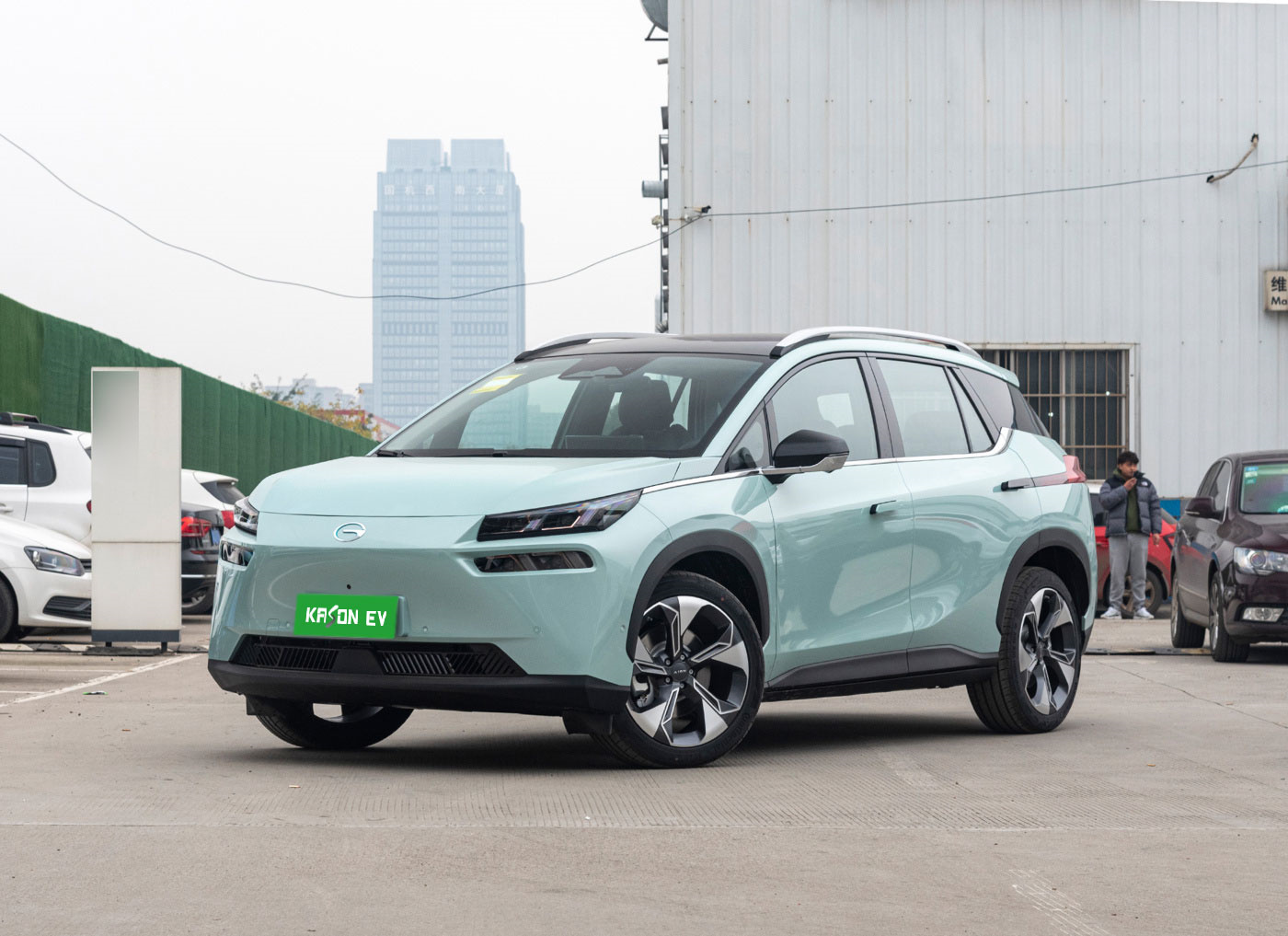

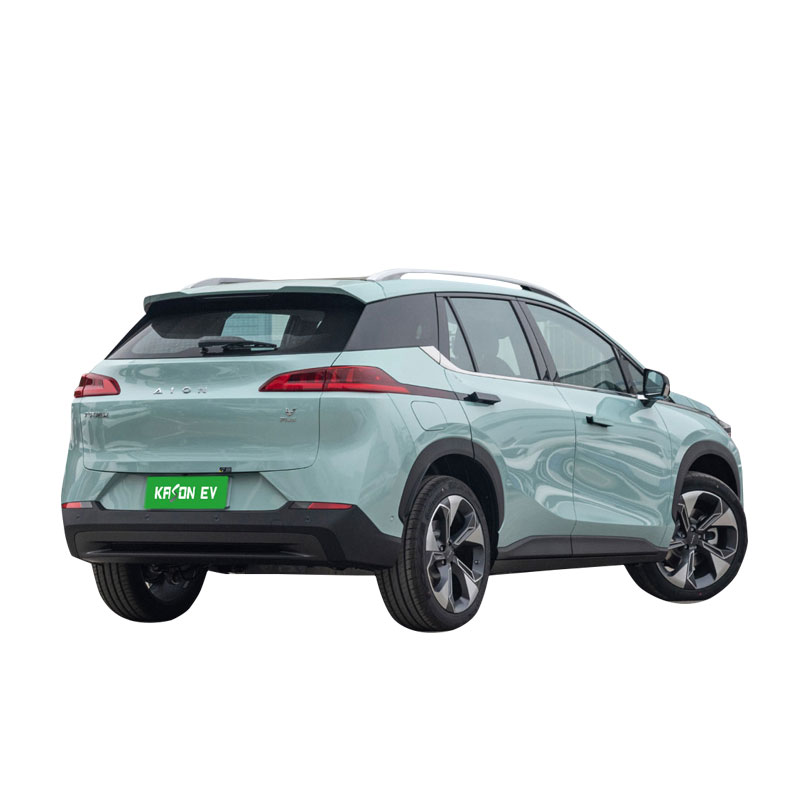

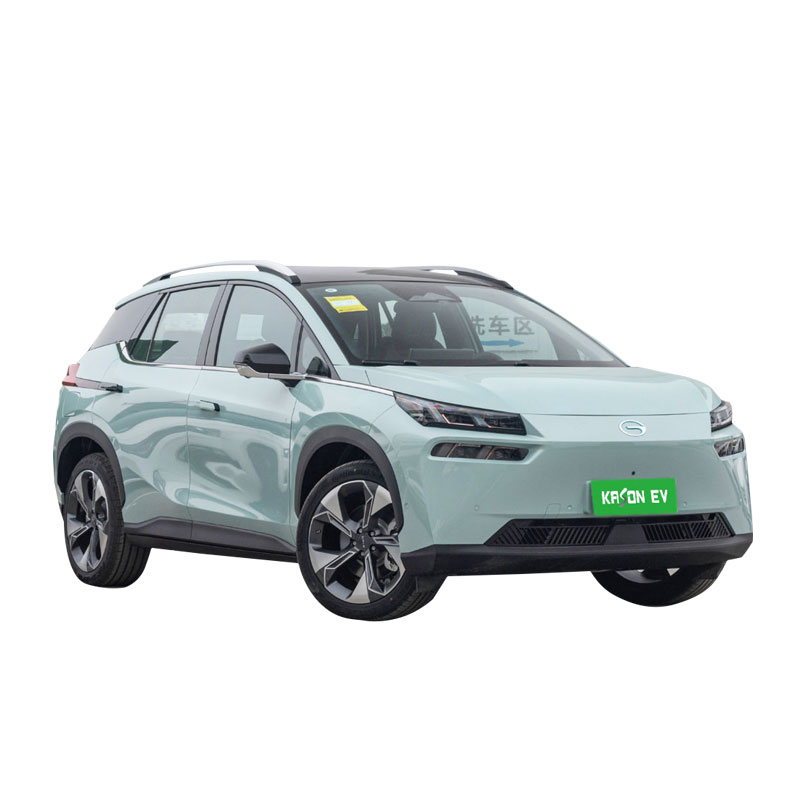

The front face is based on the prototype of "mecha beast", plus the split LED headlight of "light claw and electric eye", which is very recognizable and sci-fi. "Flying wing type" black rear view mirror, 100 variable star wheel hub, "universal blade" taillight combination, so that the vehicle gives a person a feeling from outer space.

As a pure electric vehicle, GAC New Energy Aion V defines a new standard for the next generation of smart cars with its own standards.

Aion V is built based on GEP2.0 all-aluminum pure electric exclusive platform, with a weight ratio of 50:50 before and after. The advantages of aluminum body are light and anti-rust and anti-corrosion, so the safety, handling and durability will be more enhanced than ordinary models. The longest wheelbase at the same level, 2830mm, allows more space in the car, plus 25 storage space design, more convenient to use.

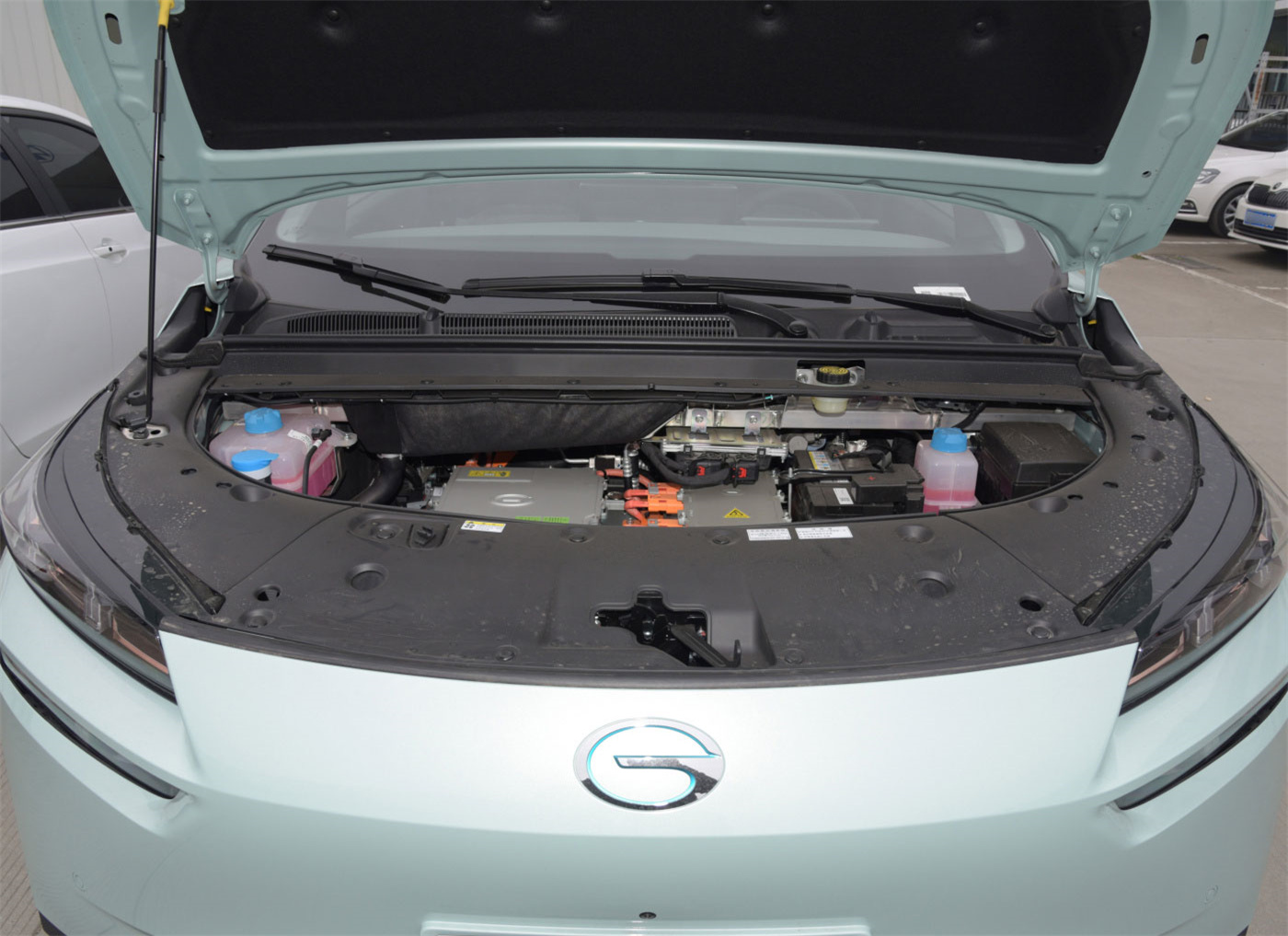

The ev has a maximum range of 600km in its class, thanks to its all-aluminum pure level platform and deeply integrated three-in-one electric drive system, as well as power battery and management technology and ultra-low wind resistance design.

Aion V is equipped with China's first integrated 5G+C-V2X vehicle-mounted intelligent communication system independently developed by GAC New Energy, and is equipped with HUAWEI's new generation 5G vehicle-mounted module MH5000, which is a 5G model.

There are also some high-tech practical features:

Eion V can achieve horizontal and vertical parking in and out, support ramp, oblique and intelligent tracking parking and other scenarios of intelligent parking. The callable function supports remote parking within a range of 6 meters, realizing automatic parking in vertical and horizontal narrow parking Spaces by remote control outside the car; When picking up the car, the car can be summoned by the way of remote control berthing, avoiding the embarrassment of getting on the car because the parking space is too narrow.

Product Specifications

Brand AION
Model V
Version 2021 PLUS 70 Smart Collar Edition
Car model Compact SUV
Type of Energy Pure electric
NEDC pure electric cruising range (KM) 500
Maximum power (KW) 165
Motor horsepower [Ps] 224
Length*width*height (mm) 4650*1920*1720
Body structure 5-door 5-seat SUV
Official 0-100km/h acceleration (s) 7.9
Car body
Longth(mm) 4650
Width(mm) 1920
Higth(mm) 1720
Wheel base(mm) 2830
Minimum ground clearance (mm) 150
Body structure SUV
Number of doors 5
Number of seats 5
Electric motor
Motor type Permanent magnet synchronization
Total motor power (kw) 165
Front motor maximum power (kW) 165
Number of drive motors Single motor
Motor placement Prepended
Battery Type Lithium iron phosphate battery
NEDC pure electric cruising range (KM) 500
Battery Power(kwh) 71.8
Gearbox
Number of gears 1
Transmission type Fixed gear ratio gearbox
Short name Electric vehicle single speed gearbox
Chassis Steer
Form of drive FF
Type of front suspension McPherson independent suspension
Type of rear suspension Multi-link independent suspension
Boost type Electric assist
Car body structure Load bearing
Wheel braking
Type of front brake Ventilated Disc
Type of rear brake  Disc
Type of parking brake Electric brake
Front Tire Specifications 235/55 R19
Rear tire specifications 235/55 R19
Cab Safety Information
Primary driver airbag YES
Co-pilot airbag YES
Front side airbag YES
Front head airbag (curtain) YES
Rear head airbag (curtain) YES
Tire pressure monitoring function Tire pressure display
Seat belt not fastened reminder Full car
ISOFIX Child seat connector YES
ABS anti-lock YES
Brake force distribution (EBD/CBC, etc.) YES
Brake Assist (EBA/BAS/BA, etc.) YES
Traction Control (ASR/TCS/TRC, etc.) YES
Body Stability Control (ESC/ESP/DSC, etc.) YES
Assist/Control configuration
Rear parking radar YES
Driving assistance video 360 degree panoramic image
Cruise system Cruise control
Driving mode switching Sport/Economy/Standard Comfort
Automatic parking YES
Hill assist YES
Steep descent YES
External / Anti-Theft Configuration
Sunroof type Panoramic sunroof cannot be opened
Rim material Aluminum alloy
Electric trunk YES
Electric trunk position memory YES
Roof rack YES
Interior central lock YES
Key type Remote control key    Bluetooth key
Keyless start system YES
Keyless entry function Front row
Hide electric door handle YES
Battery preheating YES

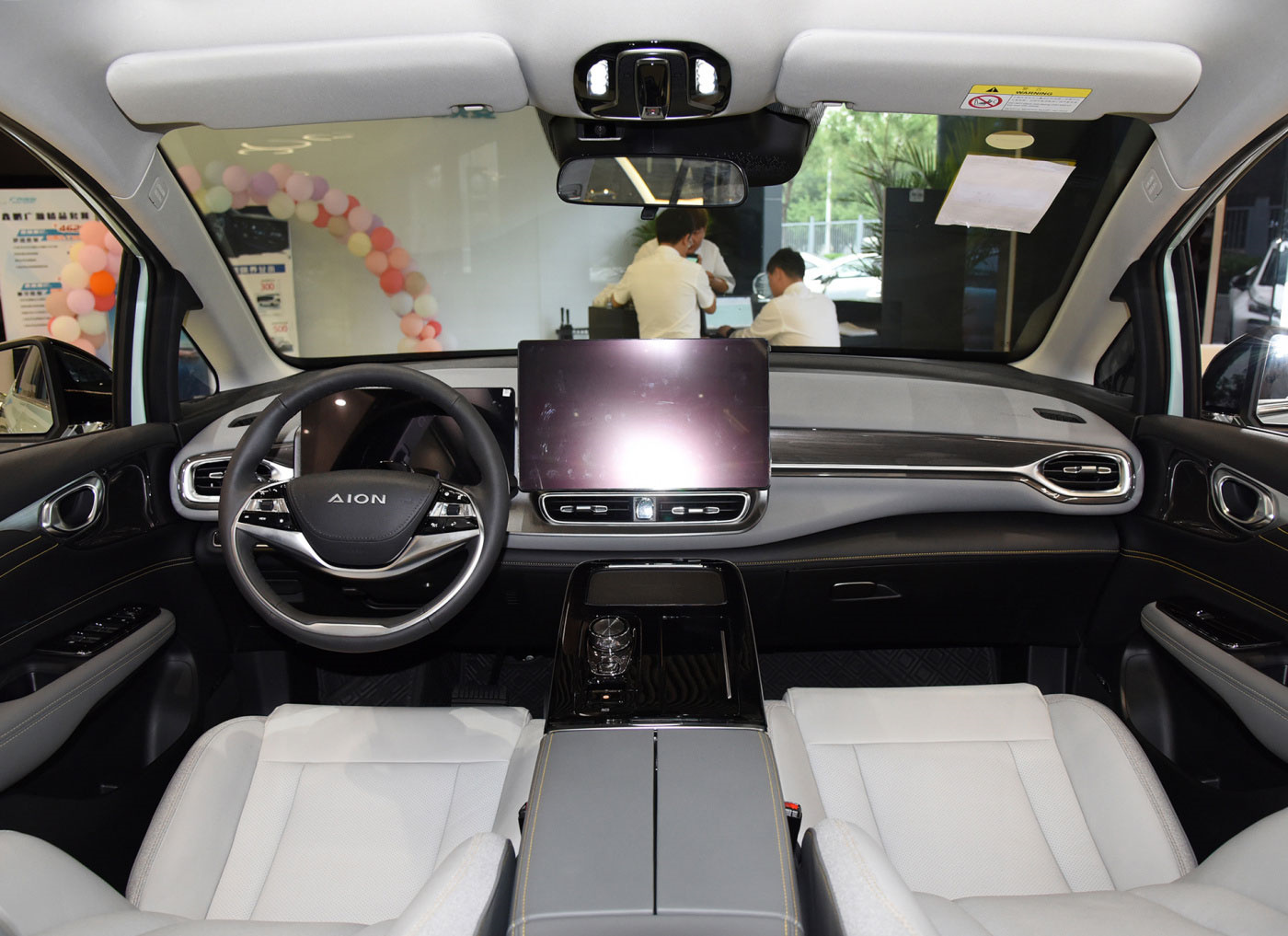

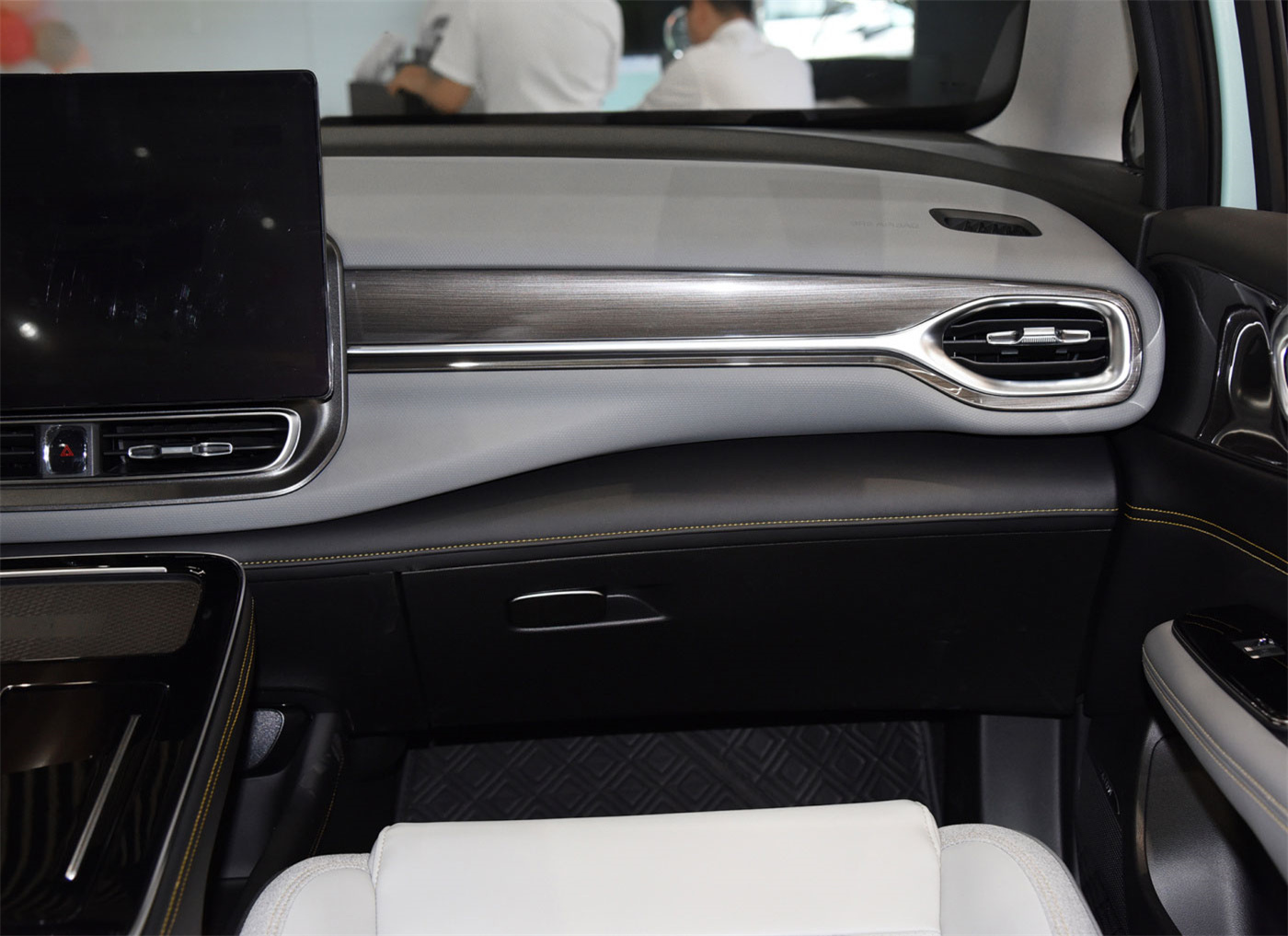

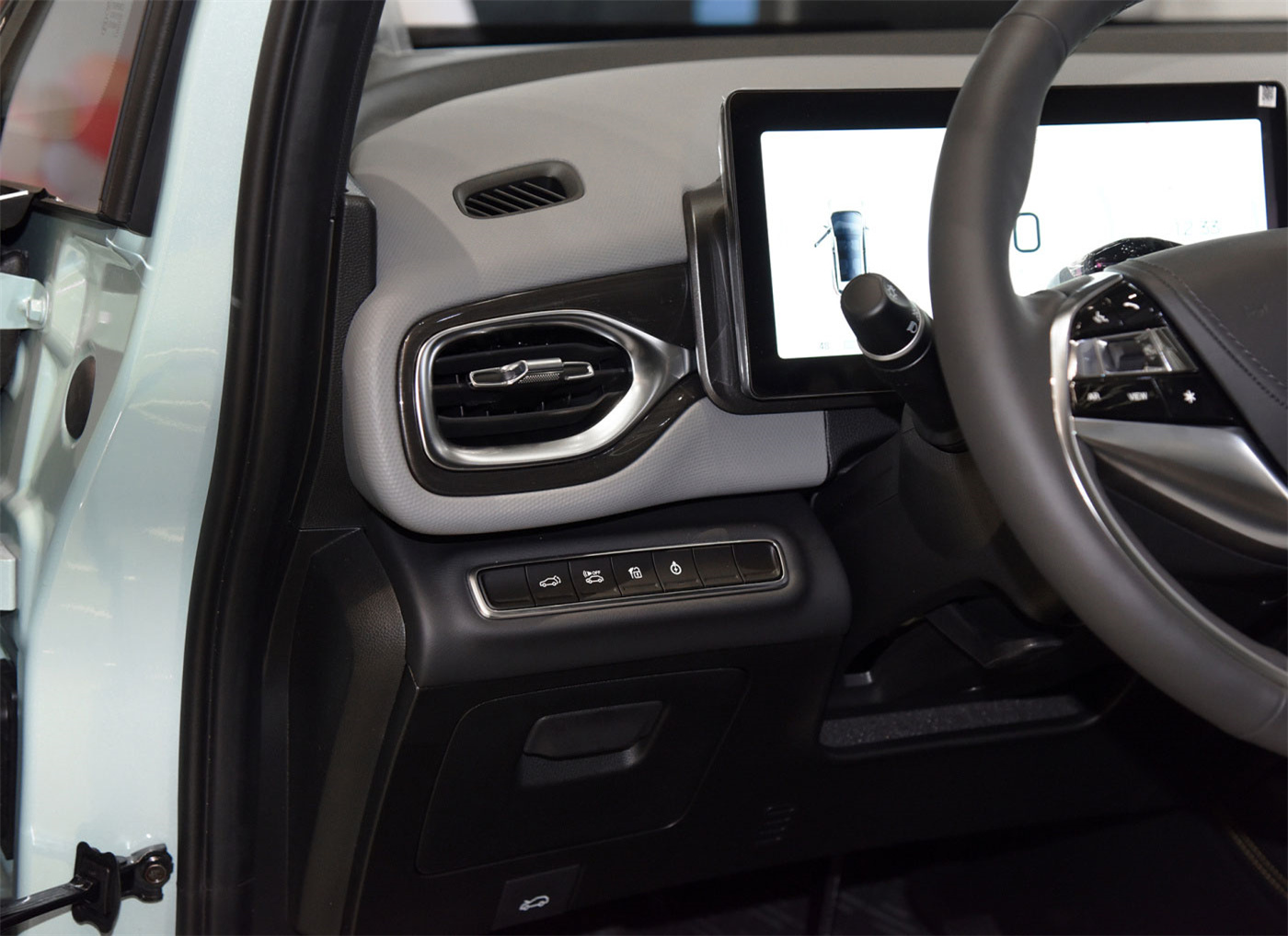

Internal configuration

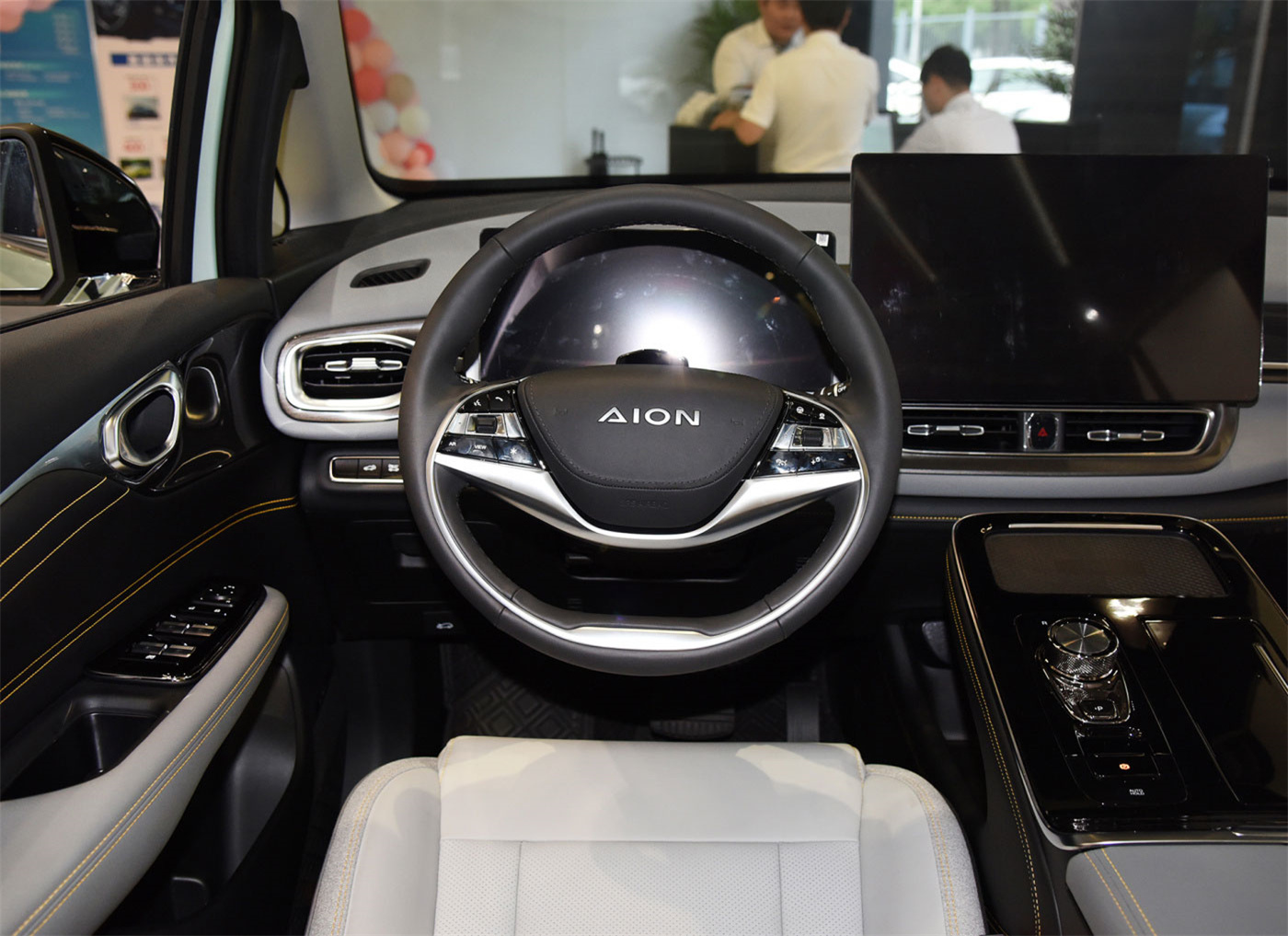

Steering wheel material Plastic
Steering wheel position adjustment Manual up and down + front and rear adjustment
Multifunction steering wheel YES
Trip computer display screen  Color

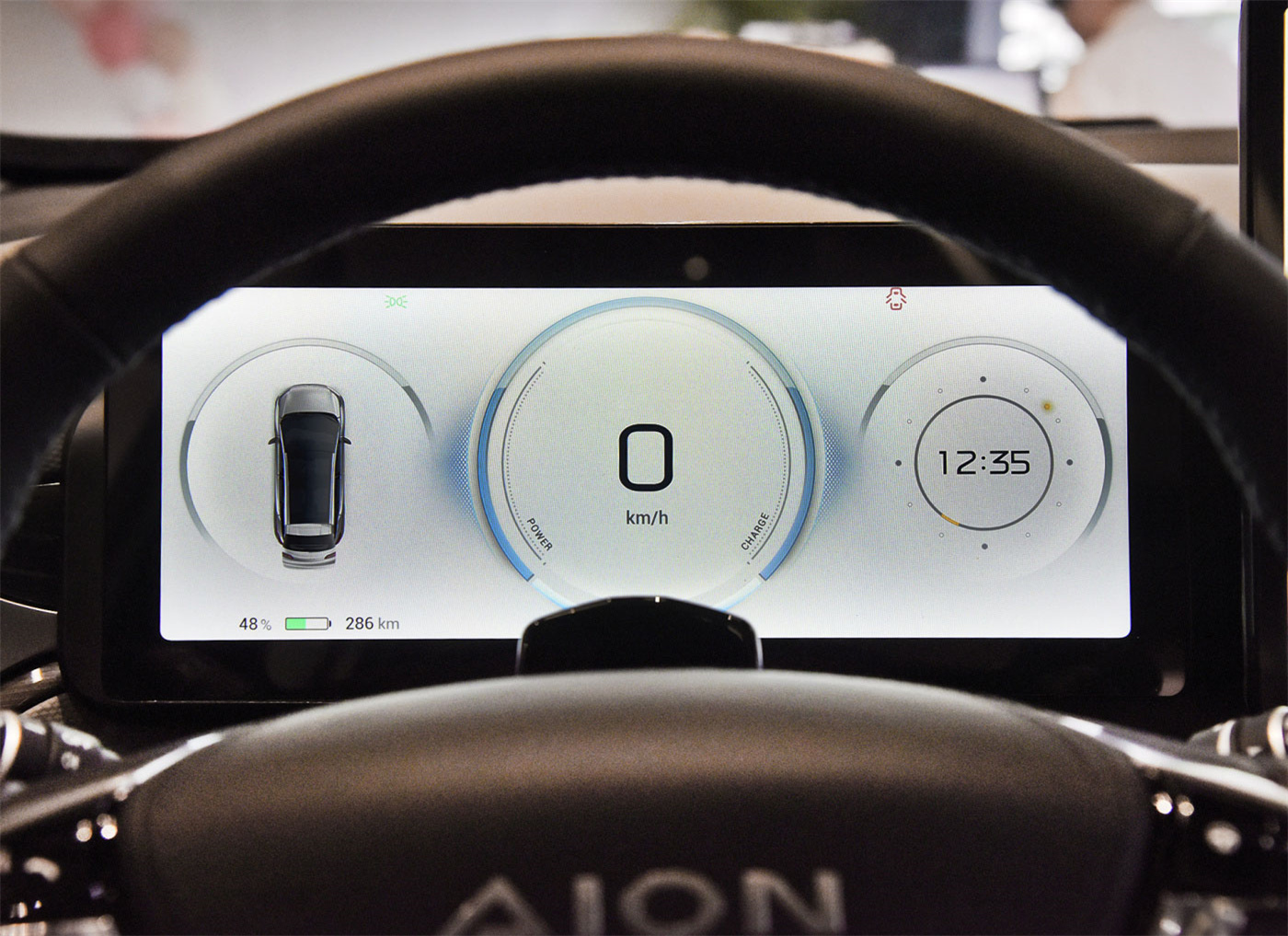

Full LCD Dashboard YES
LCD meter size (inch) 12.3

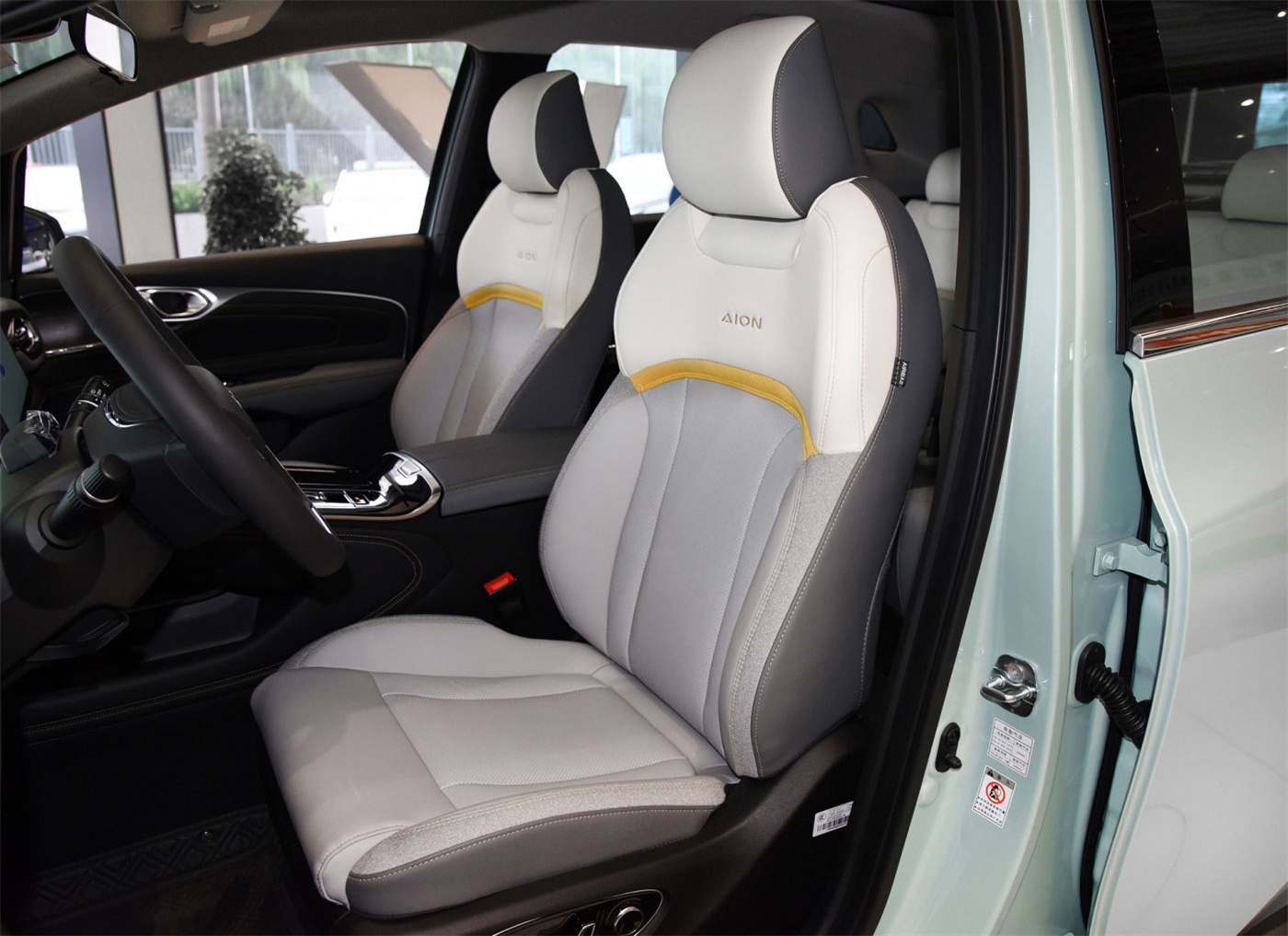

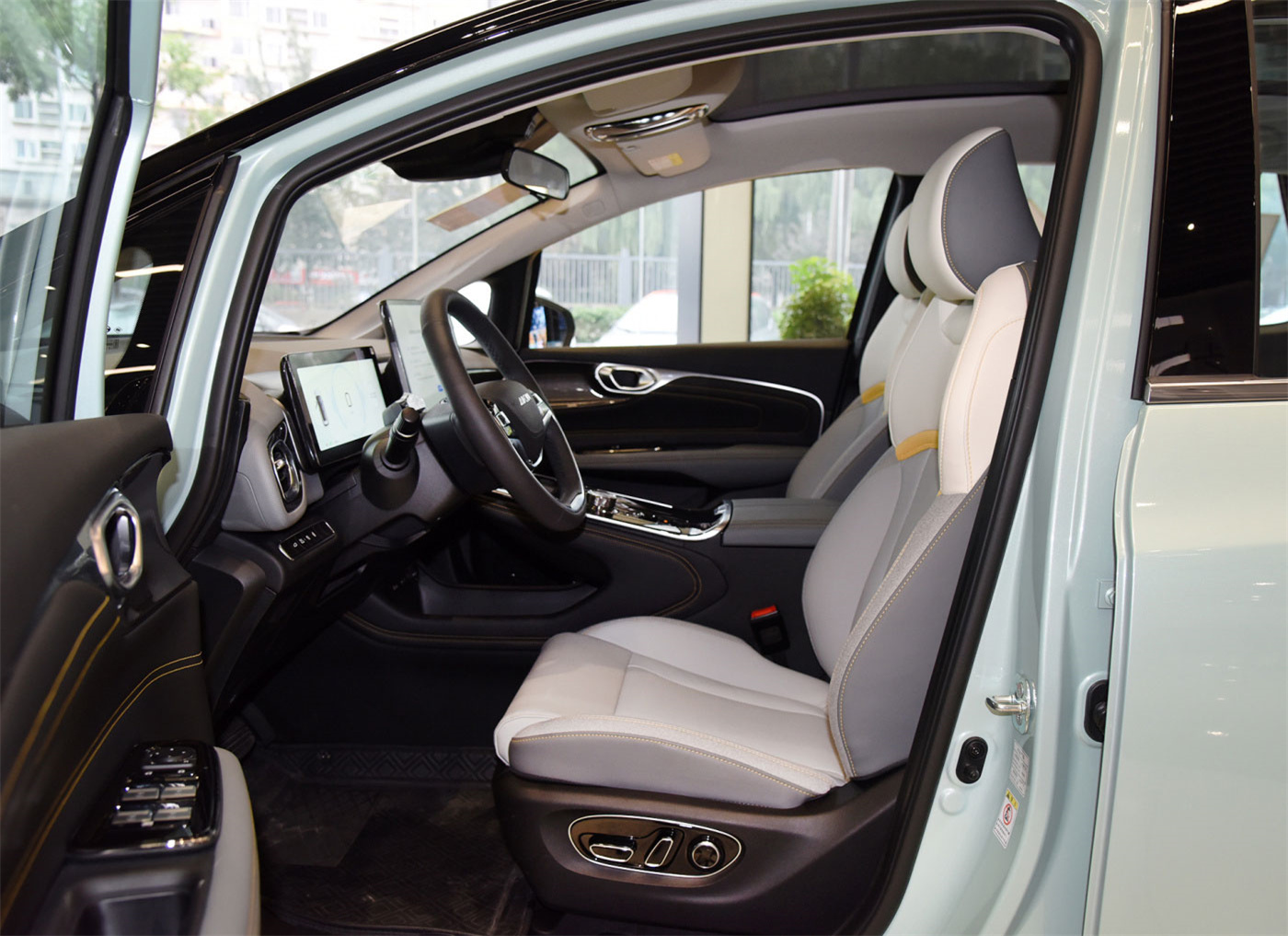

Seat configuration
Seat materials Imitation leather
Driver's seat adjustment Front and rear adjustment, backrest adjustment,height adjustment (2-way),lumbar support (2-way)
Co-pilot  seat adjustment Front and rear adjustment, backrest adjustment
Main/assistant seat electric adjustment Main Seat
Second row seat adjustment Backrest adjustment
Rear seats folded down Proportion down
Rear cup holder YES
Front/rear center armrest Front/Rear
Multimedia configuration
Central control color screen Touch LCD
Central control screen size (inch) 15.6
Satellite navigation system YES
Navigation traffic information display YES
Roadside assistance call YES
Bluetooth/Car Phone YES
Voice recognition control system Multimedia system, navigation, telephone, air conditioning
Internet of Vehicles YES
OTA upgrade YES
Multimedia/charging interface USB
Number of USB/Type-c ports 2 in front/1 in rear
Lighting configuration
Low beam light source LED
High beam light source LED
LED daytime running lights YES
Automatic headlights YES
Headlight height adjustable YES
Headlights turn off YES
Touch reading light YES
Glass/Rearview mirror
Front power windows YES
Rear power windows YES
Window one-button lift function Full car
Window anti-pinch function YES
Post audition feature Electric adjustment, electric folding, rearview mirror heating
Inside rearview mirror function Manual anti-dazzle
Interior vanity mirror YES
Rear wiper YES
Sensor wiper function Rain sensor
Air conditioner/refrigerator
Air conditioner temperature control method Automatic air conditioner
Rear air outlet YES
Temperature zone control YES
In-car PM2.5 filter YES

Appearance
