Product Information

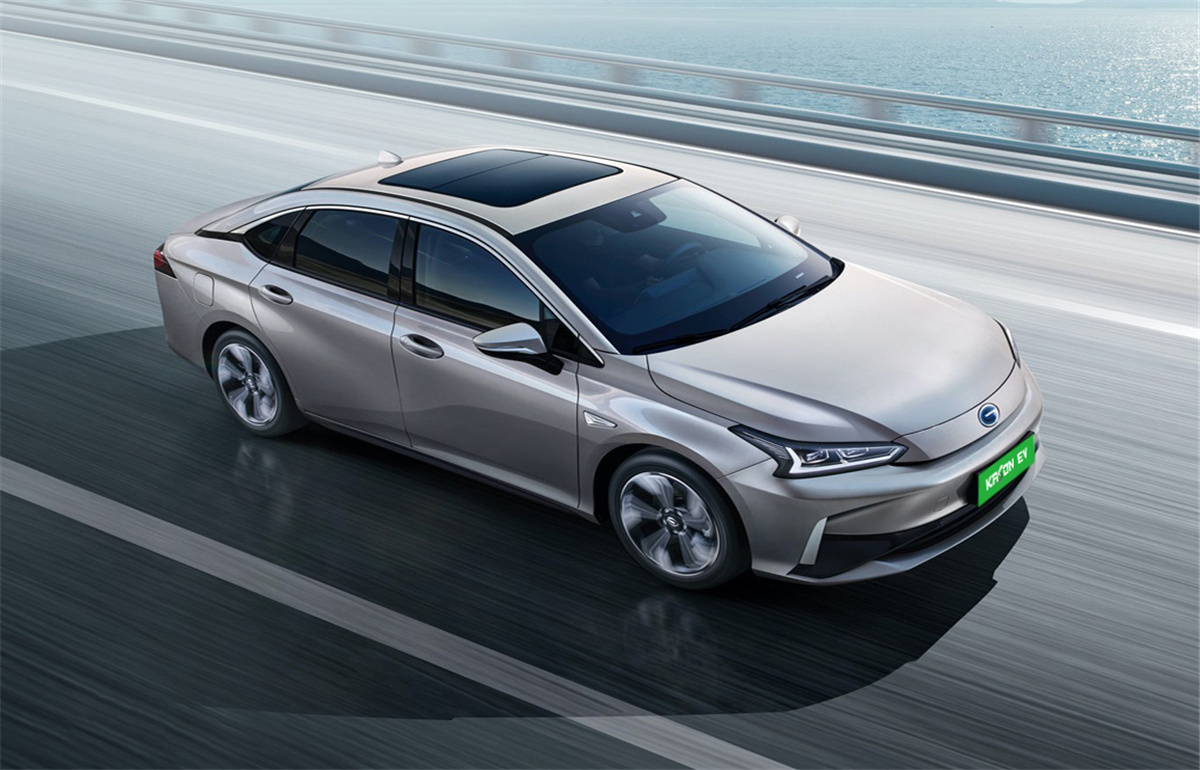

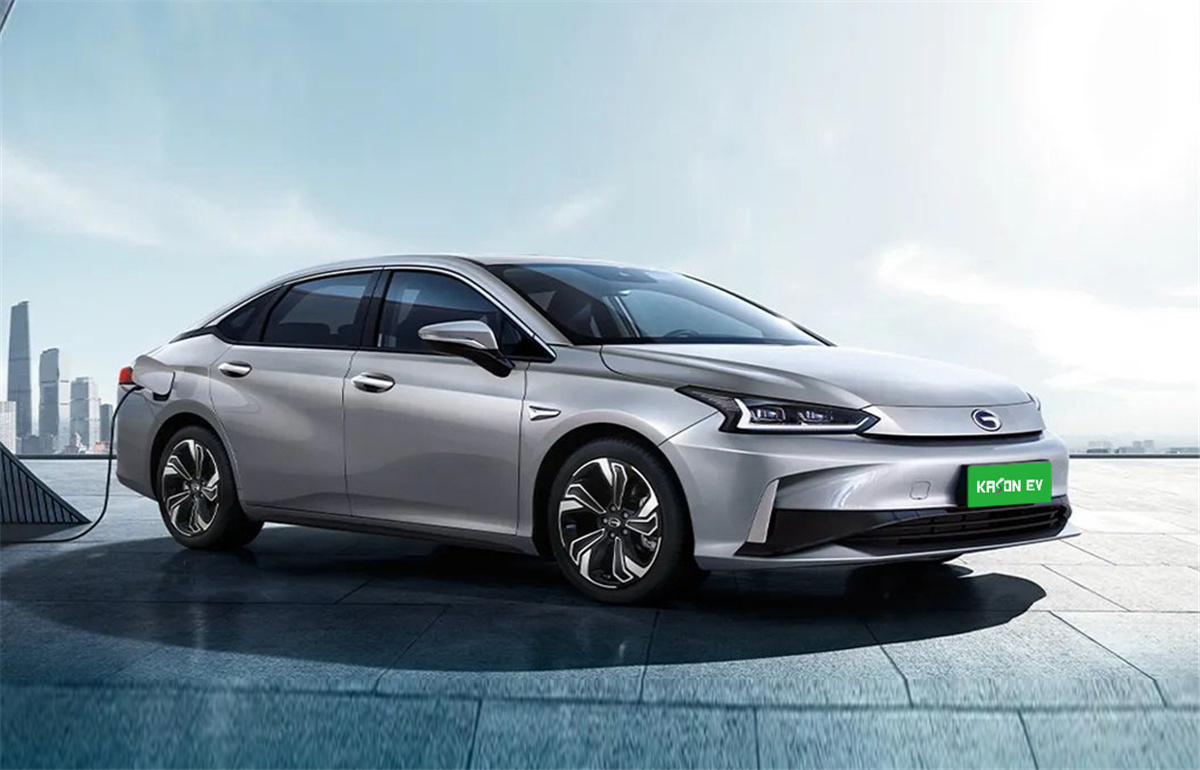

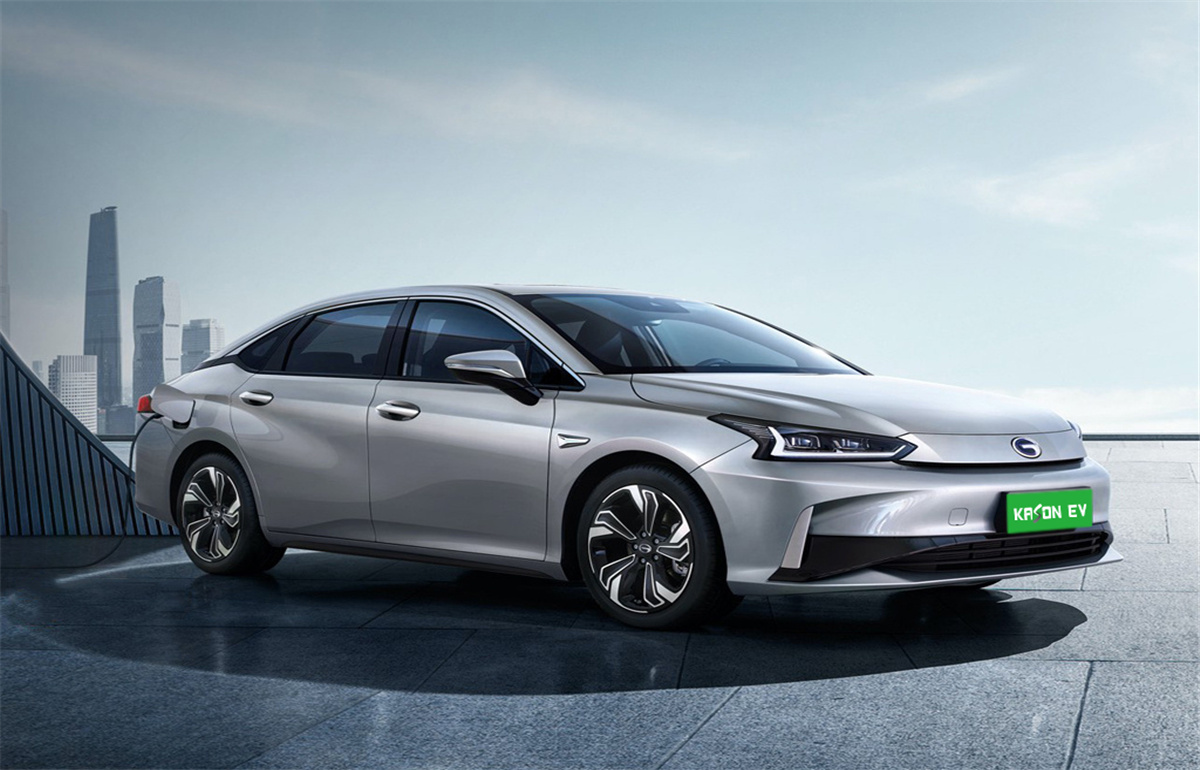

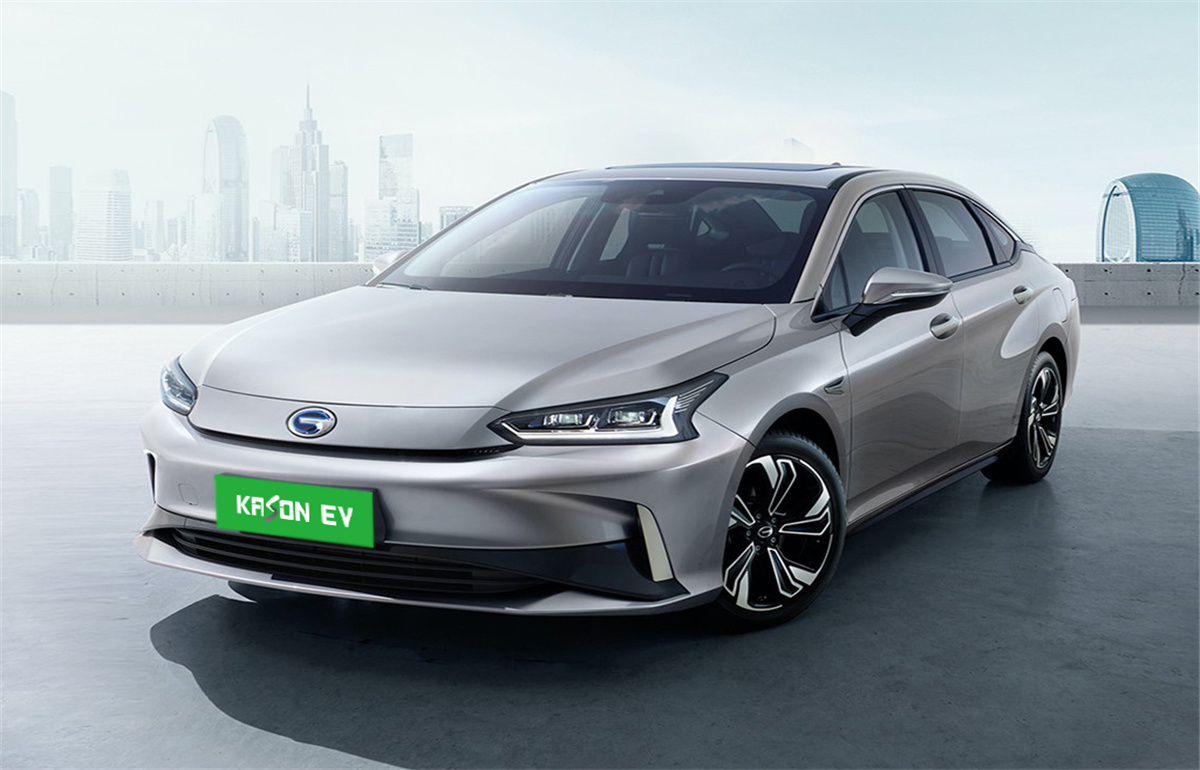

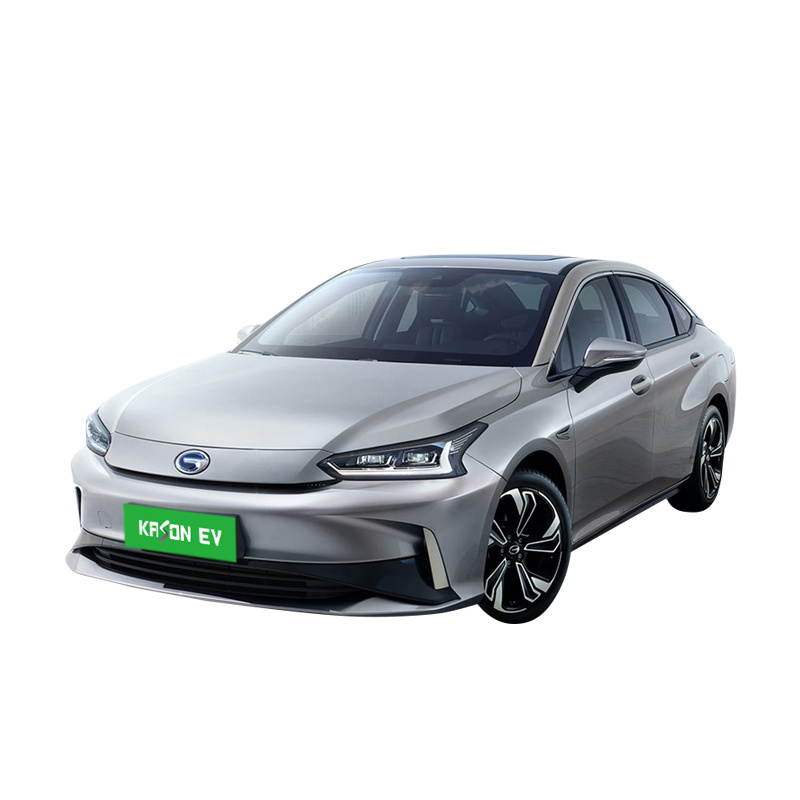

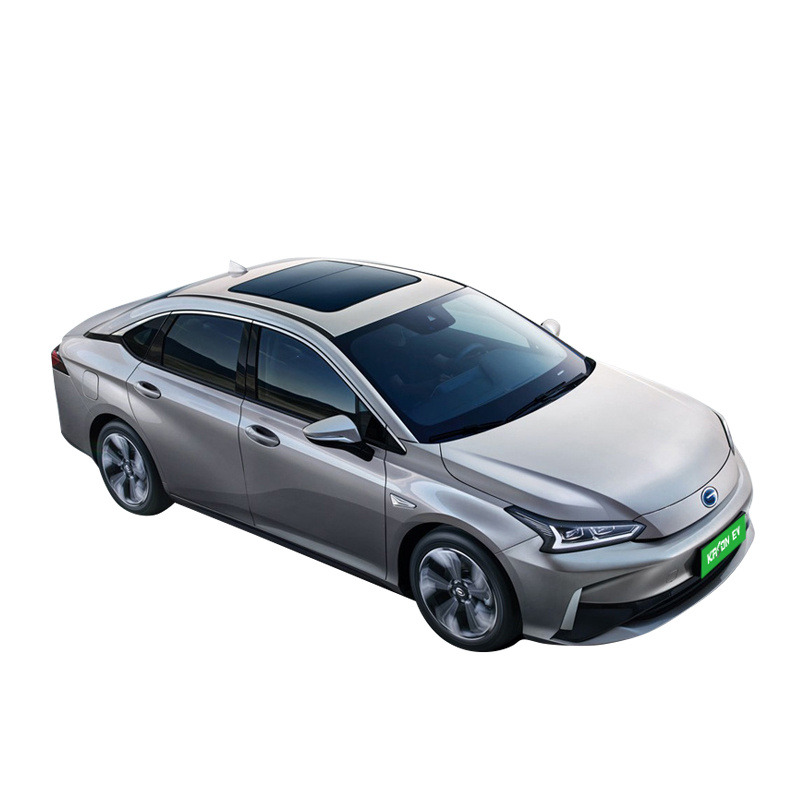

In terms of exterior design, as a pure electric car, the traditional intake grille design has been eliminated, and the headlights on both sides are raised towards the fender side. It is very spiritual, and the internal structure is similar to AionS. In addition, the fog lamps below the headlights are triangular in design.

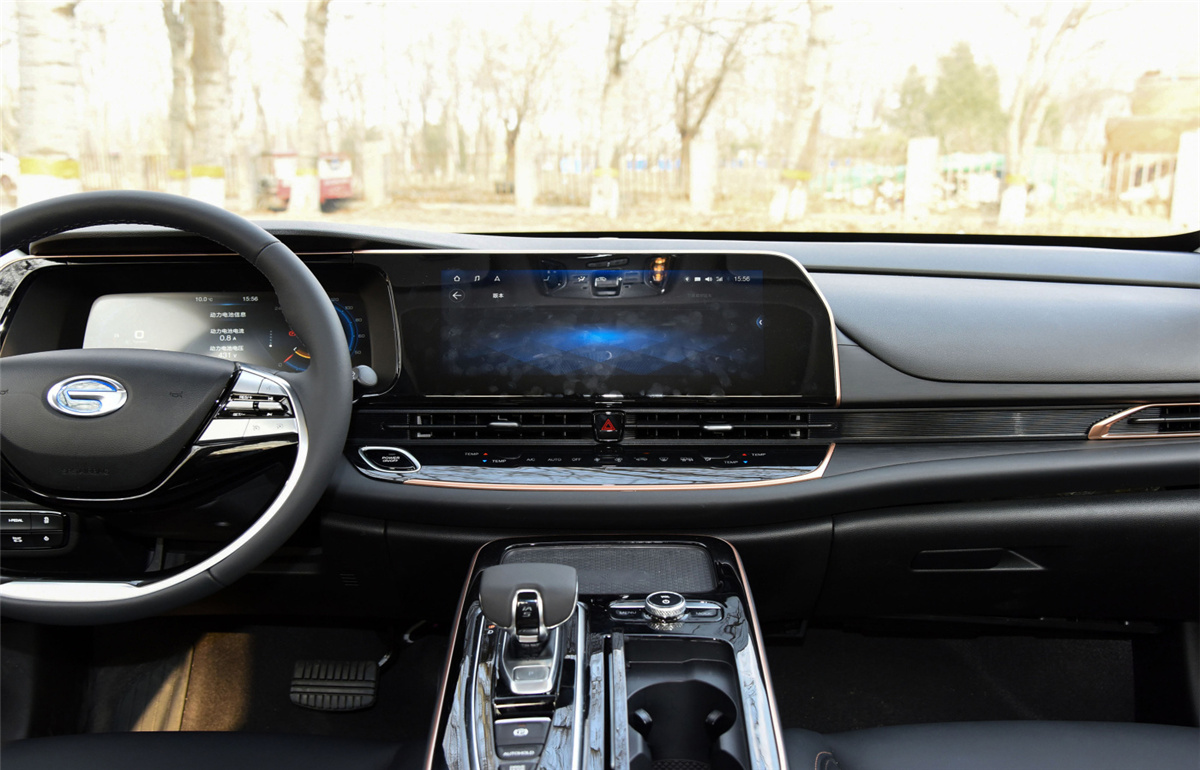

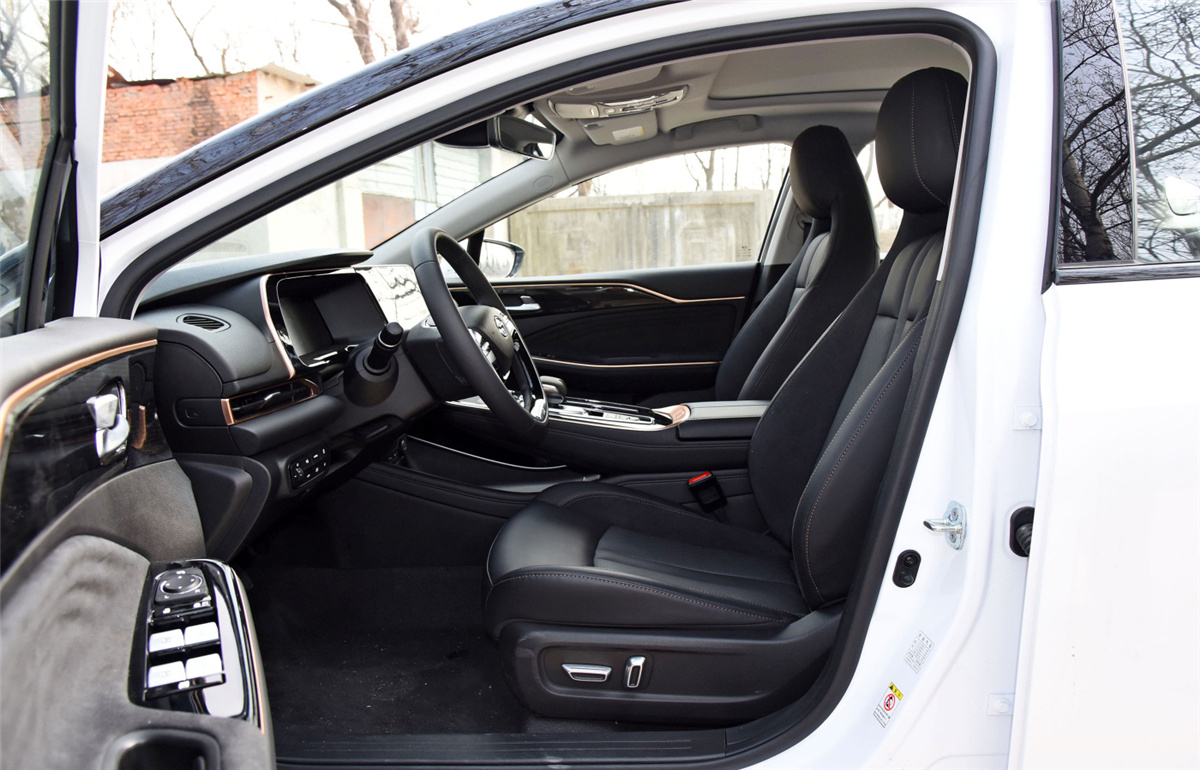

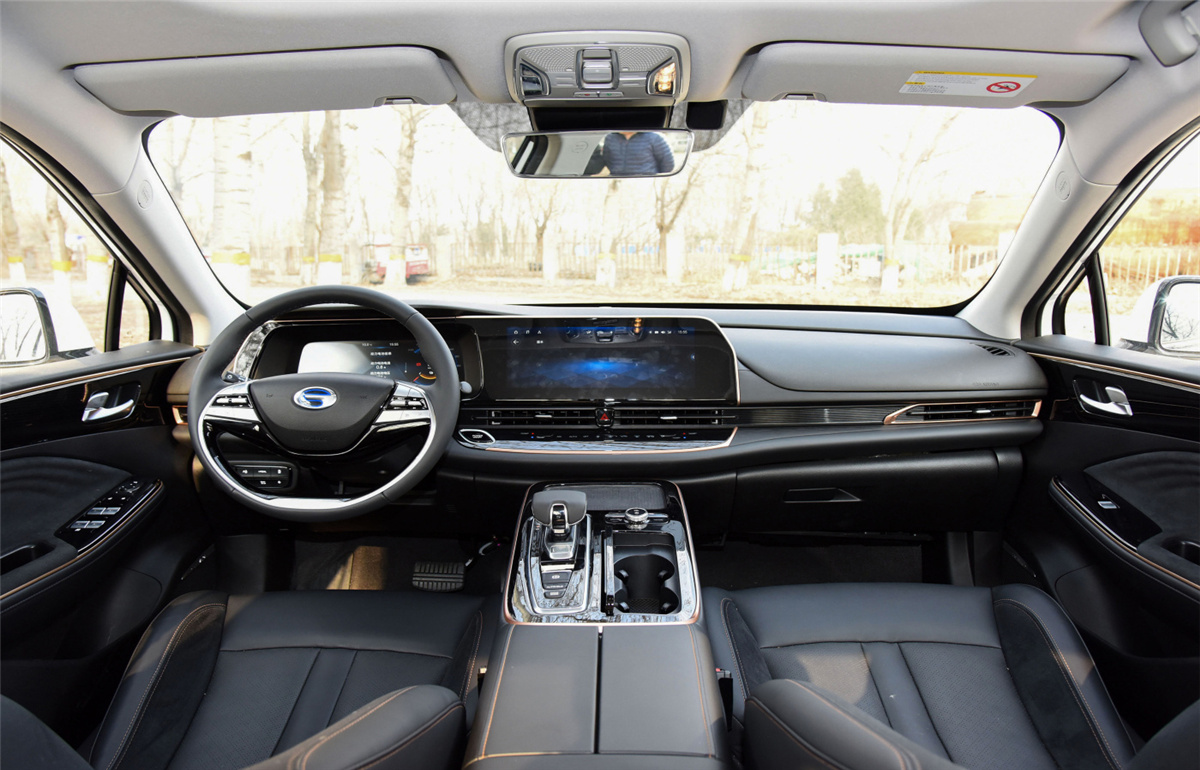

The combination of leather upholstery and black glossy panels keeps the dashboard from looking cheap. The hollow suspension shifter design provides a lot of storage space below and can be used for a variety of small debris, which is very practical. The central control screen measures 12.3 inches and responds smoothly. It supports voice wake-up and controls many functions in the car, adjusting air conditioning, sunroof, music and other functions are "one sentence".
Based on the new second-generation GEP pure electric platform, it uses a high-performance "three-in-one" electric drive system, with a maximum power of 135kW and a maximum torque of 300N·m. It is also equipped with ningde era's new generation NCM811 terum-lithium battery, and the new car is equipped with Ningde era's NCM811 battery pack, with a capacity of 58.8kwh and an energy density of 170Wh /kg. The NEDC has an official range of 510 km.
Product Specifications
| Brand | GUANGQI TOYOTA |
| Model | iA5 |
| Version | 2022 Model Leading Edition |
| Basic parameters | |
| Car model | Compact Car |
| Type of Energy | Pure electric |
| Time to Market | March.2022 |
| NEDC pure electric cruising range (KM) | 510 |

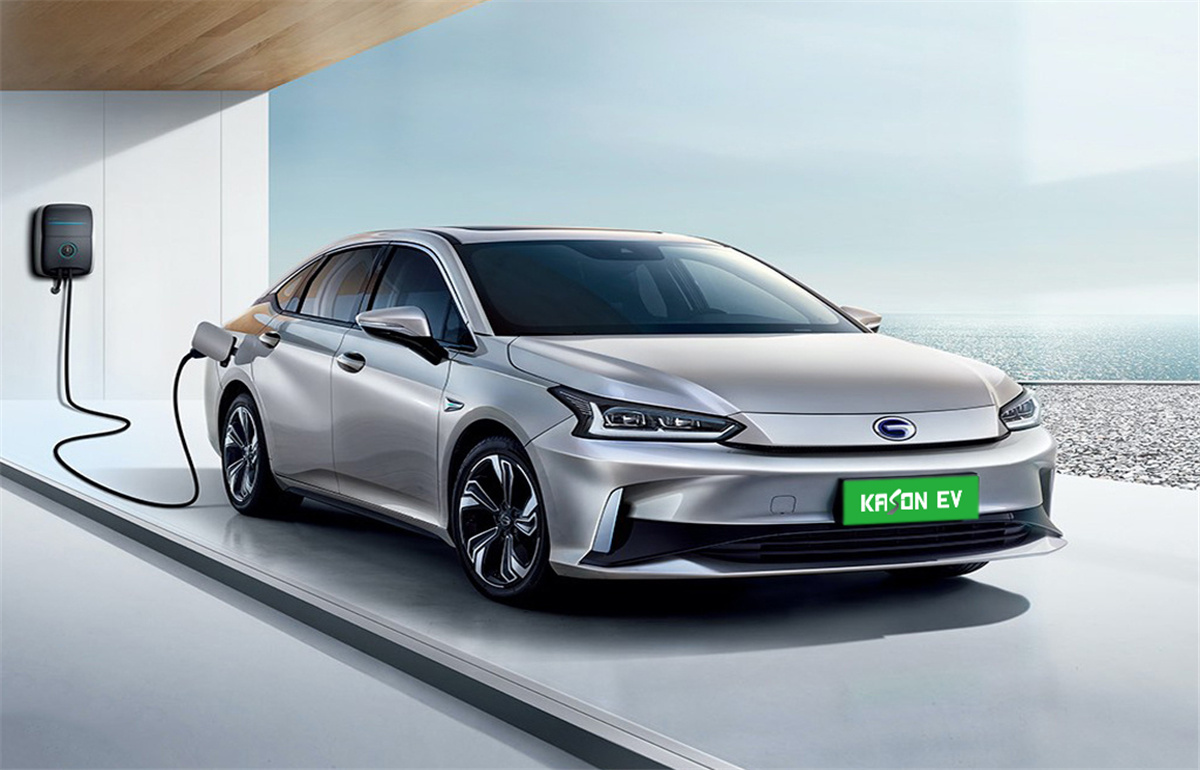

| Fast charging time[h] | 0.7 |
| Fast charge capacity [%] | 80 |
| Slow charging time[h] | 9.5 |
| Maximum power (KW) | 150 |
| Maximum torque [Nm] | 350 |
| Motor horsepower [Ps] | 204 |
| Length*width*height (mm) | 4818*1880*1530 |
| Body structure | 4-door 5-seat Sedan |
| Top Speed (KM/H) | 155 |
| Official 0-50km/h acceleration (s) | 3.5 |
| Car body | |
| Longth(mm) | 4818 |
| Width(mm) | 1880 |
| Higth(mm) | 1530 |
| Wheel base(mm) | 2750 |
| Body structure | Sedan |
| Number of doors | 4 |
| Number of seats | 5 |

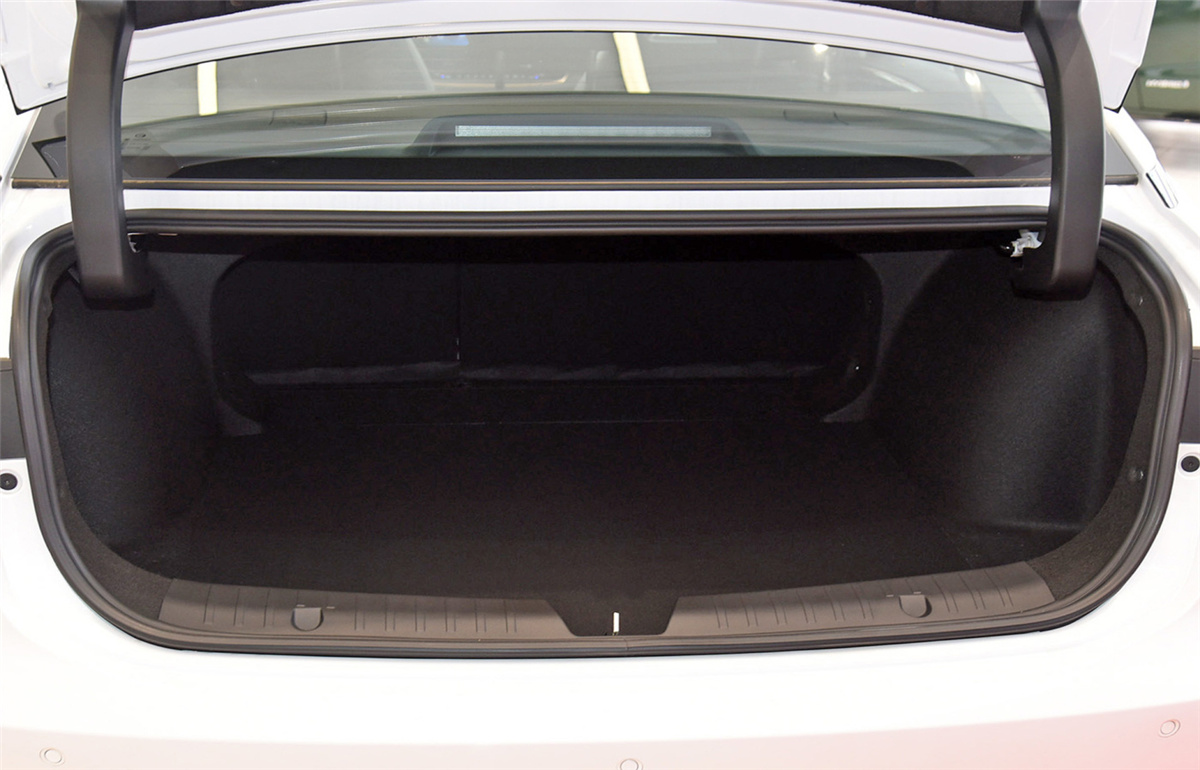

| Trunk volume (L) | 453 |
| Mass (kg) | 1600 |
| Electric motor | |
| Motor type | Permanent magnet synchronization |
| Total motor power (kw) | 150 |
| Total motor torque [Nm] | 350 |
| Front motor maximum power (kW) | 150 |
| Front motor maximum torque (Nm) | 350 |
| Number of drive motors | Single motor |
| Motor placement | Prepended |
| Battery Type | Ternary lithium battery |
| NEDC pure electric cruising range (KM) | 510 |
| Battery Power(kwh) | 58.8 |
| Electricity consumption per 100 kilometers (kWh/100km) | 13.1 |
| Gearbox | |
| Number of gears | 1 |
| Transmission type | Fixed Ratio Transmission |
| Short name | Electric vehicle single speed gearbox |
| Chassis Steer | |
| Form of drive | FF |
| Type of front suspension | McPherson independent suspension |
| Type of rear suspension | Torsion Beam Dependent Suspension |
| Boost type | Electric assist |
| Car body structure | Load bearing |
| Wheel braking | |
| Type of front brake | Ventilated Disc |
| Type of rear brake | Disc |
| Type of parking brake | Electric brake |
| Front Tire Specifications | 215/55 R17 |
| Rear tire specifications | 215/55 R17 |
| Cab Safety Information | |
| Primary driver airbag | YES |
| Co-pilot airbag | YES |
| Tire pressure monitoring function | Tire pressure display |
| Seat belt not fastened reminder | Front row |
| ISOFIX Child seat connector | YES |
| ABS anti-lock | YES |
| Brake force distribution (EBD/CBC, etc.) | YES |
| Brake Assist (EBA/BAS/BA, etc.) | YES |
| Traction Control (ASR/TCS/TRC, etc.) | YES |
| Body Stability Control (ESC/ESP/DSC, etc.) | YES |
| Assist/Control configuration | |
| Rear parking radar | YES |
| Driving assistance video | Reverse image |
| Cruise system | Cruise control |
| Driving mode switching | Sport/Economy/Standard Comfort |
| Automatic parking | YES |
| Hill assist | YES |
| Rim material | Aluminum alloy |
| Interior central lock | YES |
| Key type | Remote control key Bluetooth key |
| Keyless start system | YES |
| Keyless entry function | Front row |
| Remote start function | YES |
| Internal configuration | |
| Steering wheel material | Plastic |
| Steering wheel position adjustment | Manual up and down |

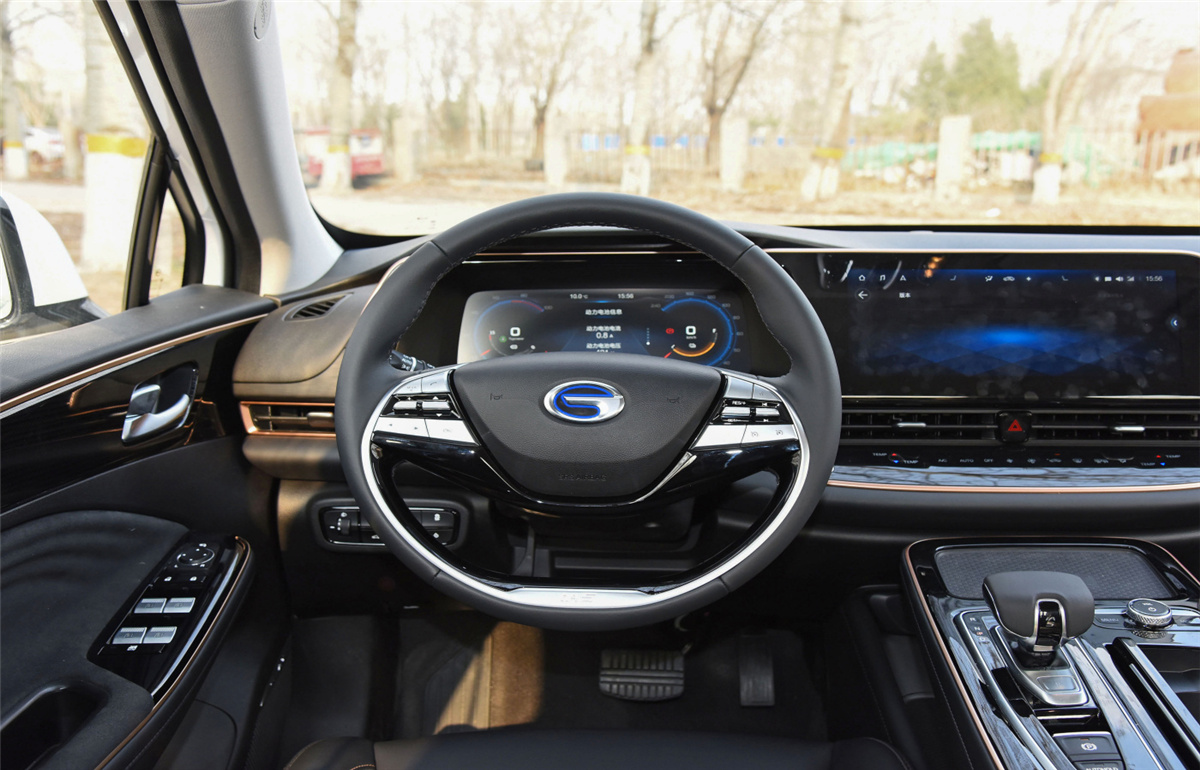

| Multifunction steering wheel | YES |
| Trip computer display screen | Color |
| LCD meter size (inch) | 3.5 |
| Seat configuration | |

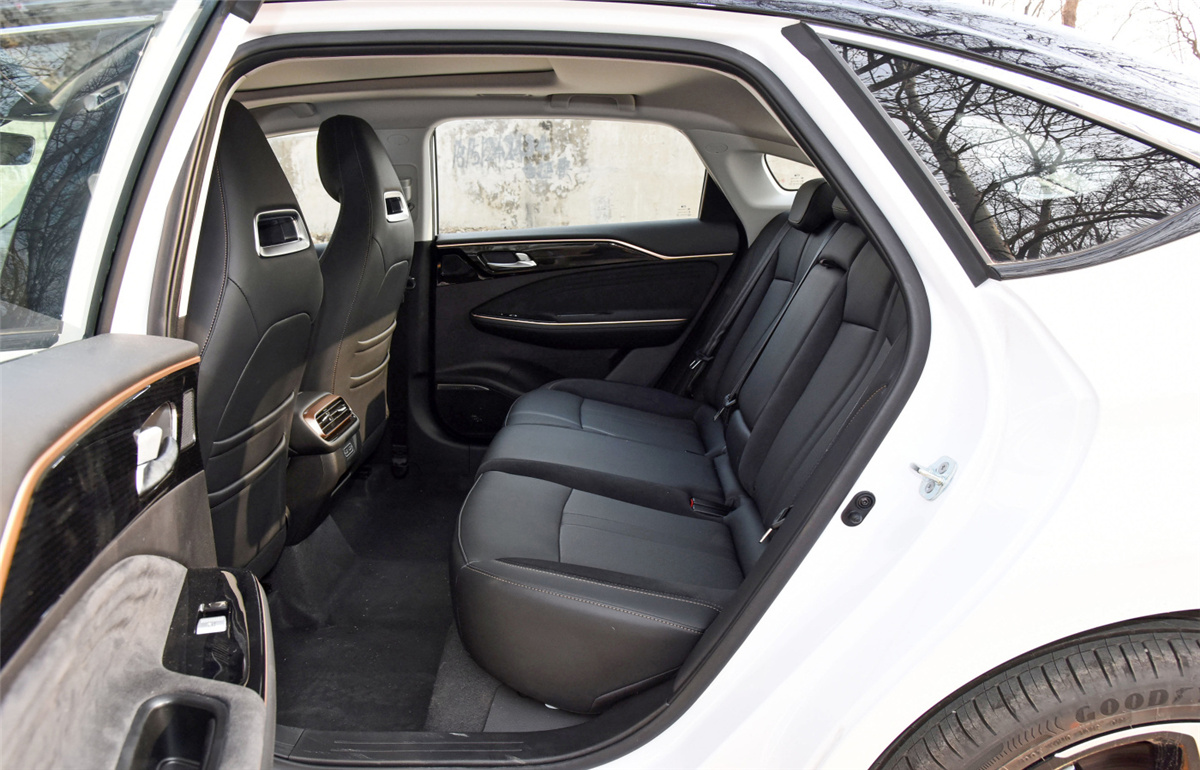

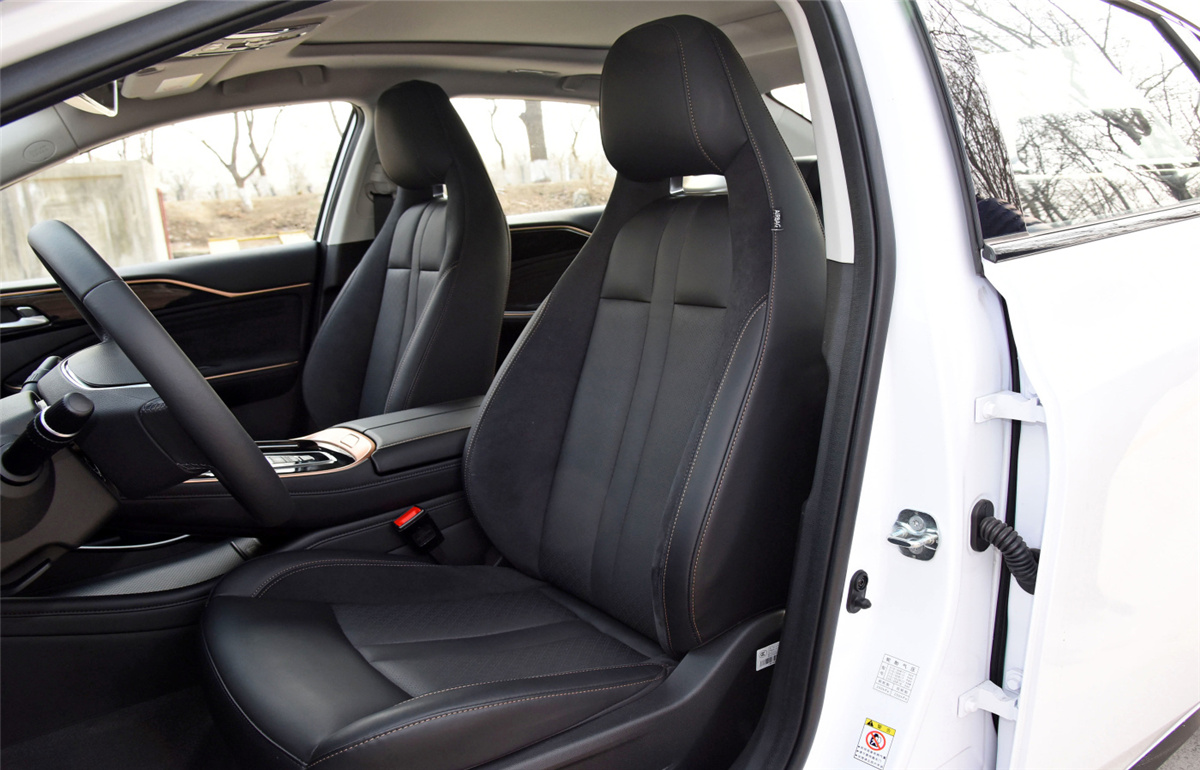

| Seat materials | Leather/fabric mix |
| Driver's seat adjustment | Front and rear adjustment, backrest adjustment, height adjustment (2-way) |
| Co-pilot seat adjustment | Front and rear adjustment, backrest adjustment |
| Rear seats folded down | Proportion down |
| Rear cup holder | YES |
| Front/rear center armrest | Front/Rear |
| Multimedia configuration | |
| Central control color screen | Touch OLED |
| Central control screen size (inch) | 12.3 |
| Satellite navigation system | YES |
| Navigation traffic information display | YES |
| Bluetooth/Car Phone | YES |
| Mobile phone interconnection/mapping | Support CarPlay |
| Voice recognition control system | Multimedia system, navigation, telephone, air conditioning |
| Internet of Vehicles | YES |
| OTA upgrade | YES |
| Multimedia/charging interface | USB |
| Number of USB/Type-c ports | 3 in front/2 in rear |
| Number of speakers (pcs) | 6 |
| Lighting configuration | |
| Low beam light source | LED |
| High beam light source | LED |
| LED daytime running lights | YES |
| Automatic headlights | YES |
| Headlight height adjustable | YES |
| Headlights turn off | YES |
| Glass/Rearview mirror | |
| Front power windows | YES |
| Rear power windows | YES |
| Window one-button lift function | Driver's seat |
| Window anti-pinch function | YES |
| Post audition feature | Electric adjustment, rearview mirror heating |
| Inside rearview mirror function | Automatic anti-dazzle |
| Interior vanity mirror | Driver's seat Co-pilot |
| Sensor wiper function | Rain sensor |
| Air conditioner/refrigerator | |
| Air conditioner temperature control method | Automatic air conditioner |
| Rear air outlet | YES |
| Temperature zone control | YES |
| In-car PM2.5 filter | YES |

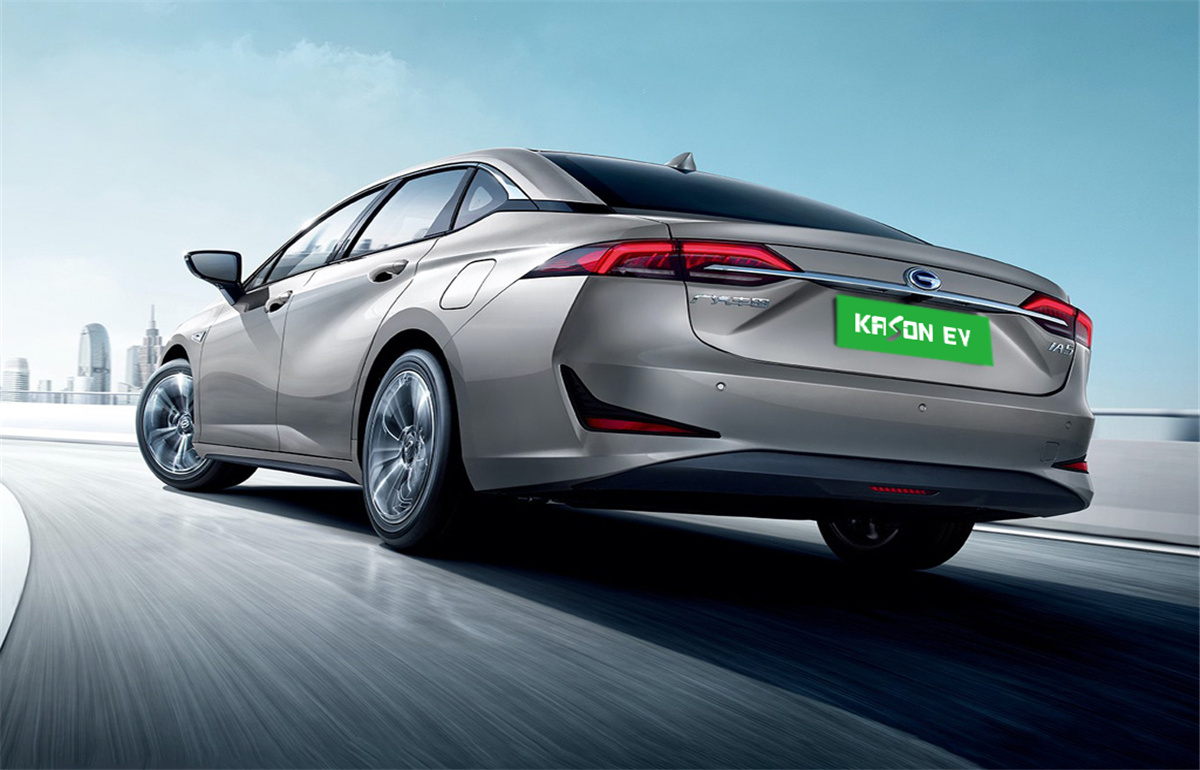

Appearance
